Connect the emitter and receiver units directly to the control board terminals using 18-gauge stranded copper cables. Maintain a separation of at least 6 inches from high-current lines to prevent interference.
Check the polarity of each line carefully before securing connectors. Typically, the positive lead is marked with a red stripe while the negative is solid black or white. Incorrect polarity can prevent the beam from transmitting signals properly.
Align the transmitters and receivers at a height of 6 inches above the ground and ensure they face each other without obstructions. Even minor misalignment of 1–2 degrees can trigger false fault signals and prevent the system from functioning.
Use shielded cables when running lines over long distances to reduce electromagnetic interference. Keep cable runs under 50 feet whenever possible, and if longer runs are required, add a ferrite choke at the control board end.
Secure all connectors with weatherproof boots or heat-shrink tubing to protect against moisture and corrosion. Regular inspection of connections every six months ensures consistent operation and avoids unexpected malfunctions.
Garage Door Safety Sensor Connection Guide
Connect the emitter and receiver directly to the control unit terminals using 18-gauge stranded copper conductors. Ensure the positive and negative leads match the board markings to prevent signal failures.
Mount the units on opposite sides of the opening at a height of 6 inches from the floor. Check alignment with a level to avoid misfires or false obstruction signals.
Maintain at least 6 inches of separation from high-voltage lines to reduce electrical interference. Avoid running lines parallel to power cords whenever possible.
Use weatherproof connectors or heat-shrink tubing at every joint to protect against moisture and corrosion. Inspect these connections periodically to maintain reliable operation.
Test the alignment by passing an object through the beam after connecting. If the control system stops or triggers an alert, adjust the units until the beam is unobstructed and stable.
Keep the cable runs under 50 feet or install a ferrite choke on the far end if longer distances are unavoidable. Shielded lines help prevent interference from nearby electronics.
Secure all lines along the frame with insulated clips to prevent movement or accidental disconnection. Avoid sharp bends or pinched areas that can damage conductors over time.
Locating Sensor Terminals and Power Sources

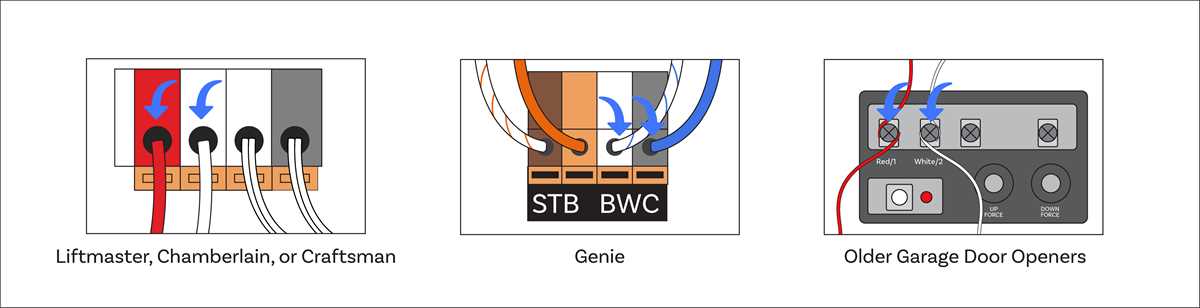

Identify the control board first: terminals for the infrared beams are usually labeled “RX” and “TX” or “IN” and “OUT”. Check the manual for exact polarity–connecting wires incorrectly can trigger constant activation. Use a multimeter to confirm voltage presence at each pin; most units operate on 12-24V AC/DC.
Trace the low-voltage cable along the track or frame. Commonly, the positive lead attaches to the transmitter, while the negative goes to the receiver. If wires are bundled, separate them carefully to avoid short circuits. Secure connections with screw terminals rather than twisting or taping bare wire ends.
Power Access Points
- Locate the main opener’s power terminal block; it typically sits near the motor assembly.
- Check for a dedicated 24V transformer or DC output module supplying the beam pair.
- Confirm that any inline fuses are rated for 0.5–1A to prevent overload damage.
- Label each wire with colored tape for easy reconnection after maintenance or replacement.
Test functionality after connecting: the indicator LED on the receiver should light consistently. Adjust alignment before securing housings to ensure uninterrupted transmission along the path. Avoid routing near high-current lines to prevent interference.
