To replace or maintain components of a double-panel entry system, begin by thoroughly understanding the various elements that make up the structure. Identifying each section helps pinpoint issues quickly, reducing the time spent troubleshooting. A typical setup includes handles, hinges, seals, and locking mechanisms. Knowing these pieces will streamline the process when repairs or replacements are necessary.
Start by focusing on the locking mechanism. If the system isn’t closing properly, the latch or deadbolt may need adjustment. Make sure to inspect hinges for wear as they often wear out with frequent use. Checking the weatherstripping can prevent energy loss, ensuring better insulation and preventing drafts. Understanding how each of these components interacts will guide you in fixing or replacing specific parts without unnecessary disassembly.
For easier identification, consult a visual map of the unit. This can help you align each component’s function and quickly find what needs attention. Whether you’re dealing with a broken lock or misaligned panels, understanding the anatomy of the entryway ensures a smooth repair process and long-term functionality.

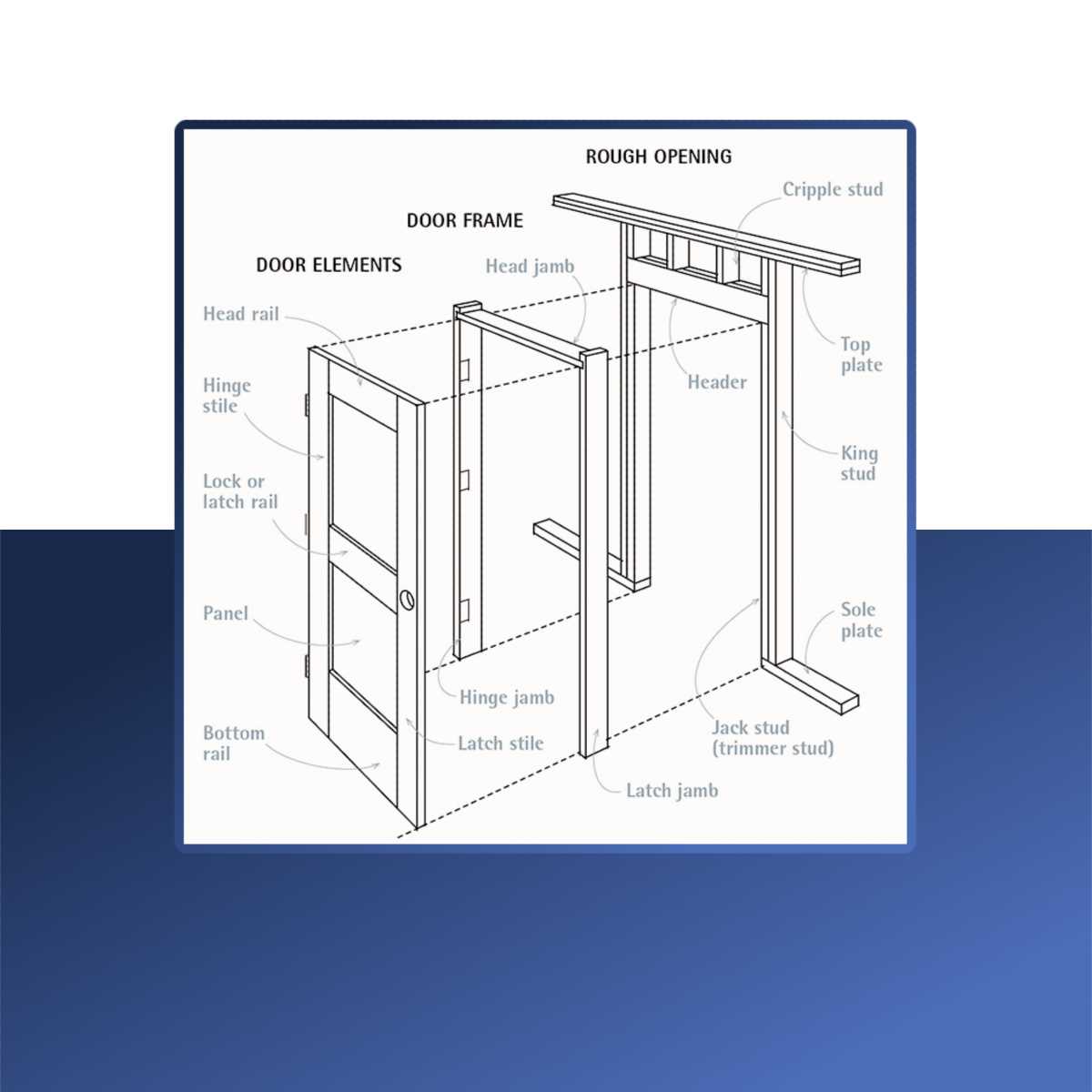

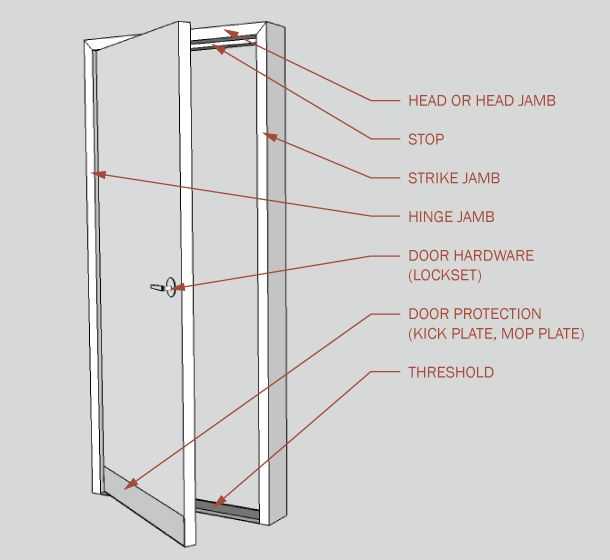

French Door Parts Diagram
For accurate maintenance or repair, start by identifying each key element of the entryway. Focus on the components such as the handles, locks, hinges, and weatherstripping. Understanding their roles and placement is crucial for smooth operation and durability. For example, check the locking system to ensure it is secure and operates smoothly. Misalignment or wear can cause problems with closing and locking mechanisms.
Next, inspect the hinges for any signs of rust, damage, or wear. Over time, hinges can loosen or break, affecting the door’s function. A tight, properly lubricated hinge is necessary for smooth movement. Weatherstripping should be checked for cracks or gaps that may allow drafts, reducing insulation effectiveness.
Additionally, it is important to be familiar with the frame and panel structure. Knowing how the panels fit within the frame helps in understanding the weight distribution and structural integrity. Pay attention to the seals between the frame and panels to prevent air leaks or water damage.
How to Identify Common Components in French Doors
Start by inspecting the handle set, which includes the exterior and interior levers, locks, and latch mechanisms. Ensure the locking system functions properly by testing the handles and latch for smooth operation. If the lock is not securing the panels correctly, it may need adjustment or replacement.
Next, check the hinges on both the side panels. These should be firmly attached to both the frame and the panels. Look for any rust, wear, or looseness. A stiff or squeaky hinge indicates the need for lubrication or possible replacement. Keep the hinges clean and well-maintained to ensure easy opening and closing of the panels.
Weatherstripping around the edges of the frame is another key element. Inspect the rubber or foam seal for cracks or tears. Damaged weatherstripping can lead to drafts and moisture issues. Replace it to maintain energy efficiency and keep the space sealed from external elements.
Finally, assess the frame structure. Ensure the panels are aligned properly within the frame. Any misalignment can cause difficulty when closing the panels or result in drafts. Tighten the frame’s screws or fasteners if they appear loose to maintain the structural integrity.
Step-by-Step Instructions for Replacing Faulty French Door Parts
1. First, gather the necessary tools: screwdriver, wrench, pliers, replacement components, and a level. Ensure all safety measures are in place, such as wearing gloves to protect your hands.
2. Begin by removing the damaged component. If replacing a handle set, unscrew the screws securing both the exterior and interior handles. Keep the screws safe for reuse if the new set does not come with replacements.
3. For hinge replacements, start by loosening the screws holding the hinges to the frame and the panels. Support the panel with a block or assistant to prevent it from falling. Once the hinges are removed, replace them with new ones, ensuring they are aligned properly before tightening the screws.
4. If the locking mechanism is faulty, remove the old latch or lock assembly by unscrewing the mounting hardware. Install the new assembly by aligning it with the existing holes. Test the lock several times to ensure smooth operation.
5. Weatherstripping replacement requires peeling off the old, damaged strip from the frame. Clean the surface to ensure proper adhesion of the new strip. Measure the length needed, cut to size, and press the new weatherstrip firmly into place along the edges of the frame.
6. Lastly, check the alignment of the panels. If the panels are misaligned, adjust the frame or the panel hinges as necessary. Use a level to ensure the panels are even and aligned for proper closure. Tighten all screws securely to avoid future misalignment.
