Check the connector pinout before installing or replacing a car audio head unit. Most vehicles from this manufacturer use standardized color codes that identify power supply, ground, illumination, and speaker outputs. Correct identification prevents damage to the audio system and avoids short circuits inside the dashboard harness.
The main power lead normally carries 12 V constant voltage used for memory functions, while the accessory line supplies voltage only when the ignition key is turned. Ground is typically connected through a black conductor attached to the vehicle chassis. Reversing these lines can cause the head unit to reset every time the ignition is turned off.
Speaker connections are arranged in pairs. Each speaker uses two conductors, one positive and one negative. Typical color patterns include combinations such as white with stripe, green with stripe, purple with stripe, and gray with stripe. The striped wire usually represents the negative lead.
Additional conductors may control illumination, power antenna activation, or amplifier turn-on signals. The illumination line receives voltage when the vehicle lights are activated, allowing the radio display brightness to match dashboard lighting. Identifying this conductor helps maintain proper display brightness during night driving.

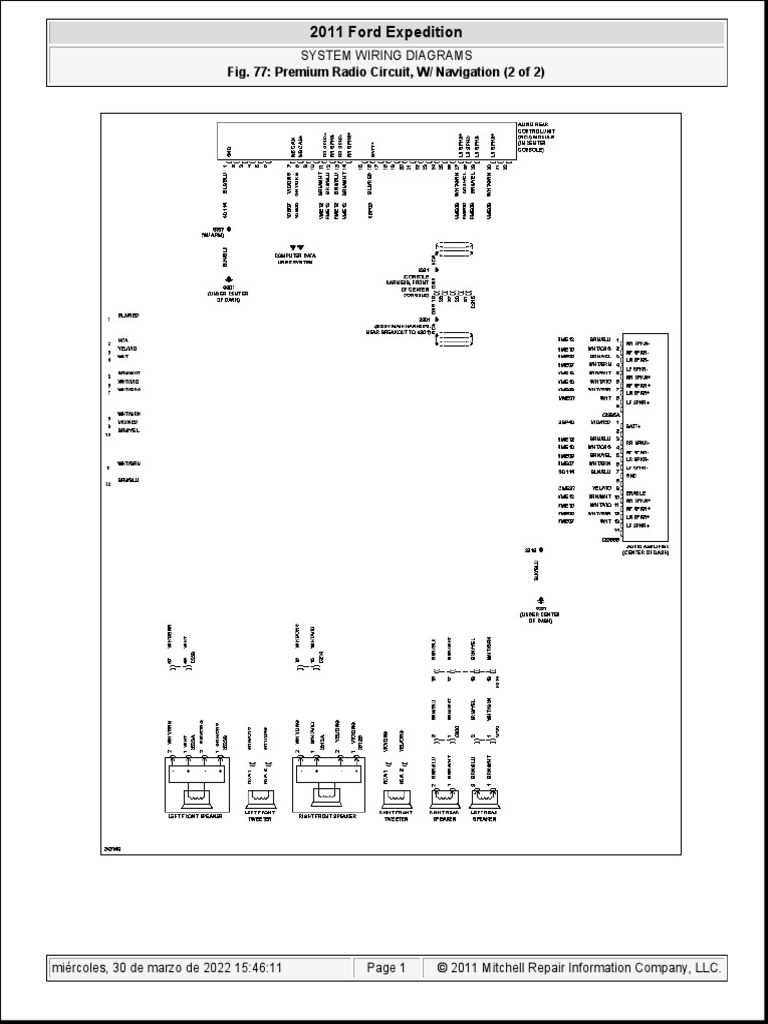

Ford Stereo Wiring Diagram
Match each conductor from the vehicle harness to the correct head unit terminal before powering the audio system. Most vehicles from this manufacturer use a 16-pin connector where yellow carries constant 12 V battery supply, red connects to the ignition accessory line, and black attaches to chassis ground. Blue or blue-white typically activates an external amplifier or power antenna. Incorrect connection between constant power and accessory lines causes memory loss for radio presets and clock settings.

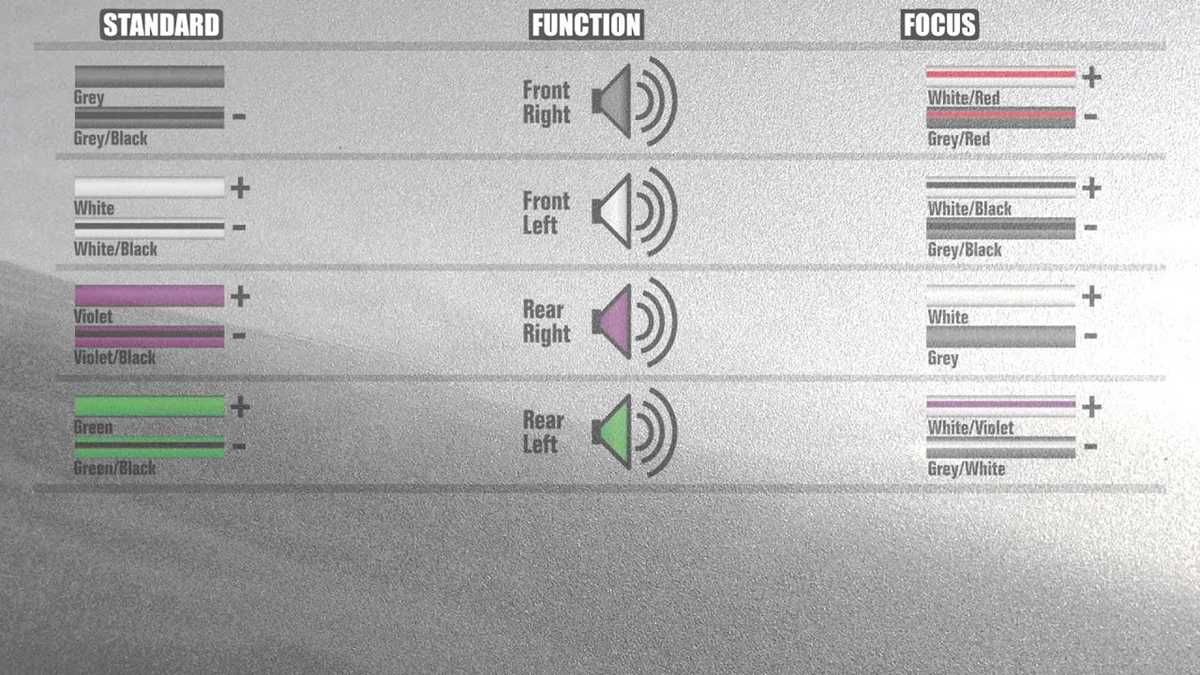

Speaker outputs follow paired color groups where each channel uses positive and negative conductors. Typical pairs include white and white with black stripe for the front left speaker, gray and gray with black stripe for the front right channel, green and green with black stripe for the rear left, and purple with purple-black stripe for the rear right. Each pair carries low-voltage amplified audio signals from the head unit. Maintain polarity during installation; reversing polarity weakens bass response and shifts sound staging inside the cabin.
Ford Radio Connector Pinout and Standard Wire Color Identification

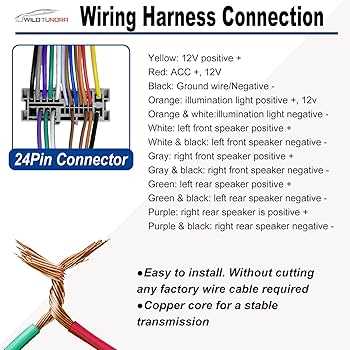

Verify the pin layout on the factory audio harness before attaching a replacement head unit. Many vehicles from this American brand use a rectangular 16-terminal plug where each position delivers power, speaker signal, or control voltage. Identify the conductors with a multimeter and compare them with the common color layout used in these cars.
- Yellow – constant 12-volt battery feed that keeps station memory and clock data.
- Red – accessory line that receives voltage only after the ignition key turns.
- Black – chassis ground connected to the vehicle body.
- Blue or blue-white – trigger lead for external amplifier or power antenna.
- White pair – front left speaker, solid color for positive, black stripe for negative.
- Gray pair – front right audio channel.
- Green pair – rear left speaker output.
- Purple pair – rear right audio output.
