Use the factory pinout map for the dashboard audio receiver before connecting any aftermarket media unit. The original harness inside this well-known American mid-size SUV produced since 1990 follows a color-coded cable system where yellow carries constant 12 V power, red supplies ignition-switched voltage, and black serves as chassis ground. Matching these conductors with the new head unit harness prevents blown fuses and eliminates random power loss during engine start.

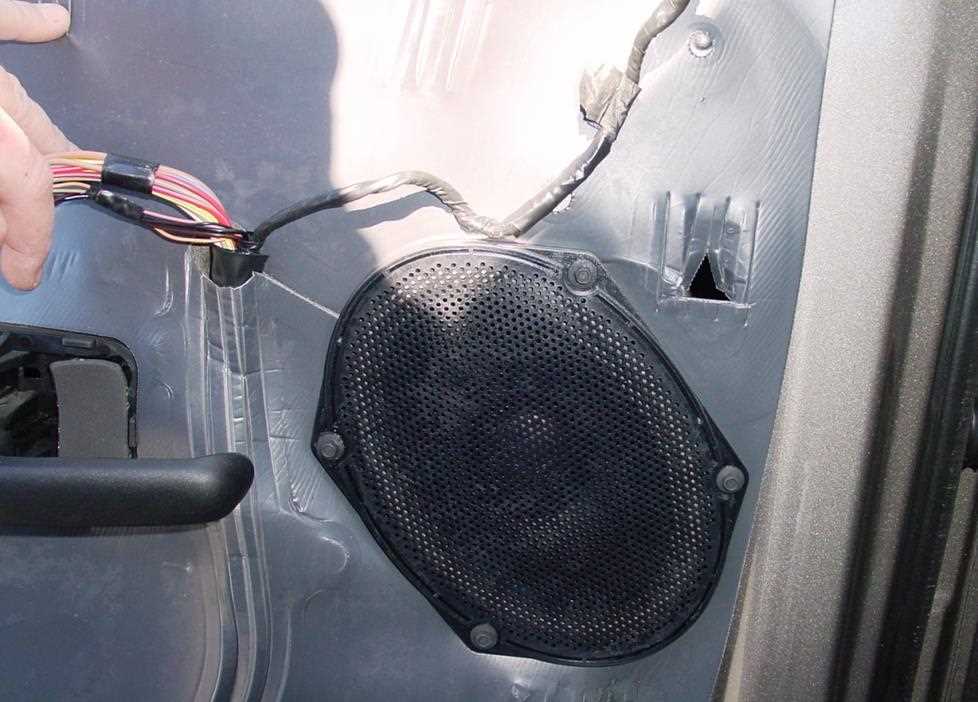

Speaker channels are arranged in four pairs routed from the console cavity to the doors and rear panels. The front left channel commonly uses light green for positive and tan for negative polarity. The front right channel often relies on white with light green stripe as positive and dark green with orange stripe as negative. Rear outputs typically follow brown-based color pairs. Checking polarity with a small 1.5 V battery helps confirm cone direction before final installation.
Vehicles from the early 2000s frequently include a factory amplifier located behind interior trim in the cargo area. In such configurations the dashboard harness carries low-level signals instead of direct speaker outputs. Installers usually bypass the amplifier using a dedicated adapter harness or connect the remote activation lead (commonly blue with white stripe) to power the factory amplifier when the new media receiver turns on.
Before attaching connectors, inspect the dashboard cavity for two separate harness blocks: one for power and audio channels, another for vehicle data such as illumination and antenna trigger. The antenna booster lead typically appears as a blue conductor delivering 12 V once the receiver powers up. Secure all joints with crimp connectors or solder sleeves, then protect them with heat-shrink tubing to avoid vibration-related disconnection.
Audio Head Unit Cable Color Guide for a Popular U.S. Midsize SUV
Match each cable by color before attaching a new head unit: yellow supplies constant 12 V from the battery, red carries switched 12 V from the ignition circuit, black connects to chassis ground, blue controls the power antenna or external amplifier trigger, while orange with white stripe handles dashboard illumination. Speaker leads appear in pairs–solid color for positive and the same color with black stripe for negative. Typical pairs include white (front left), gray (front right), green (rear left), and purple (rear right).
Pin Layout and Installation Notes
The factory harness in this SUV family (late-1990s through mid-2010s trims) uses a rectangular multi-pin plug positioned behind the center console panel. Constant power usually enters through pin A4, ignition power through A7, and ground through A8. Illumination dimming lines connect through A2, allowing the head unit display brightness to follow dashboard lighting levels. For speaker output, front channels occupy B1–B4 and rear channels B5–B8, each carrying low-voltage amplified signals from the receiver. When integrating an aftermarket media receiver, connect through a vehicle-specific adapter rather than cutting the factory harness; this keeps the vehicle’s electrical system intact and prevents communication errors with body control modules present in later trims. Secure each crimp with heat-shrink tubing, route the harness away from HVAC ducts to avoid heat exposure, and confirm voltage with a multimeter before final mounting of the console panel.
How to Identify Ford Explorer Stereo Wire Colors by Model Year Before Connecting a New Head Unit
Check the production year of the vehicle and compare the factory audio harness color pattern with a verified connector chart before attaching any aftermarket receiver. Models from 1991–1994 usually use orange/light-blue for constant 12V supply, yellow/black for switched ignition power, and black/light-green as ground. Speaker leads during this period often appear as paired colors with a stripe: for example, white/light-green and dark-green/orange for the front left channel. Verifying these combinations with a multimeter set to DC voltage prevents accidental power cross-connection.
Units produced between 1995 and 2001 often follow a different harness palette. A yellow wire typically carries constant battery voltage, red/light-green is linked to ignition power, and black functions as ground. Illumination control frequently appears as light-blue/red, while amplifier trigger output may be blue/white. Speaker pairs usually follow a pattern where the solid color is positive and the same color with a brown or black stripe serves as negative. Example: orange/light-green (+) and light-blue/white (−) may feed the front right speaker on some trims. Because trim packages sometimes include factory amplifiers, confirm whether low-level signal lines are present before attaching speaker outputs from the replacement receiver.
Vehicles released from 2002–2010 introduced additional variations tied to premium sound packages. Constant battery feed is commonly yellow/black, accessory power often red/black, and chassis ground stays black. Illumination may appear gray/blue, while steering-wheel audio control data lines can be green/orange or gray/red depending on the electronics package. Speaker channels remain paired but frequently shift to white/brown, gray/light-green, tan/yellow, or brown/pink combinations. Before connecting the new media unit, probe each suspected power lead with the key both off and in accessory mode, then briefly test speaker pairs with a 1.5-volt battery “pop” method to confirm channel location without damaging the cones.
