To correctly install a fluorescent light fixture, you need to connect the terminals on the ballast to the power supply in your home. Make sure the wires are properly attached to prevent electrical hazards and flickering.
The power supply should be connected to the ballast through the live and neutral wires. In older fixtures, make sure to check for any faulty connections before proceeding. A proper connection will ensure a steady flow of electricity, allowing the light to operate without interruptions.
If you notice any issues like dimming or flickering, the problem may be with the starter or a loose connection at the terminals. Double-check the wiring and test the starter before replacing any parts. Follow the wiring schematic to ensure all connections are made according to manufacturer instructions.
Understanding the Wiring Process for Fluorescent Fixtures
When setting up a fluorescent light system, start by ensuring the fixture is powered off. This is crucial to avoid electrical shocks while handling the connections. Once the power is off, inspect the components, including the ballast, starter, and lamp holder. Familiarize yourself with each part before proceeding with the installation.
The primary connections involve the live wire and neutral wire from the power source, which must be connected to the respective terminals on the ballast. Always double-check that the live wire is connected to the “L” terminal and the neutral wire to the “N” terminal. Incorrect wiring can lead to malfunction or even damage to the light fixture.
Step-by-Step Setup Instructions
Begin by stripping the ends of the power cables to expose the copper wire. Use wire nuts to secure the live and neutral wires to the appropriate terminals on the ballast. The ground wire, typically green or bare, should be attached to the metal body of the fixture. Make sure the connection is firm to avoid any loose contact that may lead to hazards.
- Connect the live wire to the “L” terminal on the ballast.
- Attach the neutral wire to the “N” terminal.
- Secure the ground wire to the metal casing of the fixture.
- Check all connections for stability before turning the power back on.
After making the connections, carefully reinstall the cover of the fixture. Ensure that there are no exposed wires, as this could lead to a short circuit or electrocution risk. It’s advisable to use electrical tape for extra protection if necessary.
Troubleshooting Common Installation Issues
If the fixture doesn’t light up after installation, first check for loose connections. Often, a small loose wire can prevent the system from working properly. If the light flickers, it could be due to a faulty ballast or starter. Inspect both parts and replace any malfunctioning components.
Another common issue is improper voltage or mismatched components. Make sure the ballast is rated for the type of lamp you are installing. Using an incorrect ballast can cause inefficiency and potentially damage the system.
In some cases, if the light flashes on and off, the problem could be with the starter. This component is responsible for igniting the lamp, and a faulty starter will result in the light failing to remain on. Simply replacing the starter should resolve this issue.
Lastly, if you are working with older fixtures, verify that the wiring insulation has not deteriorated over time. Exposed or frayed wires can cause short circuits, so always replace any damaged wiring immediately to ensure the system works safely.

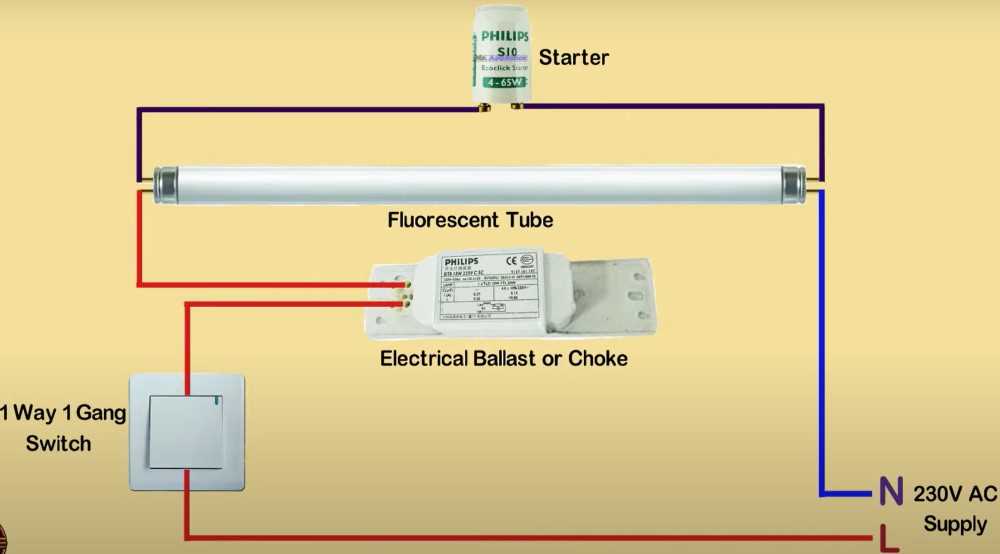

How to Wire a Fluorescent Light for a Standard Fixture
To start the installation, first turn off the power to the circuit you’re working on. This step is crucial for safety. Disconnect the fixture from the power source before proceeding with any connections.
Next, you’ll need to connect the live and neutral wires to the terminals on the ballast. The live wire typically connects to the terminal marked “L,” while the neutral wire connects to the terminal marked “N.” Make sure that both wires are stripped of their insulation and twisted tightly before securing them with wire nuts.
After connecting the main power lines, you’ll need to attach the ground wire. This wire is often green or bare and should be connected to the metal frame of the fixture. It’s essential that the ground connection is solid to prevent electrical shock hazards.
Once the power and ground wires are properly connected, check the other components, such as the starter. The starter should be installed securely in the socket of the fixture. Make sure the starter is the correct type for the lamp you’re using to avoid any issues during operation.
Now, mount the lamp in the fixture holder. Ensure that the lamp is seated correctly in its socket. Improper seating can lead to inconsistent lighting or damage over time. Make sure the pins of the lamp are properly aligned with the contacts in the holder.
Before turning the power back on, check all connections again. Ensure that no exposed wires are left, as this could lead to short circuits or electrical fires. If everything is secure, carefully reinstall any covers or housings on the fixture.
Finally, turn on the power and test the fixture. If the light does not turn on, check all connections once again. A common issue is the starter or ballast being incorrectly installed. Ensure both components are functioning properly for optimal performance.
