To maintain and repair a hydraulic lifting device effectively, it’s important to familiarize yourself with its key components. Start by identifying the hydraulic piston, release valve, and pressure gauge. These parts play a critical role in raising and lowering the load safely. Check for signs of wear and tear such as leaks or rust, which could indicate the need for replacement.
Next, ensure the lifting mechanism functions smoothly by inspecting the handle and pump assembly. The pump seals and the hydraulic fluid must be in good condition for efficient operation. If the device becomes unresponsive, consider examining the piston rod and seals for damage.
For troubleshooting, a clear understanding of the internal structure helps diagnose issues. Common problems include difficulty lifting or fluid leakage. Use the component layout to locate the faulty part and replace it accordingly. Regular inspection and maintenance can extend the lifespan of the device and prevent costly repairs.
Hydraulic Lifter Component Breakdown and Maintenance Guide

Start by inspecting the lifting arm and piston for any visible signs of damage or corrosion. If there is a decrease in lifting capacity, check the hydraulic fluid level and look for leaks around the seals or valve. If the fluid is low, refill it with the recommended type to restore proper functionality.
The release valve should operate smoothly when lowering the load. If the release mechanism feels sluggish or stuck, it may need cleaning or replacement. Remove debris around the valve area, lubricate the moving parts, and ensure that the valve cap is securely fastened to prevent leakage.
Next, inspect the wheels and base for any damage or wear. If the device is difficult to move, check the wheels for blockages or broken parts. A smooth, unrestricted movement is necessary for the proper function of the device. For any rust or dirt accumulation, clean and lubricate the wheel axles regularly.
Routine maintenance involves checking the overall structural integrity of the frame. Look for any signs of cracking, especially in areas that bear the weight load. If any cracks or bends are detected, the frame may need repair or replacement to maintain safety during use.

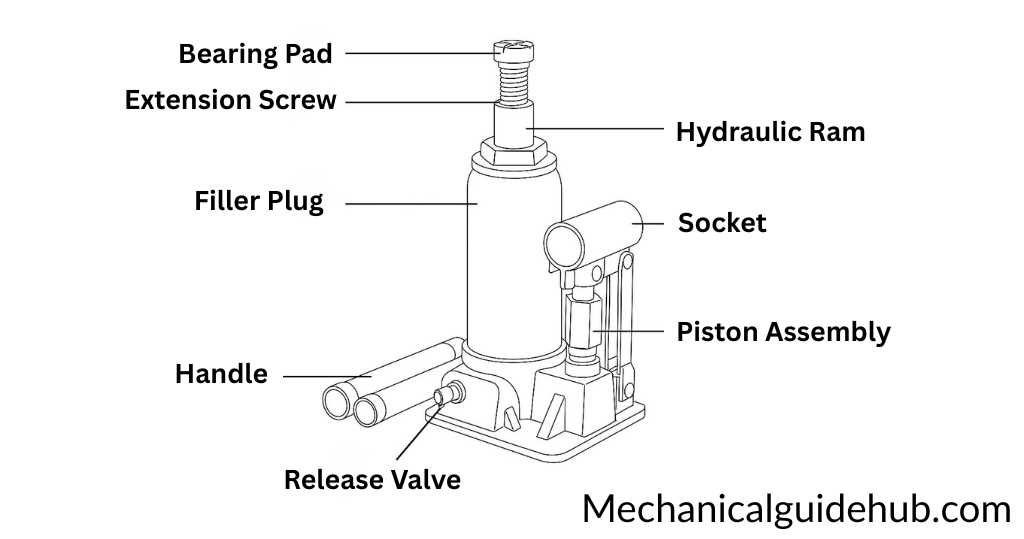

How to Identify Common Components in a Lifting Mechanism

Start by locating the hydraulic pump, usually found on the base. This is the component that generates the force needed for raising heavy loads. It is often connected to a piston that transmits the hydraulic pressure.
The release valve is another critical element. This part is responsible for controlling the descent of the load. Typically located near the pump, it should operate smoothly when you attempt to lower the lifted object.
Next, identify the lifting arm. This is the part that extends upward to make contact with the load. It is directly connected to the piston and raises or lowers depending on the hydraulic pressure applied.
The wheels play an important role in mobility. These are often made from rubber or steel and allow the device to move easily on flat surfaces. Check that they rotate freely without any blockages or visible damage.
The frame provides structural support and holds all the components together. It is often made from steel and designed to withstand heavy weights. Look for any bends or cracks in the frame as these can compromise the integrity of the entire system.
- Hydraulic pump – generates pressure for lifting.
- Release valve – controls lowering function.
- Lifting arm – extends to raise or lower the load.
- Wheels – allow easy movement on flat surfaces.
- Frame – provides the structure and support.
Step-by-Step Guide for Replacing Worn Lifting Mechanism Components
Start by lowering the mechanism completely to release all pressure. This will prevent any hydraulic fluid from spilling during disassembly.
Use a wrench to remove the bolts holding the main frame together. Set the bolts aside in a safe place, as you’ll need them later. Carefully detach the frame components to expose the internal parts.
Next, remove the hydraulic pump. This is often secured with a few bolts and hoses that will need to be disconnected. Be cautious of any remaining fluid and prepare a container for drainage.
Once the pump is removed, inspect the piston. If the piston has visible wear or damage, it will need to be replaced. Check the seals around the piston for any leaks or cracks and replace them as needed.
Replace any damaged release valves or springs. These components are critical for safe and controlled lowering. Remove the faulty part and install the new one by following the reverse procedure of removal.
Finally, reassemble the frame, ensuring all bolts are tightly secured. Once reassembled, test the mechanism to ensure it lifts and lowers smoothly, without leaks or resistance.

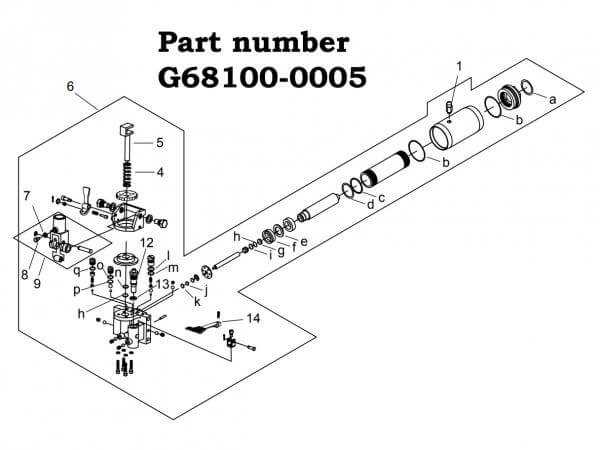

How to Troubleshoot Common Lifting Mechanism Issues Using Component Schematics
To begin troubleshooting, check for any visible fluid leaks around the hydraulic pump. If the pump is leaking, the seal may be worn. Refer to the schematic to locate the seal and replace it with a new one.
If the lifting mechanism is not rising, inspect the release valve. Use the schematic to locate the valve and ensure it’s fully closed. If it’s not functioning properly, replace the valve or clean the spring for optimal performance.
If the unit does not hold weight or starts to lower unexpectedly, the internal piston may be damaged. Cross-check the component diagram to identify the piston and inspect it for wear. If necessary, replace the piston and seals to restore functionality.
In cases where the device is slow to lift, check for air trapped within the hydraulic system. Use the schematic to find the bleeder valve, then open it to release any trapped air. Afterward, test the unit for smooth operation.
For resistance during lowering, check the release valve or internal spring components. The schematic will guide you to the precise location of these components. If either is damaged or worn, replace them to restore normal lowering speed.
