Use the machine layout reference before any service work to locate fasteners, shafts, and mounting points with precision. This model uses a 61 or 72 inch cutting platform, dual hydro pumps, and independent wheel motors, so correct orientation of assemblies prevents alignment errors and belt wear.
Focus first on the cutting platform and drive system. Blade carriers are mounted on reinforced spindles with specific torque values, while belt paths rely on fixed and spring-loaded idlers that must follow an exact routing. Misplacement by one pulley often causes vibration or uneven cut height.
Hydraulic and frame sections require equal attention. The chassis integrates suspension arms, control rods, and steering levers that share mounting hardware across multiple zones. Using a visual component map allows quick identification of bushings, spacers, and brackets, reducing disassembly time and preventing incorrect reassembly.
Zero Turn Mower Component Map for Service and Repair Tasks
Check the component map before removing any hardware to confirm bolt lengths, washer order, and mounting angles. This mower platform combines a fabricated cutting unit, dual hydrostatic pumps, and independent wheel motors, so visual reference prevents mismatched fasteners and reversed brackets.
Use the layout to trace belt runs from engine pulley to deck spindles and drive modules. Correct belt positioning around fixed guides and tension arms reduces slippage and protects bearings from side load. Measure belt width and length against the listed specifications before reinstallation.
Rely on the assembly map while working on steering levers, suspension arms, and frame-mounted controls. Several linkage rods share similar geometry but differ in thread pitch and offset. Visual identification ensures proper placement, smoother control response, and reduced wear during extended operation.
Mower Deck Assembly Breakdown with Blades Spindles and Belt Paths
Verify blade orientation and spindle mounting before tightening hardware, as incorrect alignment causes uneven cut height and vibration. Each cutting edge mounts to a splined shaft secured with a specific torque value, while spacers beneath the housing control vertical position.
Follow the belt path exactly as shown in the layout reference, routing it around drive pulleys, idlers, and fixed guides without crossing. The tension arm must rest within its travel range; a misrouted belt shortens bearing life and leads to slip under load.

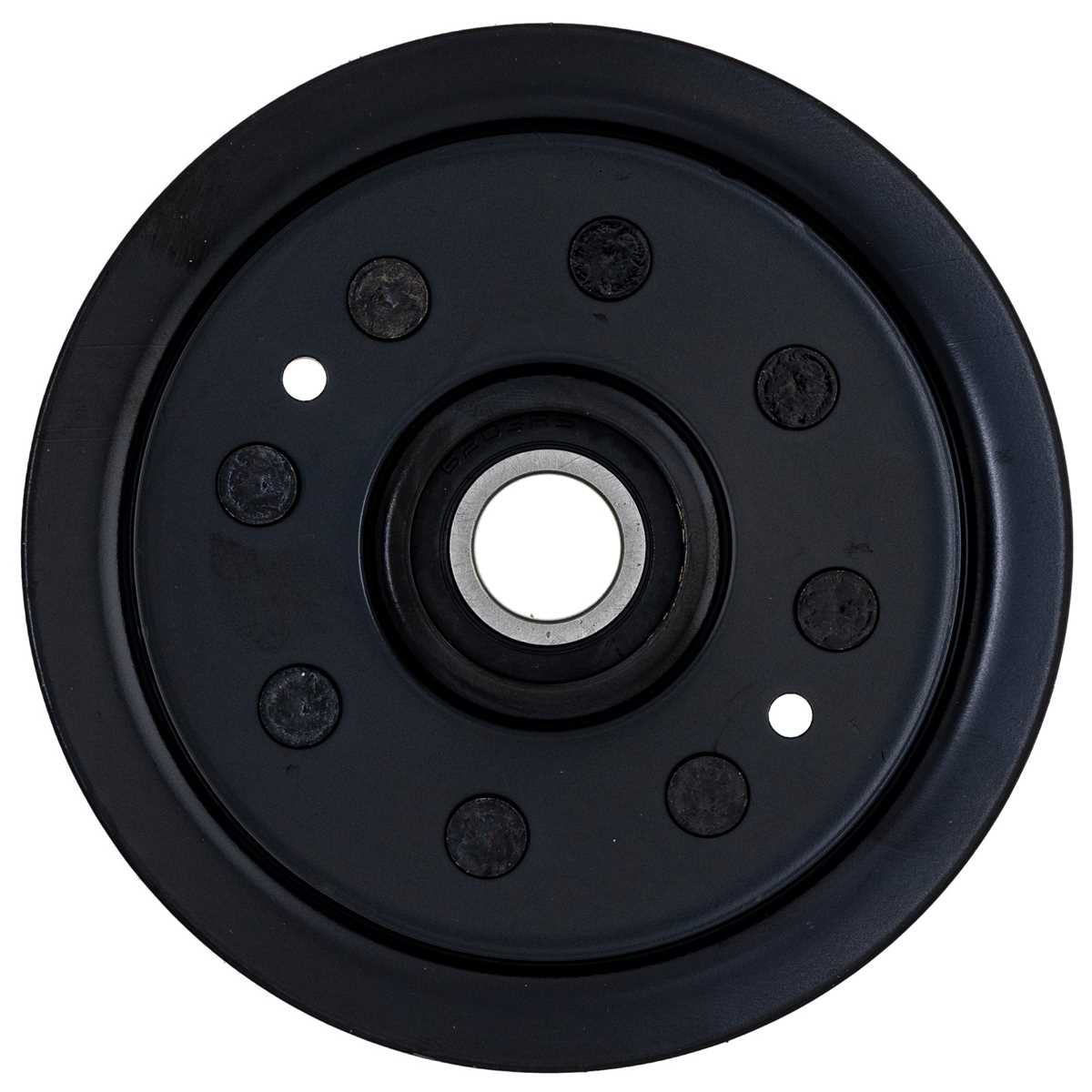

Inspect spindle housings for grease fitting access and seal placement during reassembly. Replace worn pulleys as a set when grooves show polishing or edge wear, since mixed components alter tracking and increase heat during continuous mowing.
Drive System and Suspension Layout Including Pumps Motors and Linkages
Verify hydraulic line orientation at each pump before tightening fittings, as swapped pressure and return paths cause loss of steering response. Mounting bolts must seat against the engine plate with intact rubber isolators to limit vibration transfer.
Wheel motors fasten to the axle hubs and connect through high-pressure hoses rated for continuous load. Replace copper washers during reassembly and torque fittings evenly to prevent seepage once fluid temperature rises.
Set control rods so both sides reach equal forward and reverse travel at the same lever angle. Neutral alignment depends on matching rod length and free joint movement through the suspension range. Worn spherical ends introduce creep and should be changed as matched sets.
Inspect suspension arms, pivots, and dampers with the chassis lifted. Any oil film near shock bodies signals seal wear. Pivot bolts require correct torque to allow vertical travel without side load, preserving traction on uneven turf.
