Start with the preamp section: Pay attention to the triode arrangement and plate resistor values. Accurate resistor and capacitor placement directly influences gain and tonal warmth. Swapping out a 0.02µF coupling capacitor with a 0.047µF unit can noticeably increase low-frequency response, enhancing richness without altering the core voice.
Focus on the power stage: The push-pull tube pairing relies on proper cathode biasing. Check the 470Ω resistor and bypass capacitor for stability; incorrect values can lead to unwanted oscillations or muddy dynamics. Tube selection also affects headroom–12AX7 for crisp overdrive or 6V6 for softer saturation.
Attention to the transformer and grounding scheme: The output transformer dictates the load on the tubes. Match impedance carefully to prevent distortion or heat buildup. Ground loops can create hum; star grounding from the input jack to the chassis minimizes interference. Trace each signal path and verify solder connections to ensure clean, defined amplification.
Consider tone-shaping components: The tone stack capacitors and resistors control the mid-scoop and treble roll-off. Adjusting the 25kΩ potentiometer in series with a 0.022µF cap subtly shifts the frequency response, allowing a more open, articulate sound. Component tolerances matter–use metal film resistors for consistency over carbon types.
Practical testing tips: Inject a low-level sine wave at the input to follow the signal through each stage. Measure plate voltages under normal operation; deviations indicate aging tubes or misaligned components. This methodical approach ensures reliability and helps preserve the amplifier’s signature character.

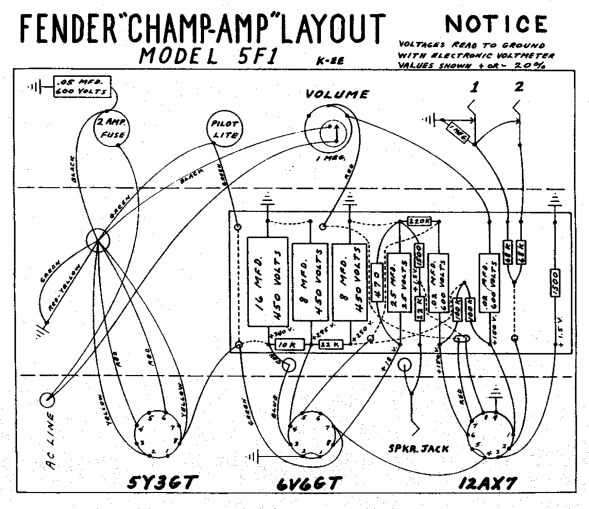

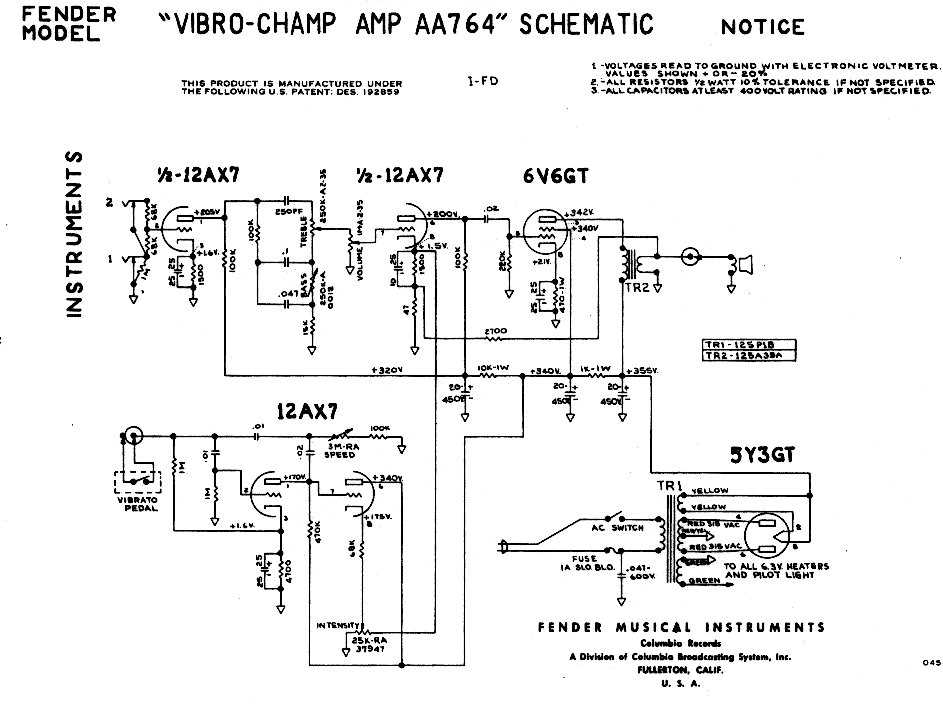

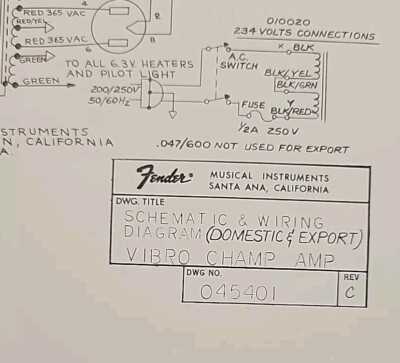

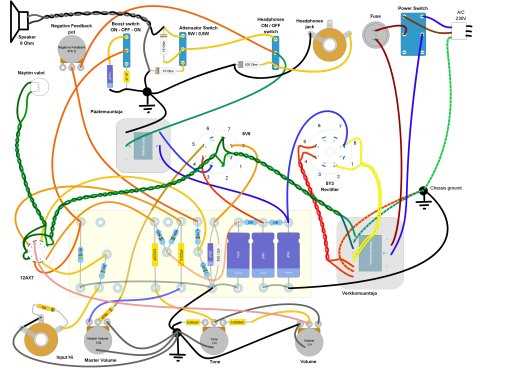

Fender Champ Circuit Diagram
Use a 6V6 power tube to replicate the classic tonal response of this small-format amplifier. Position the tube directly after the preamp stage for clean gain structure and natural compression.
Install a 12AX7 dual triode in the initial amplification slot; the first half drives the tone stack while the second half acts as a phase inverter. This arrangement maximizes harmonic richness and maintains clarity at higher volumes.
Replace the stock electrolytic capacitor with a 22µF unit in the cathode bypass path. This adjustment boosts low-end resonance without muddying the midrange frequencies, enhancing note definition on single-string lines.
Integrate a 470kΩ grid leak resistor before the coupling capacitor connecting the preamp and power stages. This stabilizes the biasing point and reduces microphonic feedback from high-gain pickups.
Signal Path Optimization
Route the input through a series of 68kΩ resistors to limit excessive current into the first triode. This simple step prevents early-stage clipping and preserves dynamic touch sensitivity.
Upgrade the output transformer to a 5W-rated unit with 8Ω and 16Ω taps. Matching impedance carefully minimizes high-frequency loss while keeping the harmonic profile intact during heavy overdrive.
For tone sculpting, place a 0.022µF capacitor across the midrange control potentiometer. This creates a gentle mid scoop suitable for both clean articulation and crunchy overdrive tones, balancing the overall sonic character.

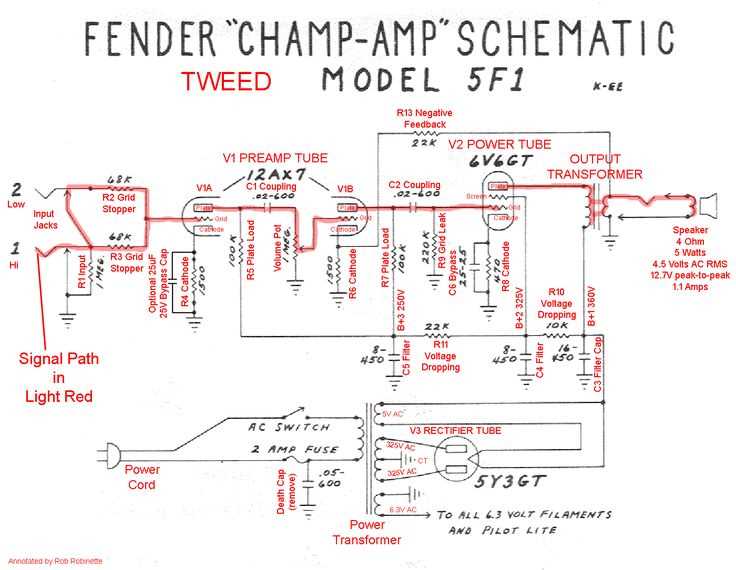

Identifying Key Components in the Fender Champ Schematic
Begin by locating the power section, which consists of a rectifier tube, power transformer, and filter capacitors. The transformer has three sets of windings: primary for mains voltage, high-voltage secondary for plate supply, and low-voltage secondary for heaters.
The preamplifier stage uses a 12AX7 dual triode. Identify the signal path: input jack feeds the grid of the first triode, followed by a coupling capacitor linking it to the second triode. Each triode section has a cathode resistor and bypass capacitor that influence gain and tonal response.
Pay attention to the tone-shaping network. The treble and bass controls are simple passive circuits with potentiometers and capacitors. The treble bypass capacitor is usually 0.02 µF, and the bass section often includes a 250 pF capacitor for high-frequency attenuation.
- Output tube: 6V6 single-ended power amplifier, connected to the output transformer.
- Plate resistor values typically range from 10kΩ to 22kΩ.
- Cathode resistors around 470Ω to 1kΩ with bypass capacitors from 25 µF to 50 µF.
Identify the feedback loop from the secondary of the output transformer to the phase splitter or preamp stage. This loop reduces distortion and smooths frequency response. The resistor in this path is usually between 10kΩ and 22kΩ.
Locate coupling capacitors between stages; common values are 0.022 µF or 0.047 µF. These block DC while allowing AC signal to pass. Incorrect sizing can result in tone loss or unwanted hum.
Check the grounding scheme carefully. Star grounding is used to prevent hum. All chassis connections meet at a single point near the rectifier. Heater wires twist together to reduce induced noise in the audio path.
