If you’re working with a 765-1 valve model and need to identify replacement components or troubleshoot issues, having an accurate breakdown of its internal structure is crucial. This guide provides a thorough look at the key pieces involved in the valve’s operation, ensuring a smoother repair process. Whether you are a seasoned technician or tackling the task for the first time, understanding the configuration of each element will streamline your work.
The valve consists of several critical elements that need to be inspected regularly to ensure optimal performance. Some parts, like the spring assembly, sealing components, and control mechanisms, are particularly prone to wear and may need replacement after prolonged use. By referencing a detailed schematic, you can avoid costly errors and save time while sourcing the correct parts.
In the event of malfunction, it’s vital to isolate the root cause, which could range from faulty seals to issues with internal springs. Knowing the layout of each part helps in diagnosing the problem quickly and effectively. Regular inspection and proper maintenance based on the detailed visual guide will extend the lifespan of the valve and enhance system reliability.

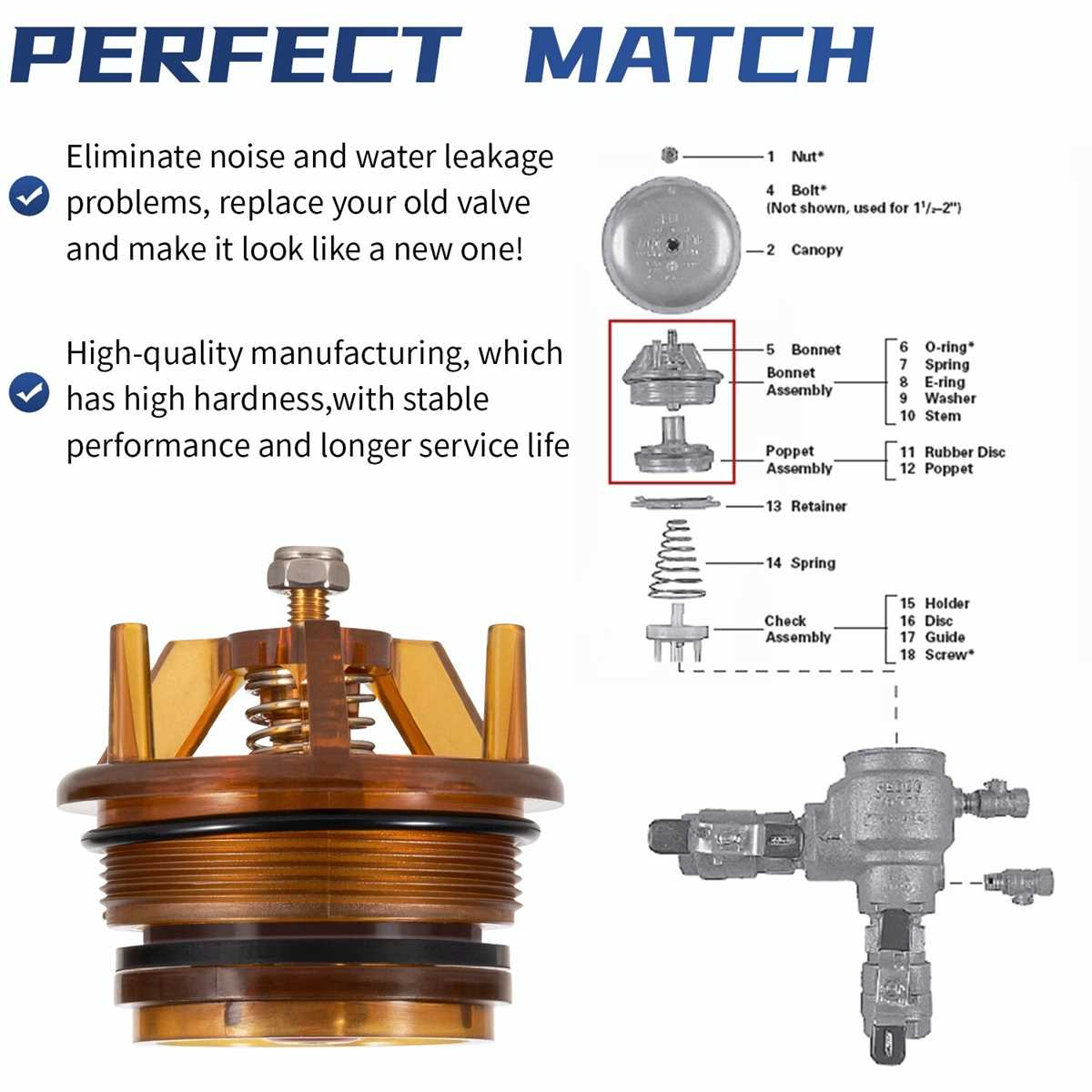

Detailed Breakdown of the 765-1 Valve Components
To properly maintain or repair the 765-1 valve model, ensure that you refer to the individual components and their precise configuration. Key sections of this device include the body assembly, bonnet, and sealing elements, each critical to functionality. Be aware of the specific seals and gaskets involved to prevent leakage, especially at high pressures. A focus on the springs and seats will help you avoid malfunction due to wear. When replacing the valve stem, ensure alignment with the actuator mechanism to guarantee smooth operation. The flow restrictor and diaphragm work in tandem, so inspecting these for wear and tear is necessary for maintaining optimal performance. Keep a close eye on the connection threads, ensuring they are not damaged during assembly. Regular checks and timely replacements of these components will extend the life of the unit and prevent downtime.
How to Identify and Replace Common Components in the Valve
Inspect the valve’s main body for signs of wear, leaks, or damage. If the actuator is not responding, the internal spring or diaphragm may need to be replaced. Remove the cover and check for any signs of corrosion or physical degradation on these parts. If the valve is not closing completely, examine the seal for any tears or improper seating. The seat and stem should also be checked for wear, as any damage can cause improper operation.
Start with the diaphragm; it’s one of the most common parts to fail. Check if it’s cracked or hardened. If so, remove the screws holding the diaphragm cover and carefully lift it off. Clean the area before installing a new one to ensure a proper seal. Replacing the spring may also be necessary if it shows signs of corrosion or if the valve feels unresponsive when actuated.
If the valve leaks, inspect the valve seat and check for damage or erosion. Replace it if you notice uneven wear or cracks. The O-rings should be checked as well; these can degrade over time, causing leaks. Replace any O-rings that appear brittle or damaged. The valve’s seat can be difficult to replace without professional tools, but minor erosion can sometimes be addressed with sealant or by adjusting the seating mechanism.
When replacing the internal components, always ensure that each part is properly aligned during reassembly. Misalignment can prevent the valve from functioning properly, leading to further issues down the line. Regularly check the valve for any signs of improper function and maintain it by performing periodic cleaning and servicing.
Understanding the Function of Each Part in the Febco 765-1 Assembly
The assembly consists of several key components, each with a specific function to ensure proper operation. The main valve body controls the flow of water and houses the internal mechanism that regulates pressure. The relief valve is designed to release excess pressure, protecting the system from potential damage. The check valve prevents reverse flow, maintaining the correct water direction. The strainer is a filter that keeps debris from entering the system, improving longevity and reliability.
The pressure gauge monitors system performance, allowing for quick identification of potential issues. The test cock valves provide easy access for testing and maintenance, ensuring the unit operates efficiently. The adjusting screw on the main valve allows for fine-tuning pressure settings, which is essential for optimizing performance.
<.the>
Each part of this setup plays a critical role in maintaining consistent pressure, preventing damage, and allowing for simple maintenance. Understanding the individual roles of these components will help in diagnosing and troubleshooting any issues with the system.
