To create a high-speed and reliable network connection, follow the correct sequence of pins when arranging the conductors in the cable. The T568A and T568B wiring schemes are the two standards used for this purpose, each providing a different pinout layout.
When arranging the wires, ensure that they are placed in the exact order required by your chosen standard. For example, in the T568A configuration, the green pair should be placed first, followed by the orange, blue, and brown pairs. Mistakes in this sequence can lead to performance issues, including signal degradation or total loss of connectivity.
To minimize interference and improve the signal quality, twist the wire pairs tightly and avoid kinking or sharply bending the cables. This is especially important for longer connections, where poor cable handling can introduce noise into the network. Always use high-quality connectors and verify that all pins are correctly aligned before terminating the wires into the plug or jack.

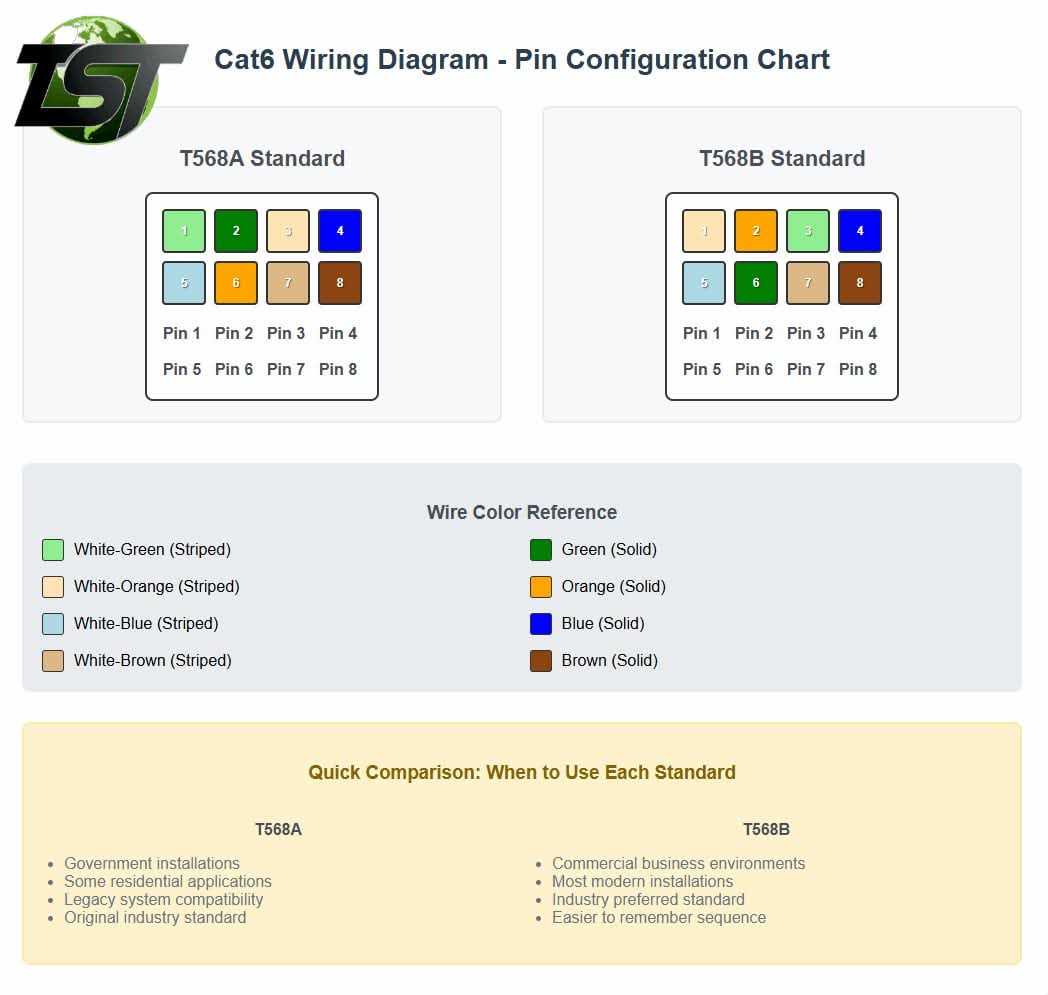

Ethernet Cable Wiring Diagram Cat 6
For a stable and fast network setup, choose the correct configuration based on the T568A or T568B standards. The wires inside the insulation should be arranged in specific patterns to ensure full functionality. The first step is to strip about 1 inch of the outer jacket to expose the pairs of wires inside, making sure not to damage them.
Once the insulation is removed, straighten the four twisted pairs and arrange them according to the chosen wiring scheme. The T568A standard has the following color order for the pairs: green-white, green, orange-white, blue, blue-white, orange, brown-white, and brown. For the T568B configuration, the order changes, starting with orange-white and orange, followed by green-white and blue.
Correct Pairing of Wires
Each pair of wires needs to be twisted tightly to reduce crosstalk. The color codes are designed to match the pins in the connectors, so be sure to align the pairs with the correct pinouts. The first pair, for example, should be placed in the first two pins of the RJ45 connector, with the second pair occupying the next two pins, and so on.
For accuracy, use a punch-down tool or crimping tool to securely attach the wires to the connector. It’s important to make sure that no wires are left exposed after the termination, as this can lead to connection issues. Each pin in the connector should fully press into the wire, ensuring a solid connection.
When arranging the wires into the RJ45 connector, keep them as straight as possible to prevent bending, which could result in data loss or slower speeds. Do not let the wires untwist too much before insertion, as this could introduce signal interference. Ensure that all wires fit evenly into the connector without any gaps or overlaps.
Verifying the Connections
After completing the termination, it’s a good idea to use a cable tester to verify the correctness of the wiring. A tester will check for proper pin alignment and continuity, helping to identify any wiring mistakes such as swapped pairs or faulty connections. Testing ensures that the cable will perform as expected once connected to your network devices.
If the cable fails the test, double-check the pinout order and ensure that each wire is securely connected to its corresponding pin. Often, issues arise from improper stripping or loose connections that prevent the cable from functioning correctly.
Finally, always label your cables with identifiers such as “T568A” or “T568B” to avoid confusion in larger setups. This will make maintenance and troubleshooting easier, as it ensures that you can quickly recognize the wiring scheme used for each connection.
How to Wire a Cat 6 Ethernet Cable Using the T568A Standard
Start by stripping about 1 inch of the outer jacket from the wire, making sure not to damage the internal pairs. Once the jacket is removed, you’ll see four twisted pairs. Separate the pairs and straighten them as much as possible.
For the T568A wiring standard, arrange the wires in the following order from left to right with the clip facing you:
- White/Green
- Green
- White/Orange
- Blue
- White/Blue
- Orange
- White/Brown
- Brown
Once the wires are arranged in the correct order, trim them so they are all even, making sure none of them are longer than the others. This ensures proper connection when inserted into the RJ45 connector.
Carefully insert the wires into the RJ45 connector, ensuring each wire is securely pressed into the correct pin slot. Use a crimping tool to push the wires into the connector and lock them into place. Check that all wires are fully inserted and the connector is firmly attached before testing the connection.
