Always start by identifying the hot and ground leads of each pickup before attempting any connections. Use a multimeter to verify continuity between the metal shielding and ground points, ensuring no shorts exist. Label each wire to avoid confusion during assembly.
Next, connect the volume and tone controls following the standard potentiometer layout. The bridge pickup’s hot lead should go to the first lug of the bridge volume pot, while the middle lug connects to the output jack. Check that the tone capacitor matches the specified value, typically 0.022μF for a warm tone response.
Finally, test the signal path before closing the cavity. Plug the guitar into an amplifier and switch through all pickup positions, observing for any hum or loss of signal. Make adjustments to solder joints and grounding if any inconsistencies appear, ensuring smooth operation and full tonal range.
Pickup and Control Connection Guide for Dual Humbucker Guitars

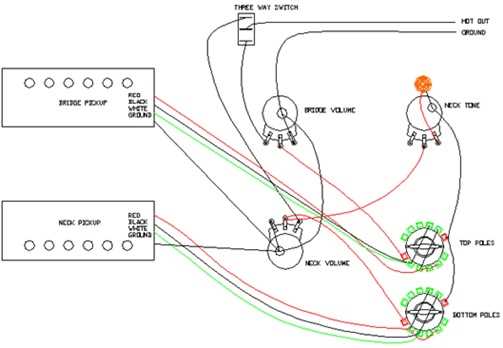

Begin by identifying each pickup’s output and ground leads. The bridge pickup’s hot wire should connect to the first lug of the bridge volume potentiometer, while the neck pickup’s hot wire goes to the corresponding neck volume control. Ensure that the ground wires attach securely to the back of the potentiometer casings to prevent unwanted hum or noise.
Next, link the tone controls and selector switch correctly. Attach the tone capacitor from the middle lug of each volume pot to its tone pot, maintaining proper orientation for optimal frequency response. Finally, connect the selector switch output to the output jack and test each pickup position, confirming that both pickups and controls operate smoothly without signal dropouts.
Identifying Pickup Leads and Tone Control Terminals
Start by separating the hot and ground leads from each humbucker. Typically, the hot lead carries the signal to the volume control, while the ground connects to the pot casing. Use a multimeter to confirm continuity and avoid potential short circuits.
Label each lead for bridge and neck pickups before making connections. The bridge coil often uses a black hot wire, and the neck coil uses a white or colored wire depending on manufacturer standards. Correct identification prevents reversed phase and uneven output between pickups.
Locate the volume and tone terminals on each potentiometer. The input lug receives the pickup signal, the wiper sends it to the output, and the casing lug serves as the ground. Ensure that each tone pot is connected to its designated capacitor for proper frequency attenuation.
Check the selector switch terminals before soldering any leads. Identify the common output and individual pickup positions. Testing with a continuity probe helps prevent misrouting signals and avoids loss of certain pickup selections.
Confirm the grounding paths for all control components. The bridge and neck grounds should converge at a single point on the back of a pot casing to minimize hum. Using shielded wire for the hot leads further reduces interference.
Final verification involves testing each control independently. Rotate the volume and tone knobs fully and switch between pickup positions to ensure smooth operation. Signal integrity should remain stable without crackling or dropouts across all combinations.
