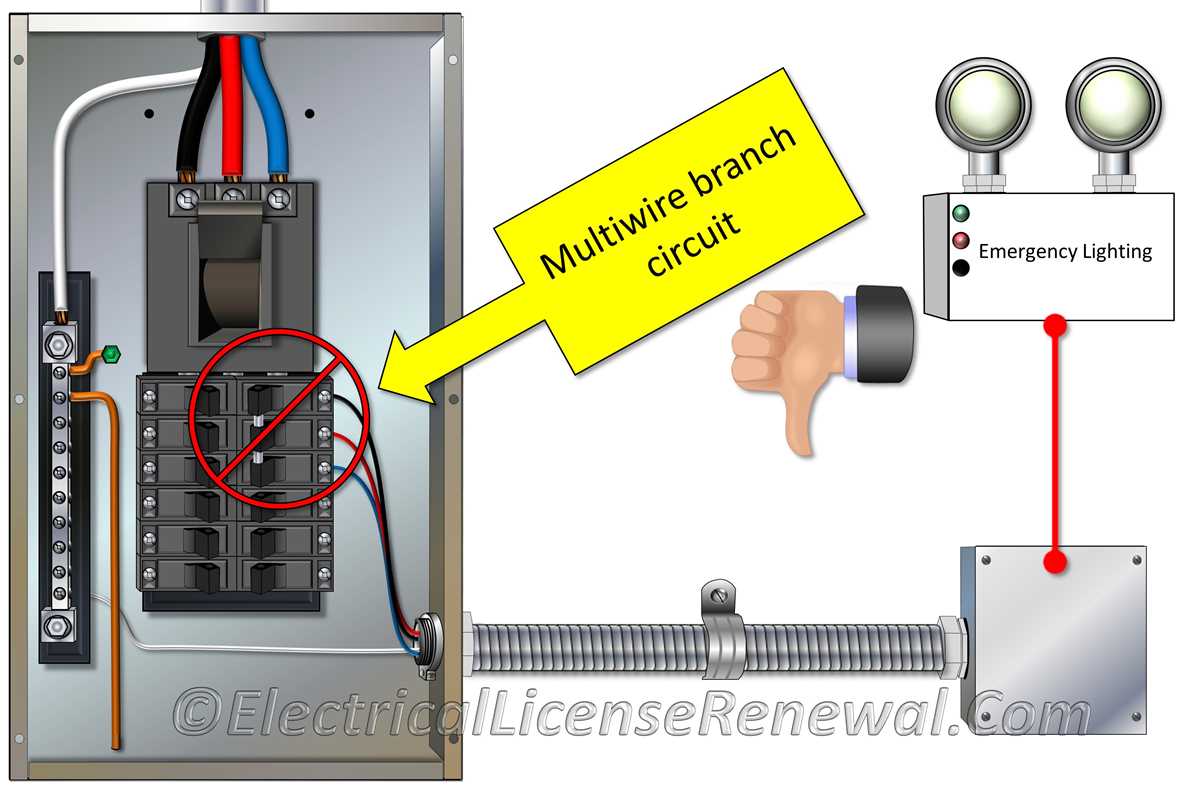

Install backup fixtures directly on a dedicated feeder with a minimum conductor size of 2.5 mm² for copper or 4 mm² for aluminum. Ensure the protective relay is rated for at least 10 A above the expected load to prevent nuisance trips during power transitions.
Position control modules in proximity to the main distribution panel to reduce voltage drop and simplify inspection routines. Use double-insulated connectors for every junction, and avoid splicing in damp areas to maintain reliable operation under prolonged use.
Integrate a test switch that cycles each unit individually at least once per month. Label all terminals with permanent markers or heat-shrink sleeves to eliminate miswiring during maintenance. Confirm that power sources switch within 0.5 seconds to comply with safety thresholds and prevent fixture burnout.
Run separate neutral and grounding conductors alongside phase lines to prevent cross-interference. Install surge suppressors rated for 600 V transient to protect LEDs and control electronics. Verify continuity of protective loops before final enclosure sealing to ensure uninterrupted service under outage conditions.

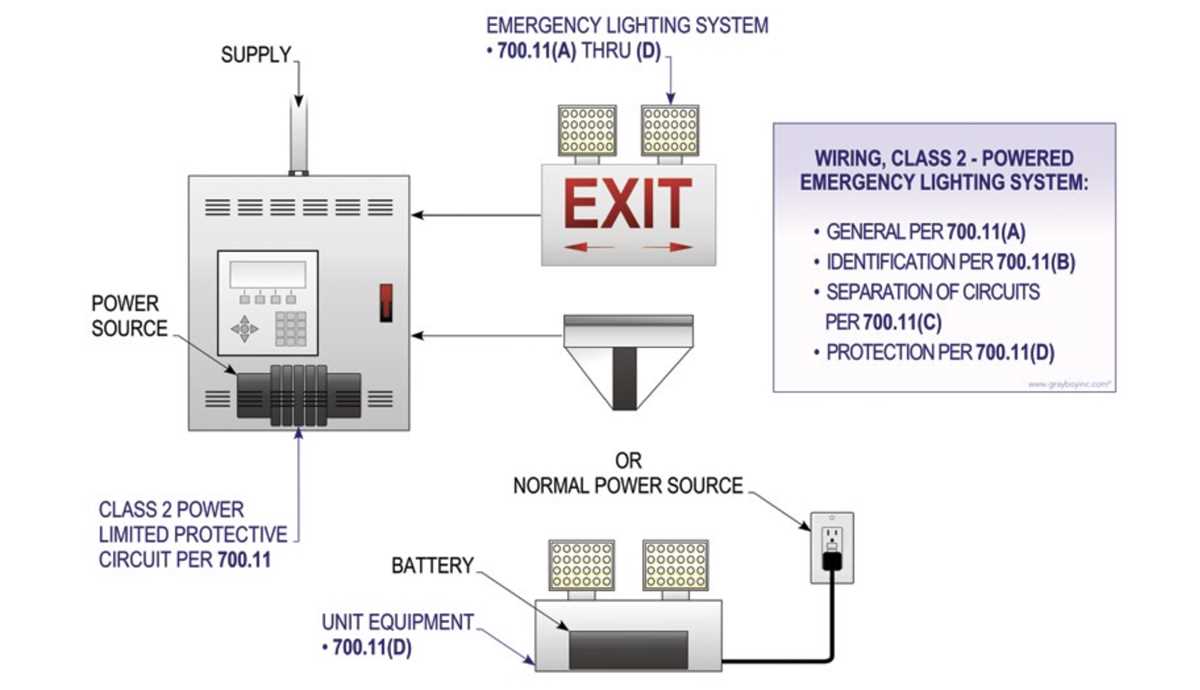

Emergency Illumination System Layout
Connect backup lamps directly to a secondary power source using insulated conductors rated for at least 1.5 times the operational current. Include an inline fuse rated 10–15% above maximum load to prevent overcurrent damage.
Arrange fixtures in a series-parallel pattern to maintain illumination if a single lamp fails. Use color-coded cables–red for live, blue for neutral, green/yellow for ground–to simplify maintenance and fault detection.

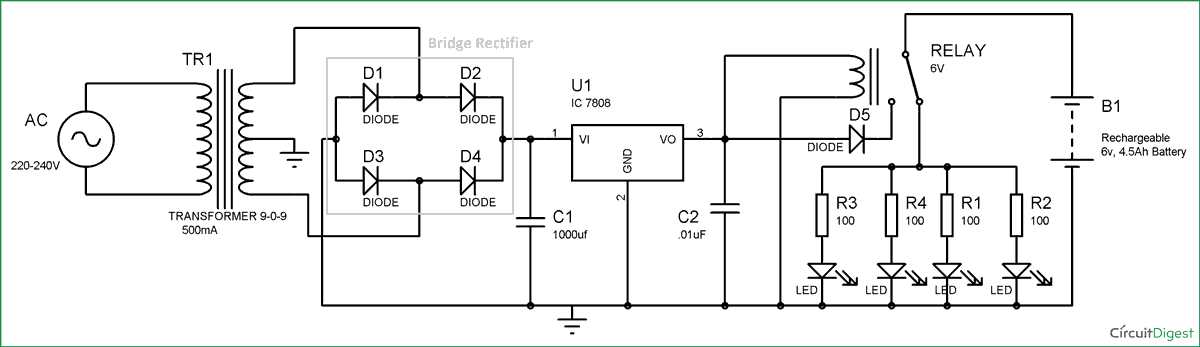

Power Supply Integration
- Install a self-contained rechargeable module near the main junction box.
- Ensure the charging terminals have voltage regulation between 12.8V and 14.4V for lead-acid or lithium units.
- Include an automatic switch to transfer load within 0.5 seconds upon primary source loss.
Test the assembly monthly under full load for at least 30 minutes. Keep a schematic near the control panel with labeled nodes and junction points to avoid misconnection during troubleshooting.
Step-by-Step Setup for Single Backup Fixture
Connect the fixture directly to a dedicated 120V supply using a 14/2 cable rated for residential or commercial load. Ensure the breaker is off before handling any conductors.
Strip approximately 3/4 inch of insulation from the black, white, and ground wires. Attach the black lead to the line hot terminal and the white lead to the neutral terminal marked inside the housing.
Secure the bare copper wire to the green grounding screw. Tighten all connections with a torque of around 12 in-lbs to prevent loosening over time.
Mount the unit on a junction box capable of supporting at least 10 pounds. Align the fixture’s screw holes with the box, and use lock washers to reduce vibration effects.
Run a separate battery connection cable if the fixture includes a backup cell. Connect the positive to the red battery terminal and the negative to black, observing polarity carefully.
Verify voltage at the terminals with a multimeter before energizing. Expect a steady reading of 120V on the line and 12V–24V on the backup battery depending on the model.
Engage the circuit breaker and test the manual switch on the unit. The lamp should illuminate instantly; any flicker indicates loose connections or a faulty cell.
Finish by snapping the diffuser or cover in place and labeling the switch and panel with “Backup Light” to ensure quick identification during routine checks or emergency drills.
