Always identify live, neutral, and grounding terminals before connecting any receptacle. Use a voltage tester to confirm which wire carries current and which provides return flow, ensuring connections match standard color coding.
Secure each conductor firmly under its screw terminal. Loose connections can cause sparks or intermittent power, especially in high-use areas. Tighten screws to the manufacturer’s torque specification without over-compressing the wire.
Maintain proper spacing between conductors to prevent accidental shorting. Avoid crossing wires, and keep insulation intact. If a wire shows nicks or fraying, replace it with the same gauge copper conductor rated for 15 or 20 amps as appropriate.
Test the assembly before final installation. Attach the receptacle to a temporary holder and measure voltage across terminals. Confirm that grounding provides continuity and that no shorts exist between terminals before mounting permanently.

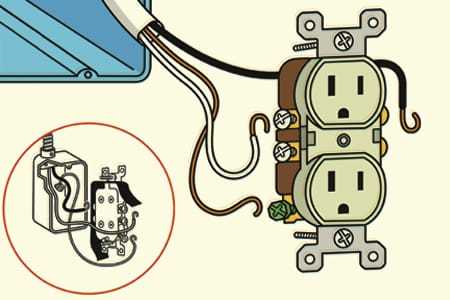

Connecting Household Power Receptacles Safely

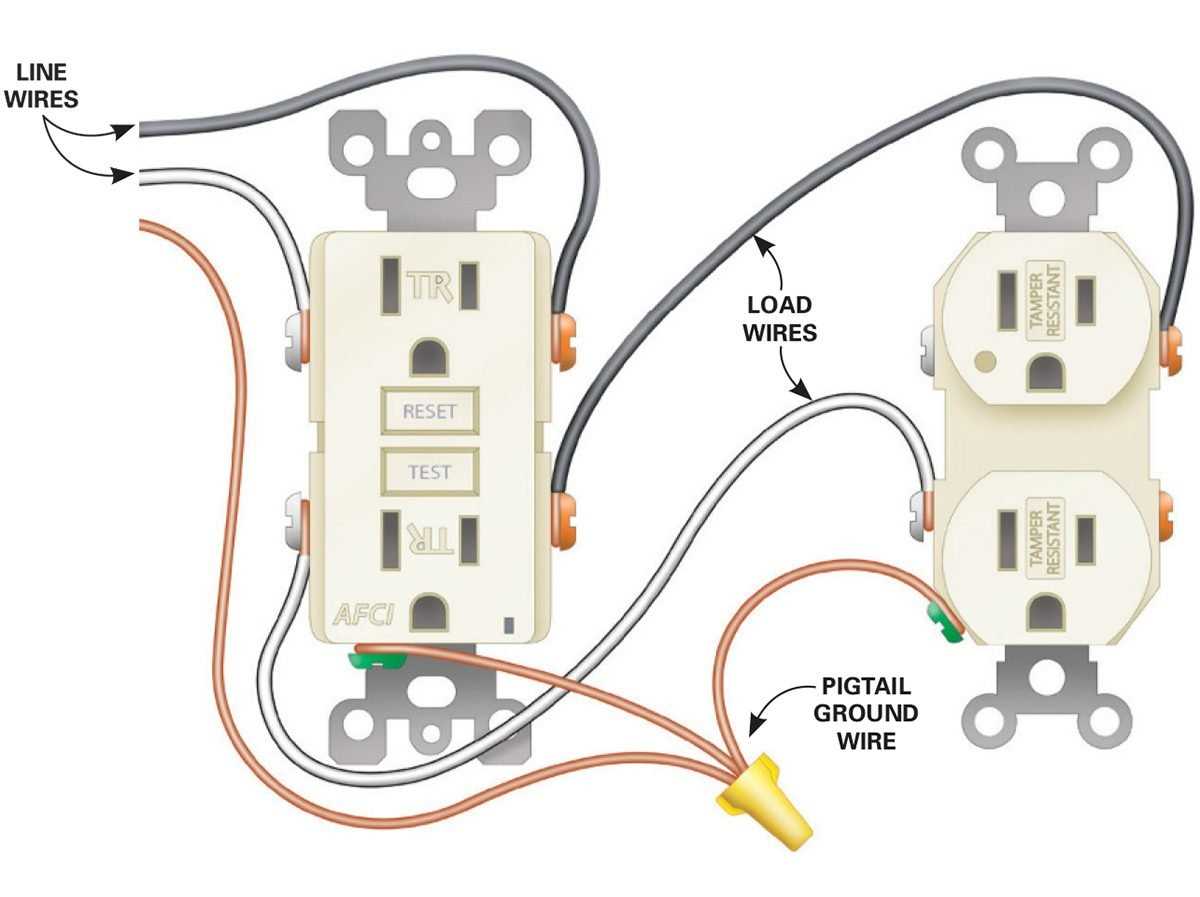

Identify the hot, neutral, and ground conductors before starting assembly. Hot wires are usually black or red, neutral is white, and grounding wires are green or bare copper. Confirm each with a tester to prevent misconnection.
Attach the hot conductor first to the brass-colored terminal, ensuring it is fully wrapped around the screw and tightened securely. This prevents arcing and reduces the risk of overheating under load.
Connect the neutral conductor to the silver-colored terminal. Make sure the wire is straight and fully seated beneath the screw, leaving no exposed strands that could touch other terminals.
Secure the ground wire to the green screw or terminal. Proper grounding protects users from electric shock and provides a path for fault current. Verify continuity with a multimeter before final assembly.
Organize the conductors neatly inside the box. Avoid crossing wires unnecessarily, and maintain at least half an inch of space between each terminal to prevent shorts.
Test connections before securing the device. Measure voltage between hot and neutral, and check resistance between ground and frame. Confirm correct polarity and continuity to ensure safe operation.
After verification, carefully mount the receptacle, making sure screws do not pinch or damage insulation. Recheck all connections after installation to maintain long-term reliability and safety.
Identifying Live Neutral and Ground Connections
Use a voltage tester to locate the live conductor. Black or red wires typically carry current from the power source. Confirm by measuring between each wire and a known ground point before making any connections.
Identify the neutral conductor by locating the white wire. It completes the return path for current. Verify continuity to the service panel neutral bus to avoid reversed polarity, which can cause appliances to malfunction.
Locate the grounding conductor using the green or bare copper wire. Ensure it is securely connected to the metal box or ground screw. This path prevents shock in case of a fault and should show near-zero resistance to the main ground rod.
Label each conductor clearly after identification. Marking live, neutral, and ground prevents confusion during installation and future maintenance. Double-check with a tester before proceeding to full assembly to ensure safety and proper operation.
