Begin by identifying the two key terminals on the component: the fan and compressor terminals. These terminals will help guide the wiring process and ensure proper installation. Verify that the power supply is disconnected before starting the task to avoid electrical hazards.

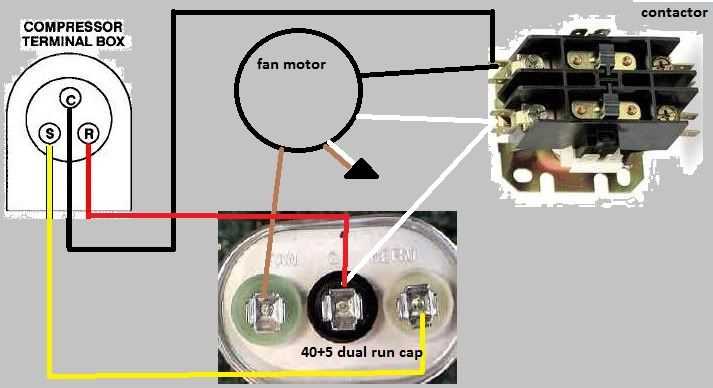

Connect the appropriate wires from the fan motor and compressor to their corresponding terminals. The fan terminal typically connects to the wire from the fan motor, while the compressor terminal should connect to the wire from the compressor. Ensure that the connections are tight and secure to prevent issues like voltage drops or overheating.
Once the connections are in place, double-check the wiring layout against the specifications in the technical manual for your system. Incorrect connections can lead to poor performance or damage to the components. After wiring, restore power and test the system to confirm that everything is functioning as expected.
How to Connect the Capacitor for HVAC Systems

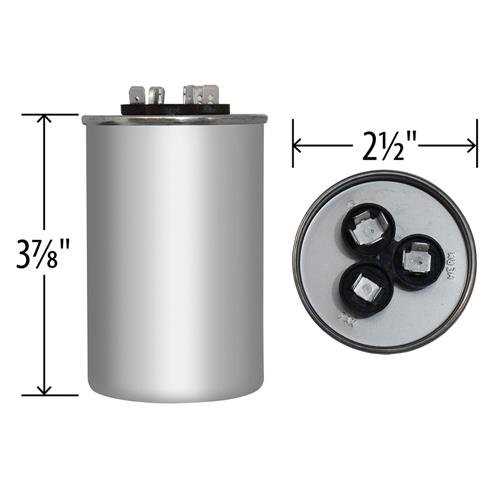

Start by identifying the correct terminals on the component. Typically, you’ll find three: one for the compressor, one for the fan, and one for the common connection. The common terminal is the one that connects to the power supply, while the fan and compressor terminals are connected to their respective devices.
Ensure the connections are tight. A loose connection can cause the motor to run inefficiently or even lead to overheating. Make sure to strip the wire insulation carefully before connecting, ensuring the bare wire makes good contact with the terminal. Secure the connection using appropriate wire nuts or terminal screws.
Choosing the Right Capacitor Size
The value of the capacitor should match the motor specifications. A capacitor that is too small can cause the motor to run inefficiently, while a too-large capacitor can damage the system. Always check the manufacturer’s label on the motor to confirm the appropriate capacitor size in microfarads (µF).
Once all connections are made, check the component for any signs of wear or damage. Cracks, bulges, or leaks around the casing of the capacitor indicate that it may need replacing. Ensure that the new component matches the specifications of the old one for optimal system performance.
After installation, reconnect the power and test the system. The motor should start running smoothly without unusual noise or excessive heat. If the system fails to start or shows irregular behavior, check all connections again and make sure the capacitor is properly rated for the equipment.
Identifying the Terminals on a Capacitor

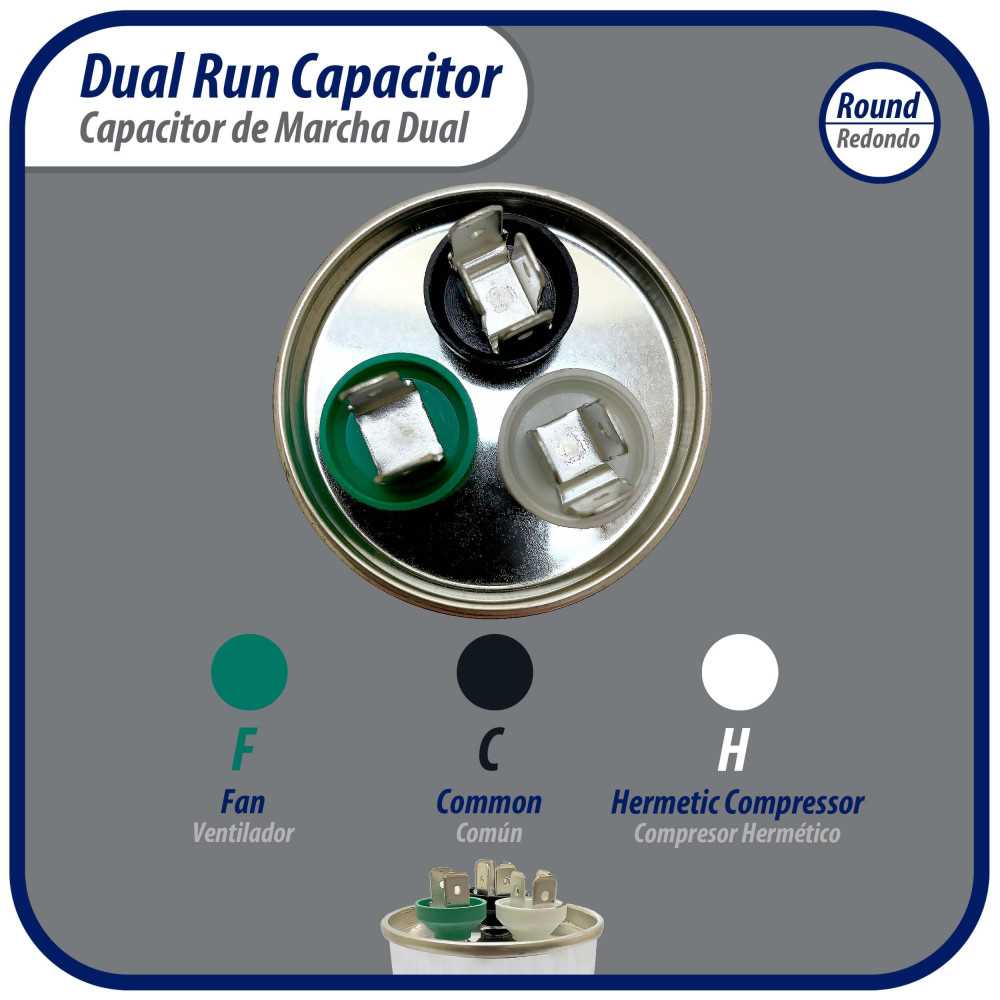

Begin by locating the three primary terminals on the component. These are typically labeled: “C” for common, “F” for the fan, and “H” for the hermetic or compressor. The “C” terminal connects to the power supply, while the other two correspond to their respective motors, either the fan or compressor. Make sure each terminal is clearly marked, as misconnecting them can result in malfunction or damage to the system.
Check the labeling carefully, as the polarity of connections is important. The common terminal typically connects to the neutral or ground wire, while the fan and compressor terminals handle the live wires. If the component has multiple capacitances, the different terminals will serve specific functions based on the load they handle. Always verify the rating of each terminal before making connections to ensure proper functioning.
