Use two identical lead-acid cells in parallel to maintain consistent energy output while preventing overloading of either unit. Ensure both are rated for at least 100 Ah for prolonged accessory support.

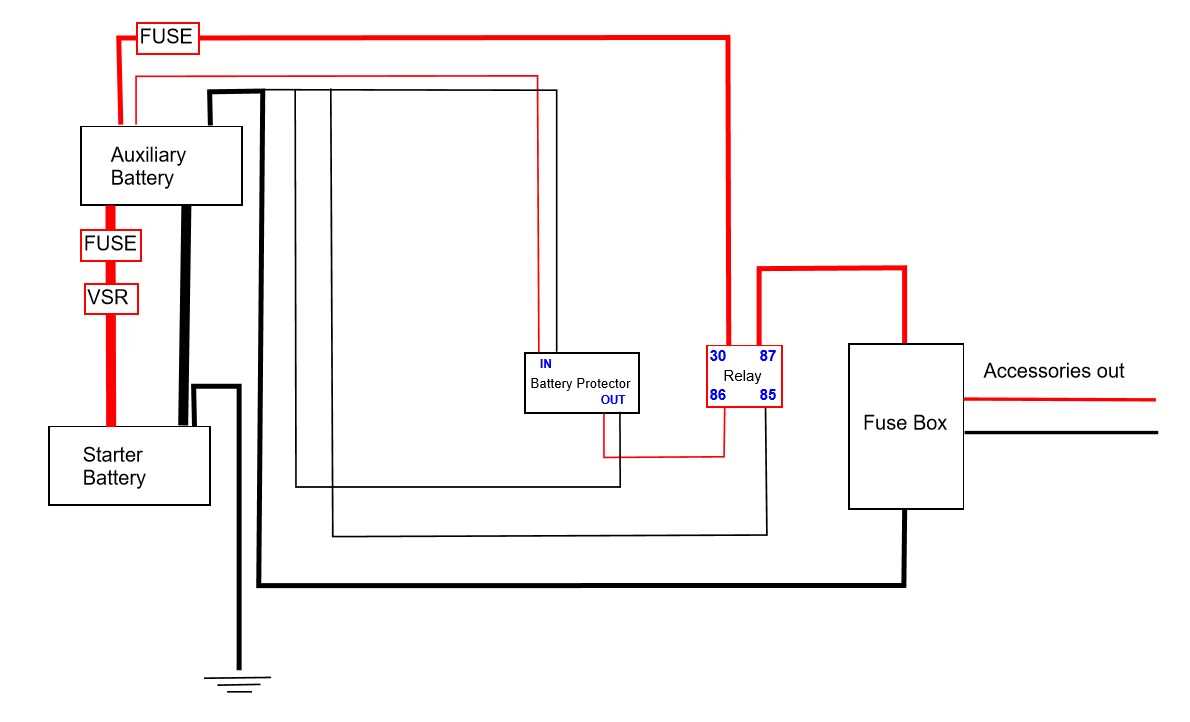

Connect positive terminals through a high-capacity isolator to allow independent charging from the alternator and prevent discharge into the starter unit. This maintains operational readiness for critical systems.
Install a robust negative bus linking both casings to reduce voltage drops during heavy loads. Use at least 4 AWG cable with proper fusing near each terminal to avoid shorts and heat accumulation.
Place the units securely in a ventilated enclosure to dissipate heat and prevent acid vapors from corroding nearby electronics. This also stabilizes the setup during vehicle motion and vibration.
Dual Battery 12 Volt Setup for Vehicle Power Systems
Install two identical lead-acid units in parallel with separate isolators to prevent one storage cell from discharging the other. Use at least 100 Ah rating for both units to ensure sufficient energy for auxiliary systems.
Connect positive terminals through a heavy-duty isolator switch to allow the engine alternator to charge both independently while keeping the starter unit isolated during low consumption periods.
Use 4 AWG or larger gauge cables for linking negative terminals and the chassis ground. This reduces voltage drops and prevents overheating during high current draws from in-vehicle accessories.
Position both cells in a ventilated, vibration-resistant tray to avoid excessive heat buildup and acid corrosion. Secure mounting prevents movement and ensures consistent contact under road conditions.
Incorporate fuses close to each terminal to protect against shorts or accidental cross-connections. Match fuse ratings to the maximum output current of each unit to minimize risk of fire or damage to sensitive electronics.
Check the state of charge of both units periodically using a digital tester. Unequal charging can cause premature aging of one storage unit and reduce overall system reliability.
Integrate a monitoring panel for voltage and current readings to observe the performance of the setup in real time. This allows for quick detection of potential faults before they affect vehicle operation.
Selecting Appropriate Batteries and Connectors for Dual Setup
Choose two identical deep-cycle lead-acid units with at least 100 Ah capacity to maintain stable energy delivery for vehicle accessories and prevent imbalance during simultaneous use.
Use connectors rated for 150% of the maximum output current of each cell to handle surges from high-draw devices without excessive heat generation or contact degradation.
Prioritize terminals with corrosion-resistant coatings, such as tin-plated copper, to ensure long-term reliability in humid or salty environments typical for off-road vehicles.
Position both units in a secure tray with vibration dampers to reduce mechanical stress on connections. Loose terminals can cause intermittent faults and accelerated wear on contacts.
Integrate insulated lugs and reinforced crimps for all positive and negative links. This prevents accidental shorts and maintains consistent conductivity under repeated engine vibrations.
Regularly inspect each connector for signs of oxidation or loosening. Even small resistance increases can lead to voltage drops that impair accessory performance and shorten service life of the storage cells.
For charging compatibility, select units with similar internal resistance and charge acceptance rates. Mismatched components can cause uneven charging, leading to one unit overworked while the other underperforms.
Include protective covers over all terminals to prevent accidental bridging by metal tools or debris. This simple step reduces the risk of sparks, damage to electronics, and unintended disconnection during operation.
