To ensure a reliable power supply in systems requiring increased electrical capacity, connecting two charging units is a practical solution. Begin by planning the placement and connections of each unit, making sure the wiring is robust enough to handle the combined output. The configuration must maintain proper voltage regulation to prevent overloading any part of the system.
Make sure to use appropriately rated cables for high-current applications, as improper wire gauge can lead to overheating and potential system failure. Each unit should be connected to a separate battery bank or to a shared system with proper load balancing. Isolate the control circuits to avoid interference and ensure that each generator operates smoothly without causing issues for the other.
In addition to the basic setup, consider integrating fail-safe measures like fuses or circuit breakers at each key connection point. This will protect both the generators and the connected devices from electrical surges or shorts. Regularly inspect the wiring for wear and tear, as well as verify the condition of the connection terminals to prevent disruptions in power flow.

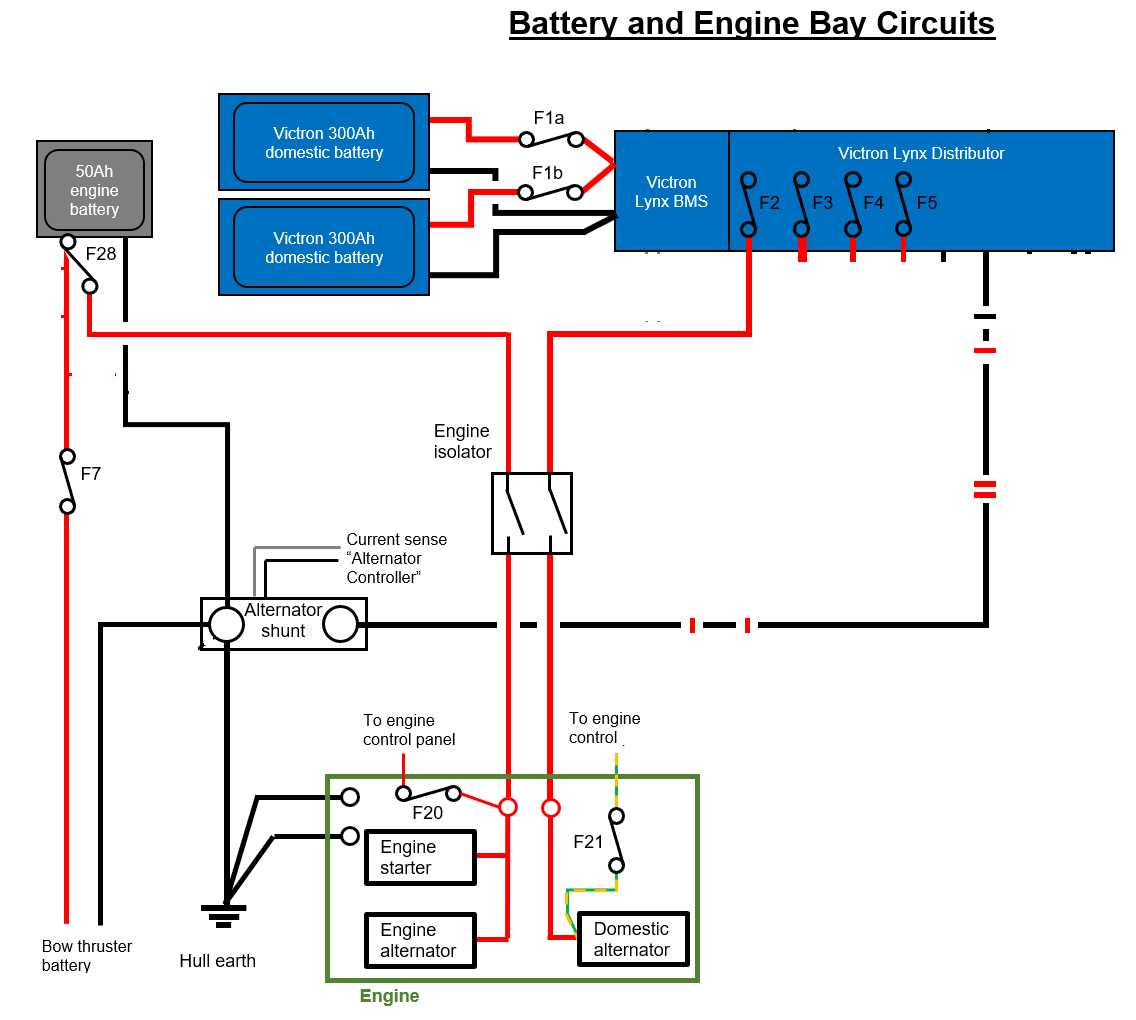

Dual Alternator Wiring Diagram
To successfully integrate two power-generating units, start by carefully assessing the space and available connections. Each unit must have a dedicated path to the battery bank to avoid overloading one line. Connecting both units to a common load distribution point allows for more reliable power without taxing any single unit excessively.
Ensure both units are properly isolated to prevent feedback from one into the other. This can be achieved with a voltage regulator and diode isolators. The regulator will ensure each unit maintains stable voltage, while the diode isolators prevent backflow of power between the two units.
Component Selection
Use appropriately rated cables for the expected current draw. Typically, 10 AWG to 6 AWG cables are suitable for most systems, but be sure to consult the manufacturer’s specifications. For the best results, use heavy-duty, high-quality connectors that minimize the risk of corrosion or loose connections over time.
The battery banks should be matched for voltage and capacity to ensure the system functions as intended. If two separate battery banks are used, both should have the same charging voltage to avoid damage or inefficient charging. Use a split charge relay if connecting the two batteries to a shared load.
Installation Tips
Position the power-generating units as close to the battery banks as possible, while maintaining space for proper ventilation. Avoid running long, exposed cables that could suffer from wear and environmental exposure. Always use wire looms or conduit to protect cables from physical damage.
For safety, ensure that all connections are made with the power off. After wiring, double-check all connections for tightness and proper insulation before powering up the system. It’s also a good idea to use terminal covers to protect each connection from moisture and dirt.
After installation, monitor the system’s performance, especially during initial use. Check the output voltage and current, ensuring that both units are functioning correctly and supplying stable power. If any irregularities are observed, inspect the connections, fuse protection, and power regulators.
- Check the output of each unit independently before connecting to a shared load.
- Inspect the system for overheating during the first few uses.
- Keep an eye on the battery banks for signs of overcharging or undercharging.
By following these steps and recommendations, you can ensure a stable and efficient system that will provide reliable power for your needs without overloading any components.
How to Connect Two Alternators for Dual Power Supply
Begin by ensuring both units are appropriately sized for your electrical demands. Match the power output of each unit to avoid imbalance. Connecting units that provide different outputs can lead to inefficiencies or damage. Use a common regulator to keep voltage levels consistent across both units.
Next, connect the positive terminals of both units to a distribution block. This block will act as a central point for current flow, directing power where it’s needed. Make sure each wire is thick enough to handle the combined load without overheating. For most setups, 8 AWG to 6 AWG is recommended, but always consult the manufacturer’s specifications.
Using a Voltage Regulator
Integrate a voltage regulator for each unit to maintain stable voltage output. Without a regulator, the units may compete to charge the batteries, causing inefficient performance. The regulator ensures that each unit operates within its optimal voltage range and prevents overcharging or undercharging the connected batteries.
Install the regulator between the power units and the battery bank. The regulator will monitor the voltage levels and adjust as needed to keep the system within safe limits. This helps ensure both power units are charging effectively without damaging the battery bank or electrical components.
Connecting the Battery Bank
Connect each unit to its own battery bank, or use a split-charge system if you prefer to use a single bank. A split-charge relay ensures that both battery banks are charged independently without draining one another. If using a single battery, ensure it has enough capacity to handle the combined output of both units.
Install fuses or circuit breakers near each power source to protect the system from overloads. These safety devices will prevent damage in the event of a short circuit or a surge. It’s also recommended to use a voltage monitoring system to track the health of your battery bank and prevent damage from voltage spikes.
Once everything is connected, test the system under load to ensure it operates correctly. Monitor the output voltage and current to confirm both units are supplying power without issues. If there are discrepancies in power output or irregularities in voltage, check the connections and fuses for faults.
