Connect the green lead to the grounding terminal immediately. This ensures all devices maintain a stable reference to earth and prevents accidental shocks. The grounding wire should be securely fastened under the screw, with no bare strands exposed outside the clamp.
Attach the neutral wire, usually white, to its designated slot. This line completes the circuit by returning current from appliances to the source. Ensure the conductor is fully seated and the terminal is tightened without deforming the wire.
The hot conductor, commonly black or red, belongs to the remaining slot. This line carries live current and requires careful handling. Confirm connections are firm and that no insulation is nicked, which could lead to overheating or short circuits.
Double-check polarity before powering the outlet. Swapping the live and neutral can damage sensitive electronics. Use a tester to verify correct placement and continuity of all three wires before final assembly.
Maintain clear separation between the leads. Avoid crossing or bundling them inside the casing, as this can create heat accumulation. Each terminal should hold only its intended conductor, with screws tightened evenly to ensure stable contact.
Understanding 3-Prong Electrical Connector Identification

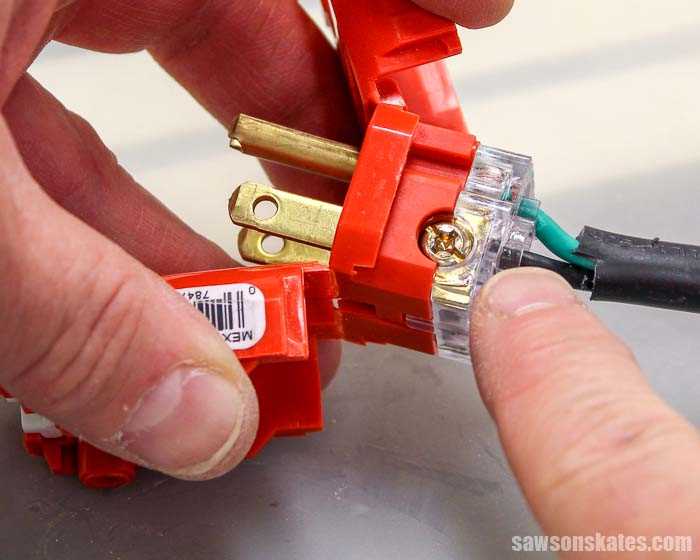

Connect the grounding wire to the terminal marked with green or bare copper; this prevents potential shocks and ensures safe discharge of stray currents. The live conductor should attach to the brass screw, while the neutral wire links to the silver screw, maintaining correct current flow.
The following sequence helps avoid mistakes:
- Green or bare → grounding
- Brass → hot
- Silver → neutral
For a standard 120V system, the black line carries the active current, and white indicates the return path. Confirm connections with a multimeter before energizing any appliance, and tighten screws to secure metal clamps without over-torquing, which could damage terminals.
Safety and Verification Steps
After securing each conductor, inspect insulation for nicks or fraying. Use a continuity tester to verify that grounding and neutral are not cross-connected. Proper placement of each lead prevents overheating and reduces fire risk. If swapping an old device, replace the connector entirely rather than reusing worn parts, as color fading can mislead installation.

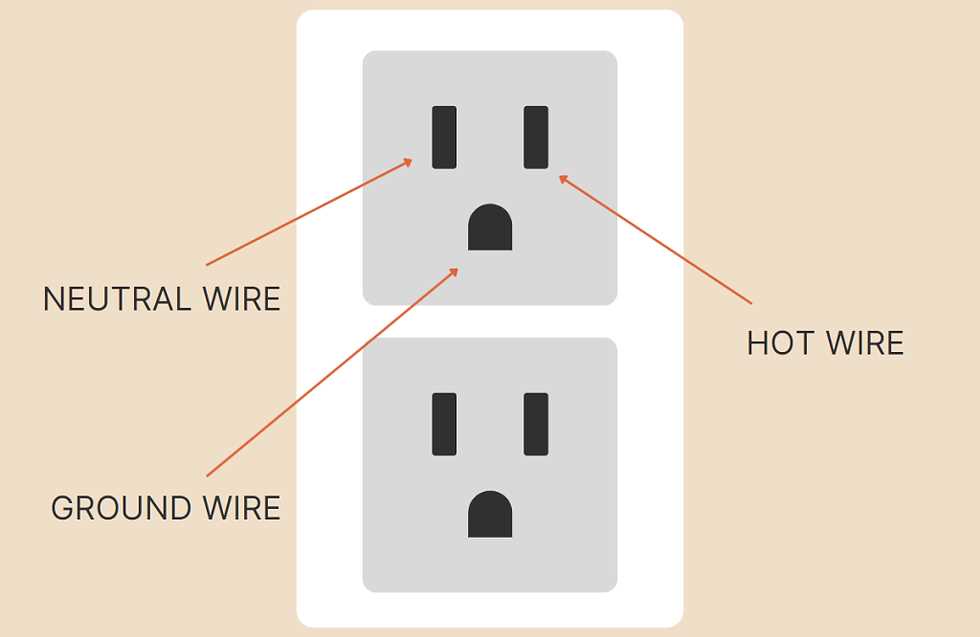

Identifying Hot, Neutral, and Ground Wires by Color
Black or red insulation indicates the live conductor that carries current from the source. Always treat these as energized and verify with a voltage tester before making contact. In most household setups, black is the primary active wire, while red may appear in multi-way or switch loops.
White sheathing designates the neutral pathway, returning electricity to complete the circuit. Confirm continuity with a tester, especially if the wire has been re-purposed in older systems where color standards were inconsistent. Neutral wires are safe to touch only when the power is off, but they still can carry voltage under certain conditions.
Green insulation, or bare copper, identifies the grounding conductor. This wire provides a low-resistance path to earth, preventing shock hazards. Ensure all metal boxes and mounting brackets are properly bonded to this connection; skipping grounding compromises safety significantly.
Occasionally, gray or striped variations appear, usually marking additional neutrals or switched hots in complex installations. Document each wire during inspection, labeling terminals before making changes. Accurate recognition prevents short circuits and protects devices and users from electrical faults.
