Use two complementary transistors in series to achieve a high gain setup capable of driving larger loads with minimal input current. This arrangement multiplies the current amplification of a single transistor, allowing small signals to control heavier devices such as relays, motors, or LEDs.
Position the base of the first transistor through a limiting resistor to prevent excessive base current, and connect the collector of the first stage directly to the base of the second stage. This ensures proper signal transfer while maintaining stability under varying load conditions.
Include a small emitter resistor on the second transistor to reduce thermal runaway and provide predictable operating characteristics. Values between 10Ω and 100Ω are commonly used depending on the supply voltage and load requirements.
Verify voltage ratings of both components before assembling the module. Ensure that the combined setup can handle the maximum collector-emitter voltage expected during operation to prevent breakdown and maintain long-term reliability.
Test the configuration with a low-power signal initially to measure actual gain and confirm correct behavior. Adjust resistor values and wiring connections if the output does not match calculated expectations or if the module exhibits unwanted oscillations.
High Gain Transistor Configuration Setup

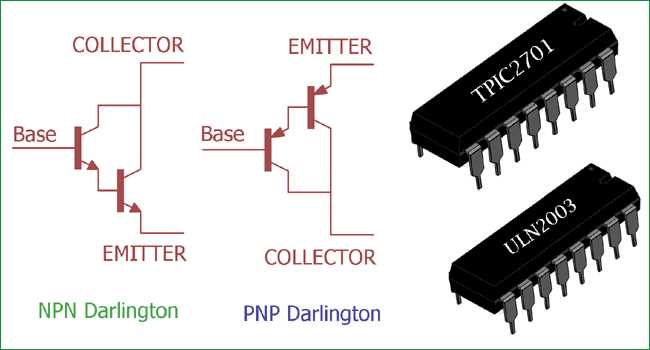

Connect two NPN transistors in a stacked configuration to achieve a significant increase in current amplification. This method allows small input signals to control higher loads without requiring a larger input current.
Use a resistor between the input source and the first transistor base to limit current and prevent damage. Typical values range from 1kΩ to 10kΩ depending on the input voltage and transistor specifications.
Ensure the collectors of both devices are wired correctly to the power rail, while the emitter of the second stage is connected to the load. This arrangement guarantees maximum gain while maintaining stability.
- Verify voltage ratings of each transistor exceed the maximum supply voltage.
- Check current handling capacity to avoid overheating under continuous operation.
- Include small emitter resistors (10–100Ω) for thermal protection.
Measure the voltage drop across the emitter resistors during initial testing. If the voltage rises beyond expected levels, reduce the load or adjust resistor values to prevent instability.
Component Selection for Reliable Operation
Choose transistors with high hFE to maximize the overall amplification. Matching devices with similar gains helps maintain predictable output under varying input conditions.
Capacitors can be added across the emitter and collector to filter noise or prevent oscillations at high frequencies. Values between 10nF and 100nF are commonly applied depending on signal characteristics.
Test the assembled module with low-current signals first. Observe the output waveform for distortion or excessive delay. Fine-tune resistor and capacitor values until the performance aligns with the design expectations.
How to Connect Transistors for Maximum Current Gain
Start by linking the collector of the first transistor directly to the base of the second device. This connection multiplies the current amplification, allowing small input signals to control larger loads with minimal input power.
Insert a base resistor before the first transistor to limit input current and prevent overheating. Recommended values typically range from 1kΩ to 5kΩ depending on the supply voltage and transistor ratings.
Connect the emitter of the second transistor to the load and then to the negative supply line. This ensures that the amplified current flows smoothly through the load while maintaining proper voltage levels across both devices.
Stabilizing the Stacked Transistors
Include small emitter resistors for each stage to reduce thermal runaway and improve stability under varying temperatures. Values between 10Ω and 100Ω are usually sufficient for low to medium power applications.
Check voltage ratings for each transistor to ensure they exceed the maximum supply voltage. This prevents breakdown during spikes or load variations and extends the operational lifespan of the setup.
Test the assembly with a low-power input first and measure output current. Adjust resistor values and wiring if the output gain is lower than expected or if the devices heat excessively during operation.
