To measure the flow of electricity through a conductor, you need to integrate a detection module that can convert the electrical signal into a readable output. Start by using components like shunt resistors or Hall effect devices to capture the current passing through the wire. These components provide a voltage drop proportional to the flow, allowing you to calculate the amount of electricity passing through.
Ensure the module is designed to handle the expected range of values, as different applications require different ranges for voltage and current levels. For example, a low-power system might only need to detect small amounts of current, while larger devices could require measurements in the ampere range. The correct range ensures that the measurement is precise without overloading the system.
Once your detection system is in place, it should be paired with an appropriate display or processing unit that can interpret the data. This can include simple analog meters or more advanced microcontroller-based systems for real-time data monitoring. Calibration of the system is also critical; without proper calibration, the measurements will lack accuracy and could lead to faulty operation of the device or system being monitored.

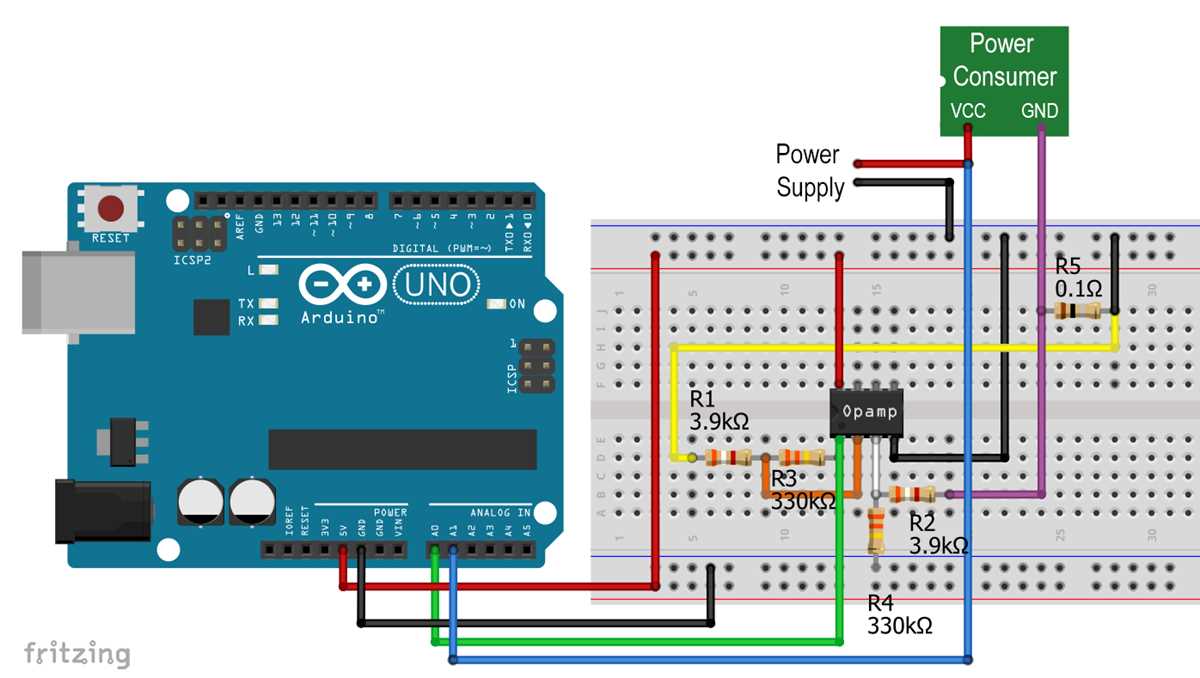

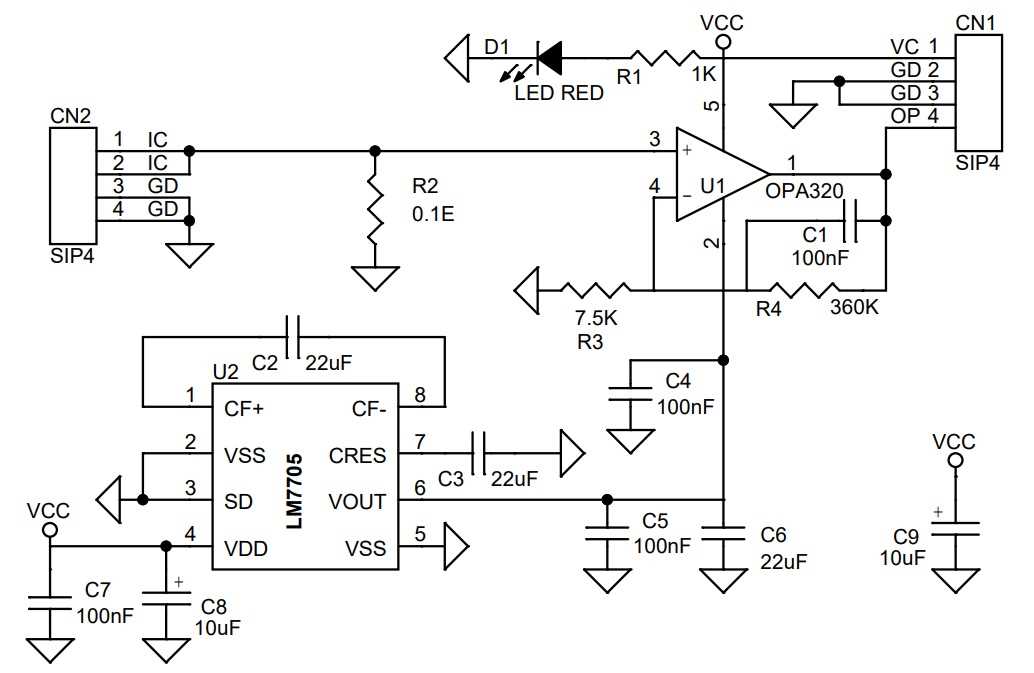

Current Sensor Circuit Diagram Guide
Begin by selecting the right type of measuring component, such as a Hall effect transducer or a shunt resistor, depending on the required accuracy and range. Hall effect devices are ideal for non-contact measurements, while shunt resistors are more suited for precise and low-cost applications.
Connect the sensor to a voltage measurement system. If using a Hall effect component, it will output a voltage directly proportional to the detected flow, while a shunt resistor generates a voltage drop that must be amplified for accurate readings. Ensure your amplifier matches the output characteristics of the sensor for correct data interpretation.
For more complex setups, integrate a microcontroller to process and display the data. The microcontroller should be equipped with an analog-to-digital converter (ADC) for translating the sensor’s output into a readable value. Configure the microcontroller to display measurements in real-time or store them for later use.
Calibrate your system carefully. For instance, with a shunt resistor, you’ll need to know its resistance value to calculate the flow. A known current source is used for calibration, ensuring the output readings align with the expected values. This step is crucial for reliable performance in both low and high current applications.
In some cases, you might need to filter the output to smooth any noise or spikes caused by electrical fluctuations. Implement a low-pass filter if necessary to prevent transient signals from distorting the measurement. The filter should be chosen based on the frequency range of the expected electrical signals.
Finally, check your design for safety. Ensure that the measuring components and any associated wiring can handle the maximum expected flow. Overloading the system can damage components or lead to inaccurate readings. Always include protection mechanisms such as fuses or circuit breakers when working with high-voltage systems.
How to Design a Simple Current Sensor Circuit
Start by selecting a shunt resistor or Hall effect sensor based on your voltage and current measurement needs. A shunt resistor is a simple and cost-effective choice for low-power applications, while Hall effect sensors are ideal for high-precision, non-invasive measurements. For low-voltage circuits, choose a low-resistance shunt to minimize power loss.
Next, place the measuring component in series with the load to detect the electrical flow. If using a shunt resistor, calculate the expected voltage drop using Ohm’s law (V = I x R) to match the value with the input range of your voltage measurement device, such as an ADC. For Hall effect sensors, connect the device in parallel to the conductor, ensuring it can detect the magnetic field generated by the flow.
After selecting and positioning the sensor, use an operational amplifier to amplify the signal from the resistor or sensor. This allows for more precise measurements, especially in low-current applications. Be sure to calibrate the system by testing with known current values and adjusting the amplification level to ensure accurate readings across the measurement range.
