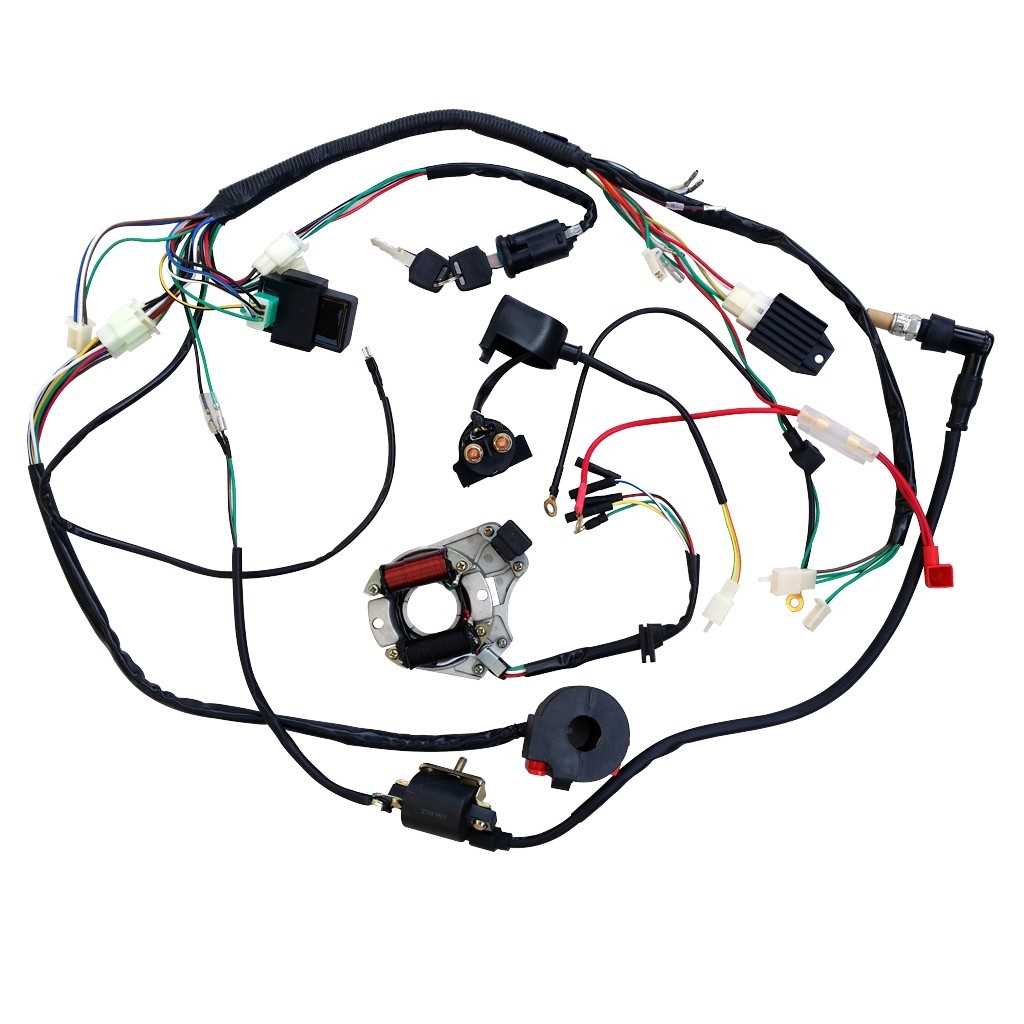

Use a clear electrical layout map of the quad’s harness before touching a single connector. The small four-stroke engine platform used on many budget youth quads relies on a simple 12-volt system with a magneto stator, CDI ignition unit, starter relay, and regulator/rectifier. A proper circuit chart shows the color-coded leads between these components and prevents random testing that can burn the ignition module or short the charging unit.
Most machines in this class follow a predictable harness structure. Yellow and white leads typically exit the stator and feed alternating current into the regulator module, while a red wire routes stabilized voltage toward the battery. The ignition controller usually receives a black/red trigger line from the magneto pickup coil, plus a ground path through the frame. Recognizing these colors on the circuit map allows quick tracing of no-spark issues, weak charging, or starter relay failures.
A reliable connection chart also shows the routing for the handlebar controls. The kill switch normally interrupts the ignition controller through a black-white lead that grounds the signal line. The electric starter button sends current to the relay through a yellow-red control wire, which then connects battery power directly to the starter motor. Without a harness scheme that labels these routes, troubleshooting often turns into blind connector swapping.
Printed circuit maps distributed with many Chinese-built utility quads also include the lighting and accessory lines. Headlamp power commonly travels through a brown supply lead with green ground returns, while the battery charging path feeds through the regulator output before reaching the fuse holder. Keeping this electrical blueprint nearby makes maintenance faster and reduces the chance of damaging the ignition controller, stator coil set, or voltage stabilizer.
Chinese Youth Quad Electrical Layout: Practical Guide for Fault Finding and Setup
Use a multimeter before replacing any part: check battery output (12.4–12.8 V with engine off) and confirm continuity along the harness between ignition switch, starter relay, and ground point on the frame. A drop below 11.5 V during starter engagement usually signals a weak battery or corroded terminal rather than a failed starter motor.
Trace each colored lead against the electrical layout sheet that usually accompanies small Chinese quads. Color coding is typically consistent across many models, which allows quick identification of circuits.
- Red – battery positive feed
- Green – frame ground
- Black – switched power from ignition key
- Yellow – lighting circuit output from stator
- Blue/white – trigger signal from pickup coil
If the engine cranks but produces no spark, inspect the ignition control unit connections and the pickup sensor near the flywheel. Measure resistance between the pickup leads; values around 90–140 ohms are common. Infinite resistance usually indicates a broken sensor lead or internal coil damage. Also check the engine stop switch on the handlebar, because a grounded kill line prevents ignition output.

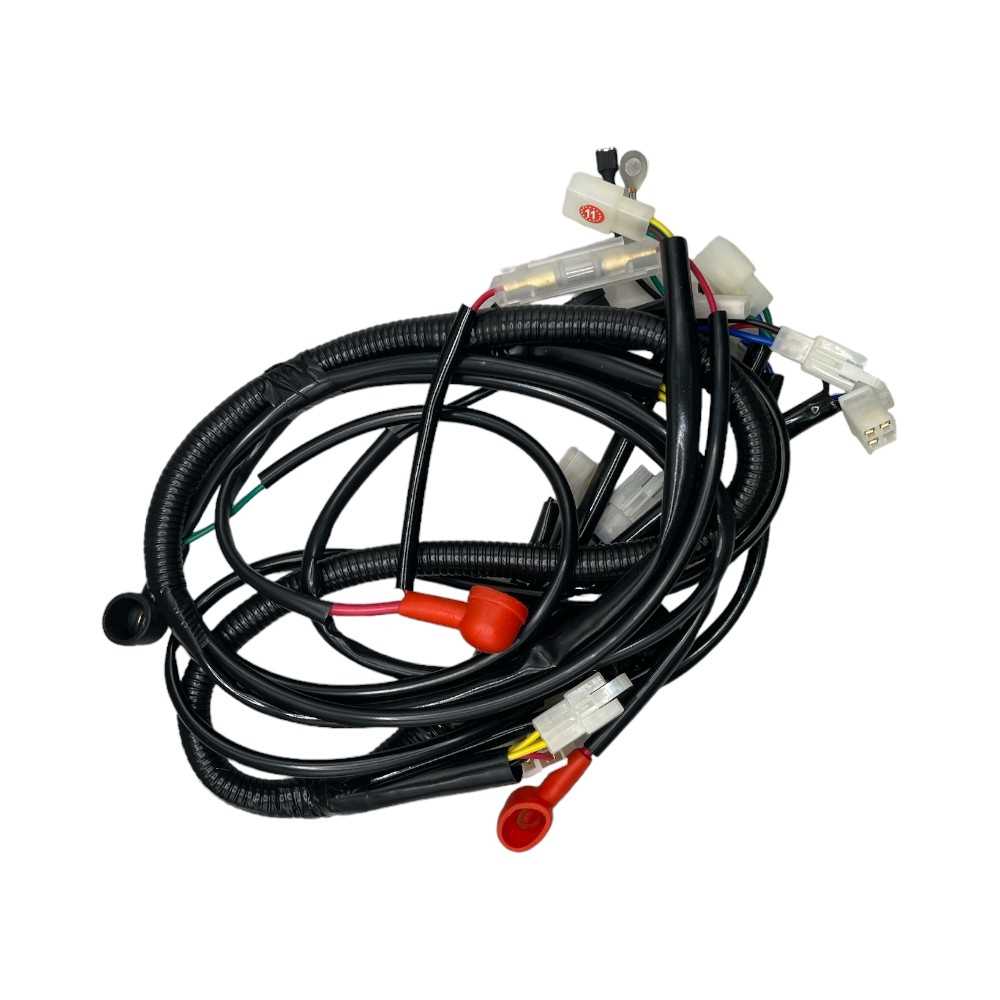

Harness installation requires clean routing along the frame tubes to prevent abrasion and heat damage. Secure the loom with rubber-lined clamps rather than plastic ties wherever it passes close to the cylinder head or exhaust. Maintain at least 30–40 mm clearance from hot metal surfaces. Connectors should click firmly into place; loose plugs cause intermittent faults that appear only during vibration.
Lighting and charging faults often originate at the stator connector under the front plastics. Inspect for melted insulation or darkened pins. A healthy stator coil commonly produces 20–50 V AC at moderate engine speed when measured across the yellow leads.
- Disconnect the regulator/rectifier plug.
- Run the engine at mid throttle.
- Measure AC voltage between stator output wires.
- If voltage appears but the battery does not charge, replace the regulator unit.
For long-term reliability, apply dielectric grease to each connector and add a dedicated ground strap from engine block to frame if electrical behavior becomes inconsistent. Many compact quads rely on thin factory grounding points; an additional braided strap reduces voltage drop and stabilizes ignition and lighting performance.
How to Read a Small-Displacement Quad Electrical Schematic: Identifying Ignition, CDI, and Charging Circuit Connections
Trace the ignition feed first: locate the line leaving the key switch and follow it toward the ignition control module (often labeled CDI). On most compact four-stroke quads from Chinese manufacturers, this conductor is black with a white stripe or solid black. It supplies switched voltage that allows the ignition module to operate. Nearby you will usually see a separate black/yellow lead running from the module to the ignition coil; that line carries the pulse that triggers spark. If the map shows a green conductor branching to frame symbols, that path represents ground return and must connect directly to the chassis. Any break or corrosion along these three paths–switched power, trigger output, ground–stops spark generation.
