To ensure proper maintenance and quick repairs, it’s critical to understand the different components of a restroom system. Identifying key sections like the flush mechanism, water supply connections, and waste outlets will save time when troubleshooting issues. A solid understanding of the layout will also prevent unnecessary replacements by highlighting which parts are responsible for specific functions.
The flush valve, for instance, controls water flow from the tank to the bowl, and its failure can lead to issues such as continuous running water. Meanwhile, the fill valve ensures the tank refills after every flush. Both are integral to the system’s operation. Keep an eye on the water supply line to avoid leaks that can disrupt the entire function.
When examining the internal mechanisms, it’s important to recognize the importance of the tank-to-bowl gasket, which seals the system and prevents water from leaking onto the floor. A worn-out gasket can cause significant damage to surrounding fixtures and increase water bills. The drain assembly, which connects the bowl to the waste pipe, should also be inspected regularly to prevent blockages.

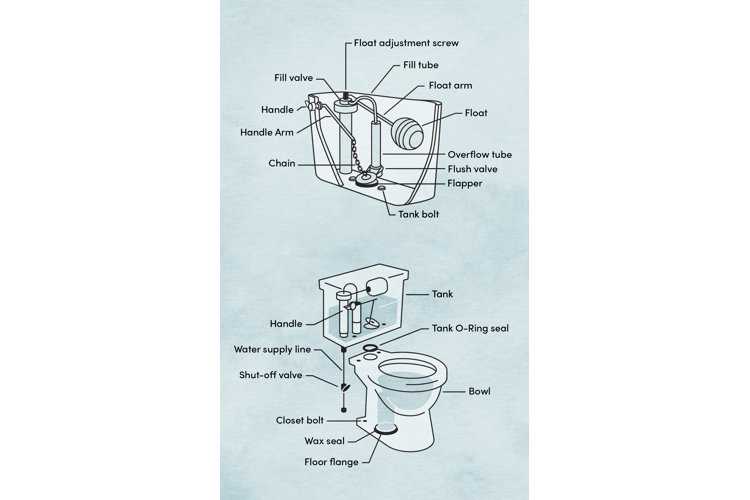

Key Components and Layout of a Restroom System
The flushing mechanism is the most critical element in any restroom setup. This component consists of the flush valve, which controls water release, and the overflow tube, ensuring water does not spill from the tank. When the system fails to flush correctly, often it’s due to issues with these parts, such as wear on the rubber seal or mineral buildup blocking the valve.
Another essential section is the water supply assembly, including the fill valve and float mechanism. The fill valve controls the water intake after each flush, while the float ensures that the correct water level is maintained in the tank. If the water level is too high or low, the float may need adjustment or replacement.
The drain line, connecting the basin to the waste pipe, is prone to blockages. Regular checks for leaks or cracks in the connections can prevent serious disruptions. A damaged seal in the drain assembly could result in unpleasant odors and inefficient waste removal, often requiring a full replacement of the affected seals.
The seal between the tank and the bowl is another critical area. Over time, the gasket can degrade, leading to water leaks that cause damage to surrounding fixtures. Replacing the gasket regularly ensures the system remains watertight, preventing additional water damage and minimizing maintenance costs.
Understanding the Key Components of a Restroom System
The flush valve is the core element responsible for releasing water into the bowl. It’s activated by the handle and, in many setups, controls the flow based on the water level in the tank. If the valve is worn or clogged, the system may fail to flush properly. Regular inspection of the rubber flapper or diaphragm inside the valve is necessary to ensure smooth operation.
Another critical piece is the fill valve, located inside the tank. It controls the water flow back into the tank after each flush. If this valve becomes faulty, it may result in an overfilled or underfilled tank, leading to inefficient flushing or even leaks. Check for any signs of water leaking around the valve or malfunctioning float mechanisms.

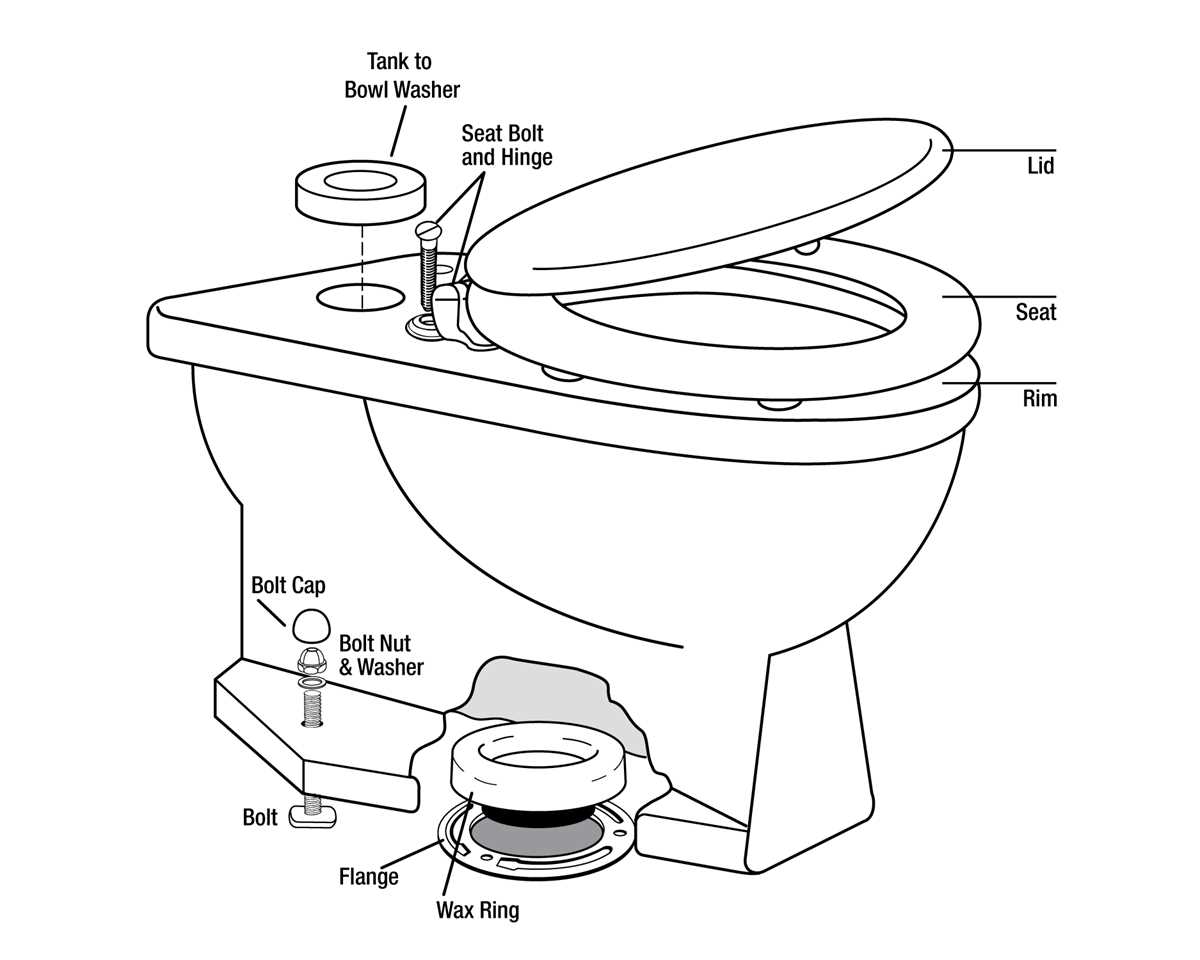

The tank-to-bowl gasket is a small but important component. It creates a water-tight seal between the tank and the bowl, preventing leaks from the base. Over time, these gaskets degrade, especially with constant exposure to moisture and pressure. Replacing this gasket is necessary to avoid water damage to the floor and surrounding areas.
Waste outlet connections are crucial for the proper removal of waste. These pipes often get clogged with debris over time. Periodically check the waste pipe for any signs of buildup or blockages. Ensuring that the connections are secure will prevent any leaks or waste backflow issues.
How to Identify and Replace Common Toilet Parts in Commercial Settings
When the flush mechanism fails, the most likely culprit is the flush valve. To check, remove the tank lid and inspect the rubber flapper for wear. If it appears cracked or corroded, replace it by detaching it from the chain and installing a new one. Ensure the new flapper is compatible with your model to avoid improper sealing.
If water constantly runs into the bowl, the fill valve might be malfunctioning. Start by turning off the water supply and draining the tank. Remove the old fill valve by disconnecting the water supply line and unscrewing it from the tank. Install the new valve by following the manufacturer’s instructions, making sure it’s positioned correctly to prevent leaks.
Leaky seals between the tank and the bowl can cause water damage. To replace the gasket, first drain the tank and disconnect the water supply. Remove the tank from the bowl by unscrewing the mounting bolts. Replace the worn gasket with a new one, ensuring it aligns properly with both the tank and bowl, and reassemble the unit.
Blocked waste lines are common in high-traffic restrooms. To clear a clog, use a plumber’s snake or auger to break up debris in the drain. If the clog persists, disconnect the waste pipe from the base and check for obstructions. If necessary, replace worn-out connections or seals to restore proper flow.
