Complete 36 Volt Club Car Wiring Guide and Troubleshooting

club car wiring diagram 36 volt

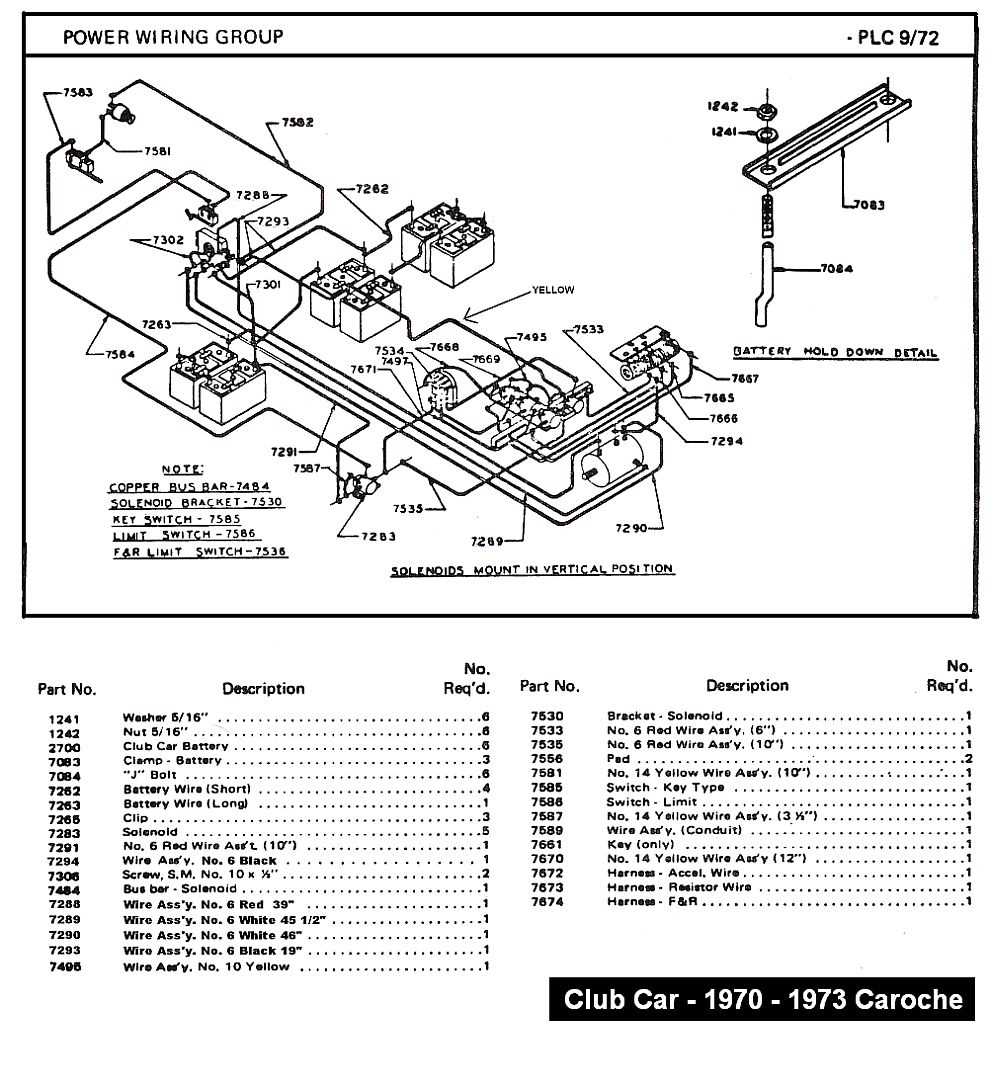

For anyone looking to set up or repair their electric golf cart, understanding the electrical system is key. Start by ensuring that the battery pack, typically made up of six 6V batteries, is connected properly. Each connection must be secure and free from corrosion to avoid voltage loss. Pay attention to the wiring layout, where positive and negative terminals need to be properly aligned to prevent shorts or faulty operation.

When installing or troubleshooting, always check for common issues like loose connections or worn-out components, which can lead to inconsistent performance. The solenoid, controller, and motor are the main components that receive power from the battery pack and regulate its flow. Make sure each part is wired correctly and that the system is grounded properly to avoid damage to sensitive electronics.

If you’re unsure about the wiring process, use a clear reference, like a manual or a specific wiring diagram, to guide the setup. Testing the system after each change is crucial. Use a multimeter to measure the voltage at different points and ensure everything is running as expected. With careful attention, you can successfully assemble or repair the electrical components and ensure your golf cart operates smoothly.

HTML

36-Volt Electric Vehicle Electrical Setup

club car wiring diagram 36 volt

Begin with ensuring that the battery pack has a consistent 36V output. This is crucial as any voltage discrepancies could lead to performance issues or damage to the system. Regularly check the individual cells for damage, and replace any faulty batteries to maintain efficiency.

In the power system, always verify the controller’s functionality. The controller is responsible for regulating the flow of electricity from the battery to the motor. A malfunctioning controller will disrupt the vehicle’s operation, often causing jerky acceleration or a complete failure to run. Testing the controller’s voltage input and output can help determine if it’s functioning correctly.

Motor Connections and Maintenance

The motor must be wired to receive power from the controller and the batteries. Check the connections between the motor, controller, and battery pack. Loose or corroded terminals can cause inconsistent power delivery, leading to erratic movement or complete failure to start. Periodically clean and tighten these connections to avoid any issues.

When replacing parts of the electric propulsion system, always follow the manufacturer’s specifications. Using non-approved components can lead to inefficiencies or hazards. For instance, using wires with improper gauge may cause overheating or insufficient power transmission, risking damage to other electrical parts.

For the switch and accelerator pedal, ensure they are properly integrated into the system. The accelerator is a variable resistor that regulates the amount of power reaching the motor. Over time, dirt and corrosion can cause the resistor to fail, resulting in unpredictable power delivery. Regular maintenance of these components can ensure smoother and safer operation.

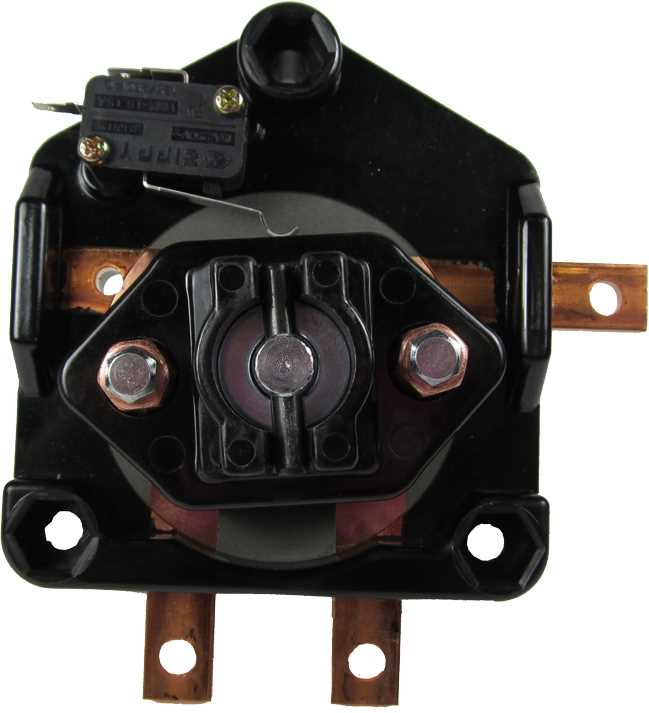

The solenoid plays a critical role in engaging the power system when the accelerator is pressed. This component must receive a consistent and correct voltage signal from the controller to activate the vehicle’s motor. Faulty solenoids are often the cause of “no power” issues. Check the solenoid’s operation with a multimeter to confirm it’s correctly activating the system.

Grounding and Short Circuit Prevention

Grounding the electrical system is another key area for safety and performance. An improper ground connection can lead to electrical shorts, damaging sensitive components like the controller or motor. Make sure the grounding wire is securely attached to the frame and in good condition to prevent any potential electrical hazards.

Inspect the entire system for potential shorts regularly. Look for exposed wires or connections that could come into contact with the frame or other conductive surfaces. A short circuit in the system can lead to overheating or total failure, making it important to address these issues as soon as possible.

HTML

Understanding the Key Components of a 36 Volt Electric System

The battery pack is the heart of the system. A 36V setup typically includes six 6V cells connected in series. Properly maintaining these cells ensures long-term performance. Regularly check each cell’s voltage and replace any underperforming batteries to maintain a balanced system. Faulty batteries can cause uneven power delivery and reduced runtime.

Controller and Motor Integration

The controller regulates the flow of power from the battery pack to the motor. It ensures that the motor receives the appropriate amount of electricity based on input from the accelerator. An improperly functioning controller can cause issues like poor acceleration or inconsistent speeds. Always test the controller’s connections to verify that the voltage is flowing correctly.

The motor itself is responsible for converting electrical energy into mechanical movement. In a 36V system, it typically uses a series wound design for better efficiency. Check the motor’s brushes and armature for wear regularly. If these components degrade, it can lead to poor performance or complete motor failure.
