Start by identifying the correct terminals to ensure each wire is connected properly for your system. Begin with the ground wire, which is typically placed in the center, followed by wires for the main functions like lights, signals, and brakes.
Check each wire’s insulation for wear or damage before connecting them. Proper insulation is critical for safety, preventing electrical shorts and ensuring consistent performance. Replace any worn-out cables immediately.
Once everything is wired, test the system to confirm that the connections are working as expected. A quick check of the lights, signals, and brakes can save time and prevent potential issues on the road.
48 Volt Electrical System Wiring Guide
First, check the individual cells in the system to confirm they are connected in series, giving the correct voltage output. Each connection between the cells should be secure, free of corrosion, and well-insulated. If any terminals are loose or show signs of wear, clean and tighten them before proceeding.
After ensuring the connections between the cells are secure, connect the positive and negative leads to the main terminals of the electrical system. The positive lead should connect to the main power distribution block, while the negative lead will be attached to the chassis for grounding. Double-check for tight connections to prevent sparking or overheating during use.
If you’re adding additional components like a charger or a controller, ensure these are wired according to their specific requirements. Use the appropriate gauge wires and secure all connections with quality terminals. Incorrectly installed components can lead to power failures or even damage to the system.
After completing the setup, conduct a test by running the system through its paces. Turn on the power and check each component for proper functionality. If you notice any issues with power distribution, revisit the connections to identify any faults, and make adjustments as needed.
How to Identify the Correct Terminals for a 48 Volt System
Start by locating the main power distribution block and identify the terminals for both positive and negative connections. Typically, the positive terminal will be larger, and it is crucial to connect it to the power source. The negative terminal will often be smaller and is connected to the ground system.

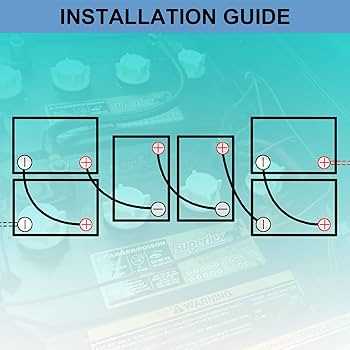

Next, confirm the sequence of connections between cells. A properly arranged system will have each terminal connected in series. The positive terminal from one cell should connect to the negative terminal of the next to maintain the required voltage. Check that the connections are tight and that no terminals are reversed.
If the system includes a charging port, it will often have a dedicated terminal for the charger’s input. This terminal is typically located near the top of the series, marked with a specific color like red or labeled accordingly. Be sure to match the charger’s connection to this designated terminal.
For any additional components such as controllers or switches, check the manufacturer’s instructions for the exact terminal placement. These components will often have their own designated terminals for control signals, ensuring proper operation of the system.
Use a multimeter to verify the connections. Set the multimeter to DC voltage and check between the positive and negative terminals of the system. The reading should match the expected voltage output. If it does not, review your connections for any miswiring.
Once all terminals are connected properly, ensure they are securely fastened to avoid any loose connections that could lead to performance issues or short circuits. Tighten any bolts and double-check all terminals for security before powering up the system.
