To properly connect multiple lighting fixtures to a power source, follow a few important guidelines. First, make sure the power is turned off before beginning any work. Then, use the correct gauge of wire for the load and ensure all connections are secure to avoid any loose contacts that may cause electrical faults.
When connecting fixtures, it is crucial to install them in a series or parallel configuration, depending on the number of lights and the type of installation. If you’re installing more than one unit, use the parallel connection method to ensure each fixture gets the same voltage for consistent brightness and performance. Always refer to the manufacturer’s instructions for correct placement of wires on the fixtures.
For a more streamlined installation, use a junction box or terminal block to connect multiple wires together. This will ensure that no wires are exposed, and the installation is safe and compliant with electrical codes. If unsure, it’s a good idea to consult an electrician to verify the setup.
Circuit Wiring Downlights Diagram 240V
For a safe and efficient setup, begin by confirming the power is off at the main switch before starting the installation. Use the correct gauge wire to support the load of multiple fixtures, and always ensure that the connections are secure to prevent any potential electrical faults or hazards.
To achieve proper voltage distribution, make sure each light is connected to the power supply in parallel. This ensures that each unit receives the same voltage and operates consistently. If you’re connecting several fixtures, a terminal block or junction box is recommended to organize the connections and avoid exposed wiring.
When laying out the connections, take care to follow any manufacturer’s guidelines for placement and wiring connections. If you’re unfamiliar with electrical work, it’s always best to have a licensed electrician inspect or handle the installation to guarantee safety and compliance with local regulations.
How to Connect Downlights to a 240V Power Supply
Start by ensuring the power is switched off at the breaker. Prepare the installation area by securely mounting the fixtures and checking the layout. Ensure that each light fixture is placed in a location where it has sufficient clearance for heat dissipation and avoids any obstructions.

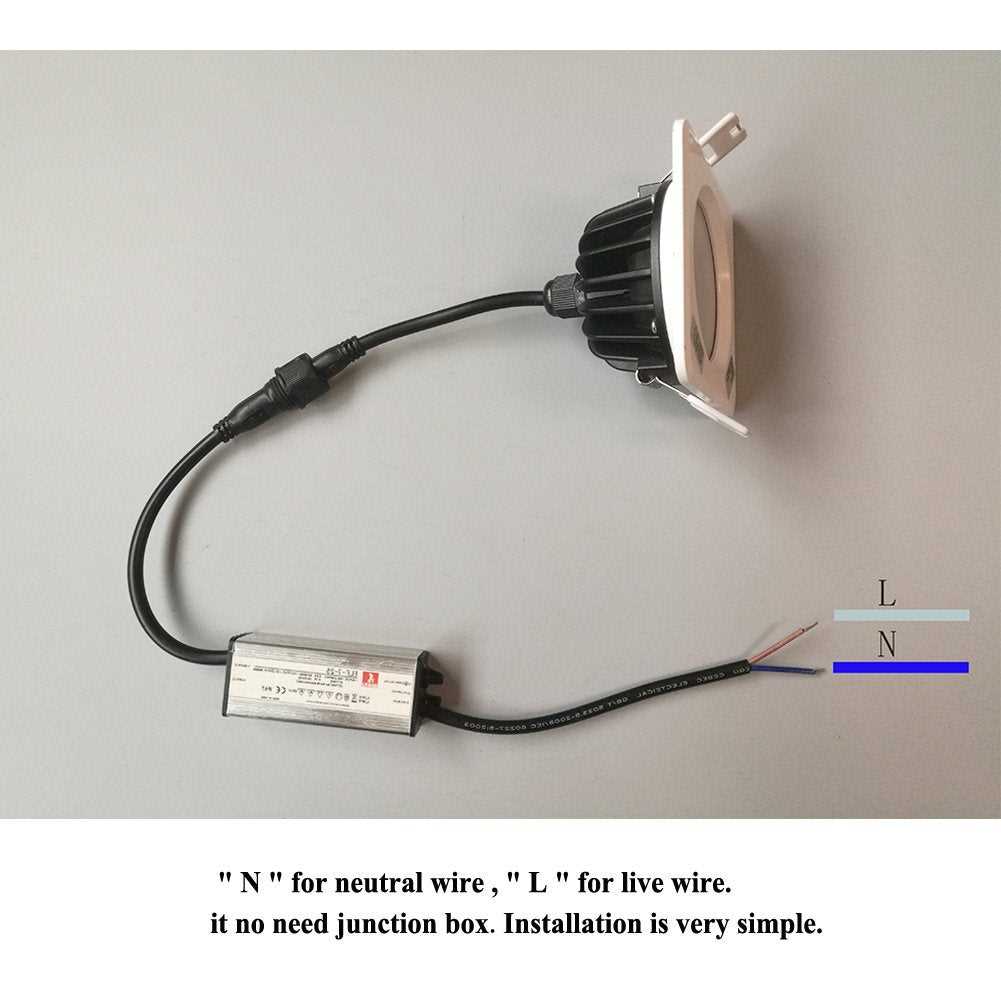

Connect the live (brown) wire from the power supply to the terminal of each fixture. Use the appropriate connectors to secure the connection and avoid any loose ends. Make sure to properly insulate all exposed wires to prevent short circuits or electrical hazards.
Next, attach the neutral (blue) wire from the supply to the neutral terminal on each fixture. Again, ensure the connection is tight and secure. Any wires not used for the fixture should be neatly grouped and insulated for safety.
Lastly, connect the earth (green/yellow) wire to the ground terminal. This step is crucial to ensure safety in the event of a fault. Once all connections are made, double-check that all wires are properly secured and insulated before restoring power to the system.
