Verify all fuses and relays before connecting the main power leads to the compressor and blower motors. A blown fuse can cause intermittent operation and damage to the control module.
Label each wire according to its function–power, ground, sensor, and switch connections. This prevents accidental cross-connections that can short circuits or trigger the system’s safety shutdown.
Route power and signal lines separately from high-current circuits like the starter or alternator. Use insulated clips to secure harnesses along the firewall or frame rails to reduce vibration and heat exposure.
After connections, test each component individually. Confirm the compressor engages, blower speeds respond to control input, and temperature sensors provide consistent readings under different engine loads and ambient conditions.
Vehicle Climate Control Electrical Guide
Start by inspecting all relays and fuses associated with the compressor and blower. Replace any components that show corrosion or melted contacts to ensure consistent operation.
Identify each connection point on the control module before attaching wires. Label leads for power, ground, switches, and sensors to prevent cross-connection errors that can cause shorts or sensor misreads.
Route high-current lines separately from low-voltage signal wires. Use insulated clamps or braided sleeves to protect against heat and vibration near the engine bay or under the dash.
- Connect the compressor clutch wire to the relay output.
- Attach the blower motor to the fan speed controller terminals.
- Verify temperature sensor leads are inserted into the proper input pins on the control unit.
- Secure all connectors with locking tabs or heat-resistant tape.
Testing and Verification
Check each component individually after installation. Engage the compressor and cycle through all blower speeds while monitoring sensor readings. Voltage should remain stable between 12 and 14.5 volts under normal operation.
Troubleshooting Common Issues
If the compressor fails to engage, inspect the relay, fuse, and clutch coil resistance. Blower speed problems often stem from worn potentiometers or loose connectors. Correcting these faults ensures reliable performance and prevents damage to the control module.
Identifying Components and Fuse Locations

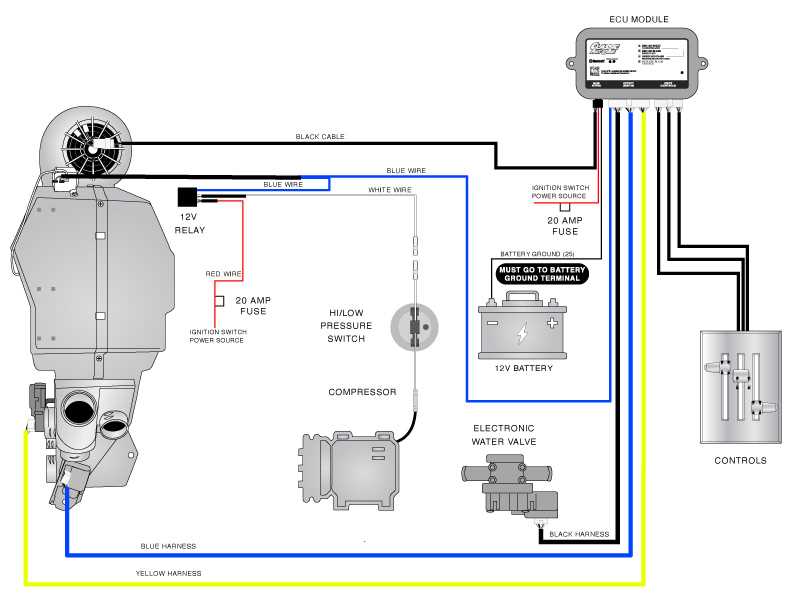

Locate the main control module under the dashboard or near the engine bay. Check the labeling on the cover to identify terminals for the compressor, blower, and sensors.
Inspect each relay and fuse associated with the cooling system. Fuses are usually rated between 10 and 30 amps; verify that each matches the specification printed on the panel or in the service manual.
Trace the power supply line from the battery to the fuse box. Ensure there are no signs of melting, corrosion, or loose connections that could affect system performance.
Identify the blower motor resistor or speed controller. This component controls the fan speeds and is often mounted near the blower housing. Check that the terminals are clean and firmly seated.
Locate the compressor clutch relay, typically near the engine compartment fuse box. Confirm the relay clicks when activated by the switch; a silent relay indicates a faulty coil or missing control voltage.
Mark sensor and switch connections for the cabin temperature and pressure sensors. Proper identification prevents miswiring, which can cause incorrect readings or trigger safety shutdowns.
Verify all connections visually and with a multimeter before powering the system. Continuity checks between fuses, relays, and modules ensure that the entire circuit path is intact and ready for operation.
