Complete Guide to CCTV System Circuit Setup and Connections

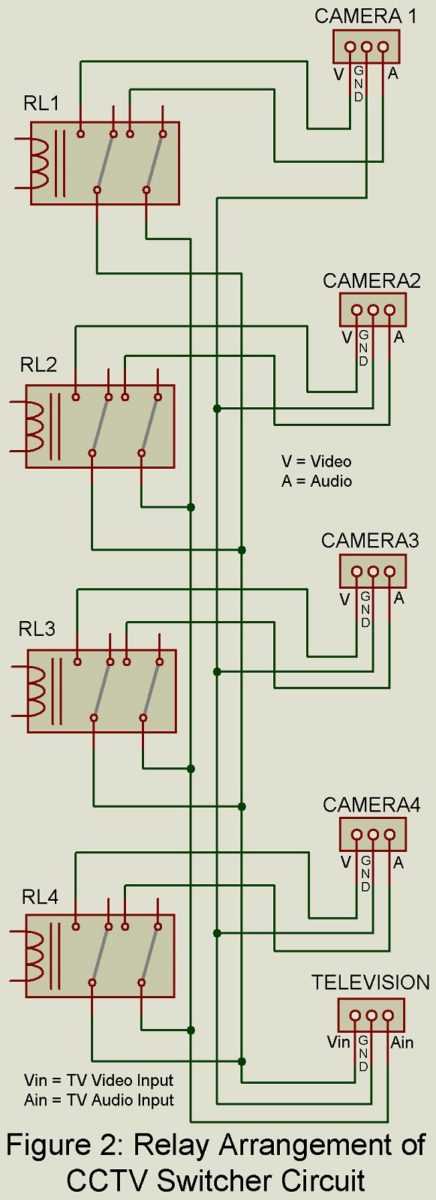

cctv circuit diagram

Begin by connecting the power supply to each camera, ensuring the voltage matches the device’s specifications. Use properly rated cables that can handle the required current, avoiding overheating and power loss. Make sure the connections are tight and well-insulated to prevent short circuits.

Next, connect the video output from each camera to the monitor or recording device. The cable length should be kept as short as possible to maintain signal quality, with secure connectors that prevent interference. Depending on the type of system, you may need coaxial, HDMI, or Ethernet cables for video transmission.

Lastly, test the entire system for functionality. Check that each camera feeds clear, stable video to the display and ensure the power supply is steady. Perform regular maintenance to inspect for wear, loose connections, or other issues that could affect performance over time.

Surveillance System Connection Guide

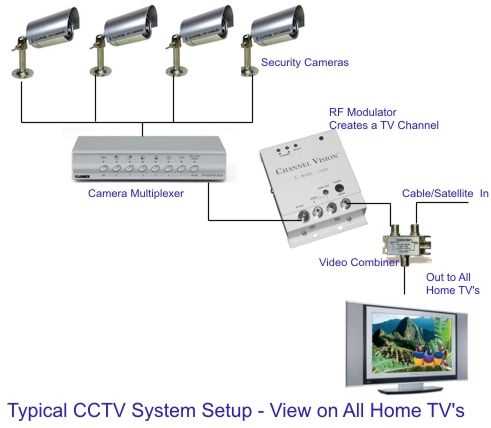

cctv circuit diagram

Start by ensuring that each camera is connected to a stable power source. Use wires that are rated for the expected load to prevent overheating. A poor connection can lead to camera malfunctions, especially in high-power setups, so always double-check the power ratings of both the cameras and the power supply.

Linking Video Output to the Display

Next, connect the video output from each camera to your recording or viewing device. For longer distances, use high-quality coaxial or Ethernet cables to avoid signal loss. It’s important to ensure that the video connection is secure to prevent flickering or interference in the image. Consider using signal boosters if the video signal needs to travel long distances to the monitor.

Power and Video Signal Integration

For systems requiring both video and power integration, use combined cables that offer both features in one. This can simplify the setup and reduce cable clutter, especially when running cables through walls or ceilings. Be sure that both the power and video signals remain isolated from each other to avoid interference.

After all connections are in place, verify the power and video feeds are working properly. A multimeter can help check the power output, while you can also test the video output by monitoring the live feed. Regularly inspect the system to ensure all components are functioning and free from corrosion or wear that may degrade performance over time.

How to Connect Cameras to a Power Source

Start by determining the power requirements of the cameras. Each unit typically has a voltage and current rating. Match these with a suitable power supply. A power supply with higher current capacity than needed will prevent overloading. For best performance, use a regulated power adapter that ensures stable voltage.

Next, use the appropriate cable gauge for the current being drawn. Thin cables may cause voltage drops, leading to power issues. If your system involves multiple cameras, consider using a power distribution box to manage connections, ensuring each camera receives the proper voltage and current.

Connecting Power to Each Camera

For each camera, connect the positive terminal of the power supply to the positive terminal of the camera, and the negative terminal of the power supply to the negative terminal of the camera. Ensure the polarity is correct to avoid damaging the camera or causing short circuits. Use connectors or terminal blocks for a secure and reliable connection.

Powering Multiple Cameras

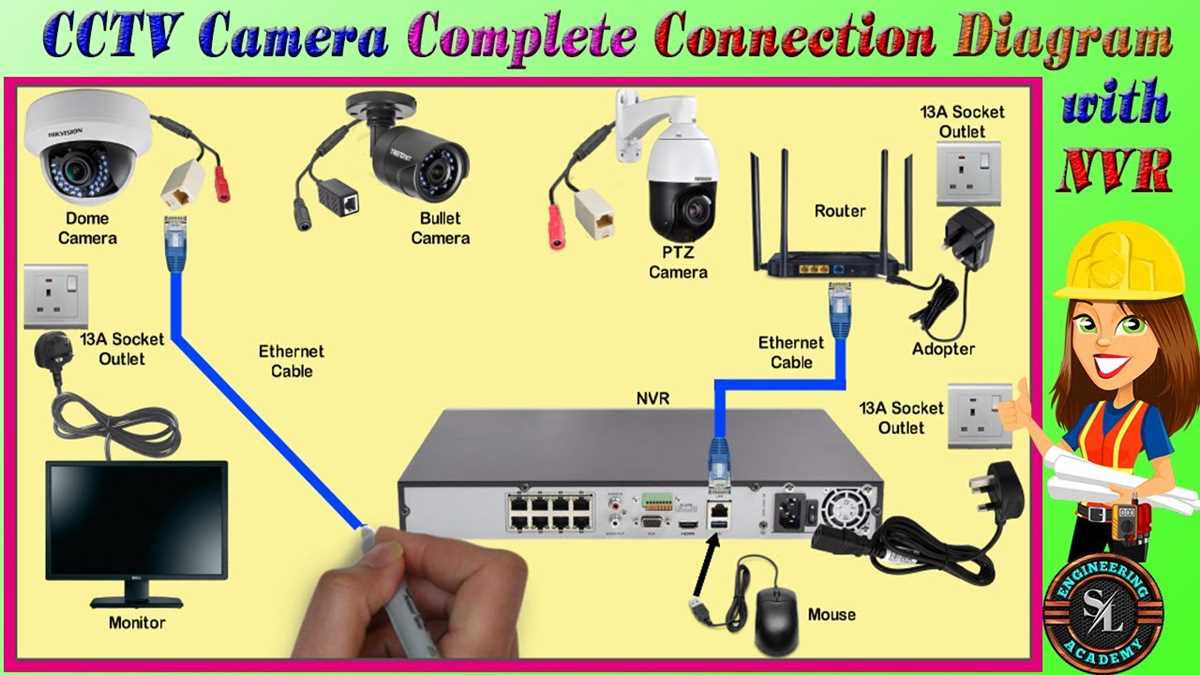

cctv circuit diagram

If connecting multiple cameras, it’s best to wire them in parallel, ensuring each unit gets its own power supply. A distribution panel can simplify this by consolidating multiple inputs into one output, minimizing cable clutter and making the setup more organized. Ensure each camera gets its required power rating to avoid under- or over-voltage.

  • Use a central power supply to distribute voltage to each camera individually.
  • For installations with long cable runs, use higher gauge wire to prevent voltage loss.
  • Double-check all connections for tightness and proper insulation.

After making all connections, test the system by powering it up. Monitor each camera for proper functionality. If any camera is not working, recheck the connections and power supply. It’s also important to check the power supply voltage with a multimeter to confirm it is within the acceptable range for all devices.

Finally, always ensure the power cables are well insulated and protected from wear. Use conduit or cable protectors in exposed areas, especially outdoors, to prevent damage from the environment. Regularly inspect the power supply and cables for signs of wear or corrosion to maintain system integrity.
