Start by connecting the power wire to the vehicle’s battery. Make sure the connection is secure to avoid interruptions in power supply. The power wire typically needs to be routed through a fuse to protect the system from potential overloads.

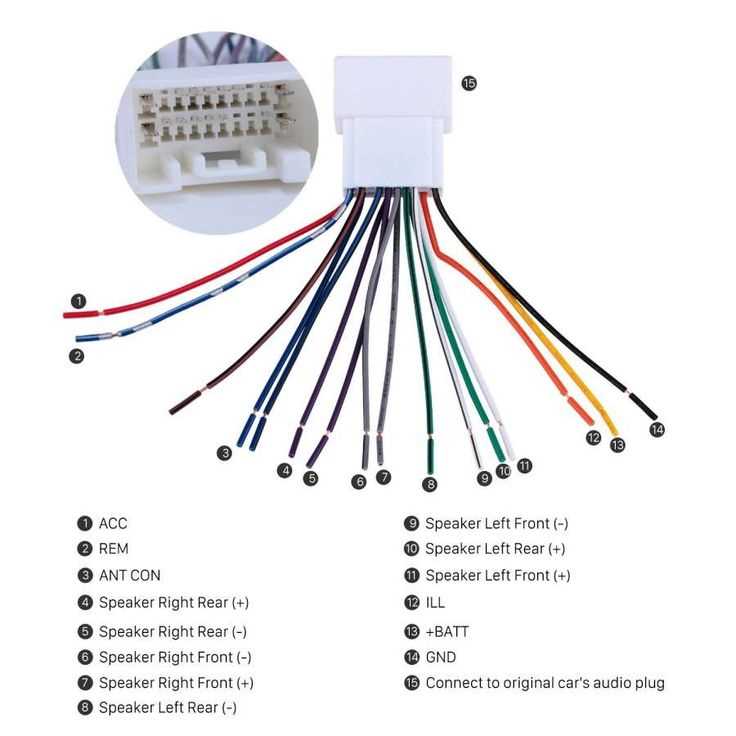

Next, connect the speaker wires to the corresponding terminals on the unit and the speakers. Double-check that the polarity is correct, as mismatched connections can result in poor sound quality or no output at all.
Ensure the ground wire is connected to an unpainted metal surface on the vehicle frame. A solid ground connection is necessary to complete the circuit and prevent electrical interference from affecting the system’s performance.
Connecting Your Audio System Properly
Start by ensuring the power wire is securely connected to the vehicle’s battery. It’s recommended to use a fuse to protect the system from any power surges. This fuse should be installed as close to the battery as possible to prevent any electrical issues.
Next, connect the ground wire to a metal surface on the vehicle frame. Choose a point that is clean, free from rust or paint, and as close as possible to the audio unit for a solid ground connection. A proper ground will ensure smooth operation and prevent electrical interference.

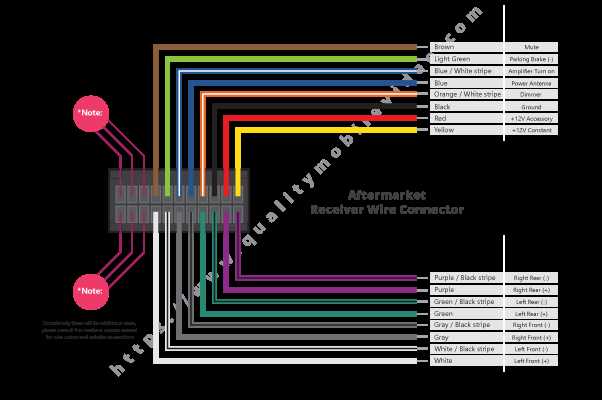

After grounding, move on to connecting the audio output wires. Each speaker terminal must be connected to the corresponding speaker wire, ensuring proper polarity. A mismatch in polarity can cause poor sound performance or no sound at all. Double-check the connections before tightening them.
- For amplifiers, use thicker wires that can handle higher currents.
- Ensure the connectors on the wires are crimped properly to avoid weak connections.
- If you’re installing a subwoofer, make sure to follow the amplifier’s manual for the correct wiring configuration.
Once all the connections are made, test the system by powering it on and checking the functionality of each speaker. If there’s no sound, check the connections again, particularly the power, ground, and speaker wires. In case of distortion, adjust the amplifier settings or ensure that the wires are not touching metal parts that could cause short circuits.
How to Connect the Audio Unit to the Power Supply
Begin by connecting the power wire to the positive terminal of the vehicle’s battery. This is the primary source of power, so it’s important to use a thick wire that can handle the current demands of the system. Install a fuse in-line with the power wire to protect the audio unit from power surges.
Fuse Placement and Wire Safety
Place the fuse as close to the battery as possible, ideally within 18 inches. This ensures that in case of a short circuit, the fuse will blow before damage occurs to the system. Make sure to use the correct amperage for your audio equipment, which is typically specified in the user manual or wiring guide.
After connecting the power wire and fuse, route the wire carefully through the vehicle, avoiding sharp edges that could cause the wire to fray. Once the wire is in place, connect it to the power input of the audio unit. Tighten the connection securely, and double-check that the wire is not in contact with any metal surfaces, which could cause a short circuit.
