To ensure the proper operation of a soil compaction system, it’s crucial to understand the key components involved. The roller assembly plays a major role in evenly pressing the soil to promote seed-to-soil contact. If you notice uneven compaction or performance issues, check the rollers for wear or damage and replace them as necessary.
Another important element is the hitch and frame, which connect the equipment to the tractor. This part should be carefully maintained to ensure stability and accurate movement during operation. Inspect the hitch for cracks or bent parts, and ensure the frame is securely attached to prevent any issues during use.
The bearing and axle units are vital for smooth movement. If you hear grinding noises or experience resistance during operation, these components may need lubrication or replacement. Regular inspection of the bearings and axles will help maintain optimal performance and reduce the risk of breakdowns.
Key Components and Their Functions in a Soil Packager System
The roller assembly is a central part of the system, responsible for pressing the soil evenly. Inspect the rollers for signs of wear, such as cracks or bending. If the rollers are not rotating freely, they may need lubrication or replacement to maintain uniform compaction.
The frame provides structural support and must be kept secure to ensure stability during operation. Check for any loose bolts or signs of stress on the frame. A damaged frame can lead to poor performance, so tighten connections regularly or replace any parts that show wear.
The hitch connects the machine to the tractor and allows for controlled movement. If the hitch is loose or damaged, it can affect the alignment and efficiency of the system. Ensure that the hitch is tightly secured, and look for signs of bending or rust that could compromise its functionality.
Axles and bearings facilitate smooth movement of the entire system. Regularly check for any resistance or noise from the bearings, which could indicate that lubrication is needed. If the bearings are worn out or the axles are bent, replace them immediately to avoid operational delays.
How to Identify and Replace the Roller Assembly Components
To identify issues with the roller system, start by inspecting the surface for visible wear such as cracks or uneven surfaces. If you notice any damage, the roller may need to be replaced.
Follow these steps to replace the roller assembly components:
- Disconnect the equipment from the tractor and ensure the area is clear of debris.
- Locate the roller mechanism, which is typically attached to the frame with bolts. Inspect the bolts for tightness and remove them carefully.
- Once the bolts are removed, detach the roller from the frame and examine the axle for any signs of wear or rust. If the axle is compromised, it should be replaced along with the roller.
- Take the old roller to your local supplier or check the specifications to ensure the replacement matches in size and material.
- Install the new roller onto the frame and secure it with the bolts. Tighten each bolt evenly to avoid damaging the frame or the roller assembly.
- Check the roller’s movement to ensure it spins freely. If necessary, lubricate the axle before final tightening.
Regularly inspect the roller system for wear and tear. Keeping the rollers in good condition ensures proper soil compaction and smooth operation of the machine.
Understanding the Function of the Hitch and Frame in the System
The hitch connects the machine to the tractor, providing stability and controlled movement. Inspect the hitch for any signs of wear, such as bent components or loose bolts. A loose or damaged hitch can lead to misalignment and reduce operational efficiency. Ensure the hitch is tightly secured before use to avoid any issues during fieldwork.
The frame serves as the backbone of the system, supporting various components like the rollers and axles. Over time, stress or heavy use can cause cracks or bends in the frame. Regularly check for signs of damage, particularly around the welds or joints, as these areas are prone to fatigue. If the frame is compromised, it can lead to uneven soil compaction and may cause further damage to other parts.
To maintain both the hitch and frame, periodically tighten all fasteners, inspect for rust or corrosion, and replace any worn parts. Keeping the hitch and frame in optimal condition ensures proper alignment, better performance, and a longer lifespan for the entire system.

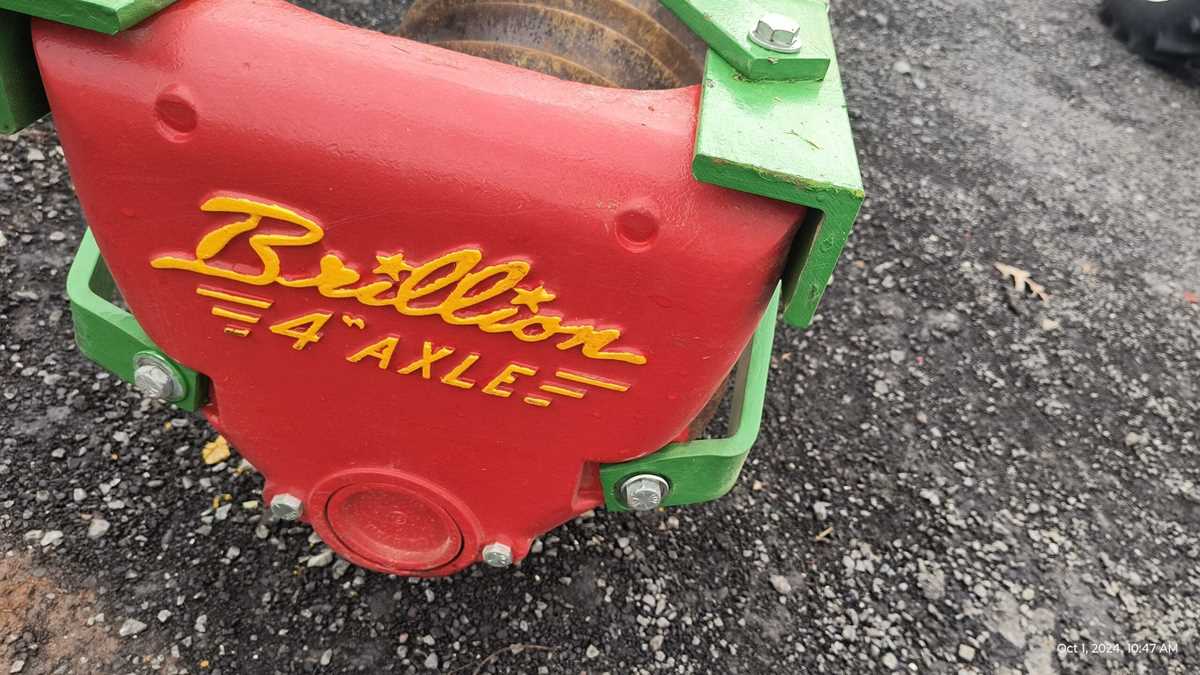

Steps to Maintain and Troubleshoot the Bearing and Axle Units
Start by inspecting the bearings and axles for any signs of wear or damage. If you notice unusual noise or resistance while the system is in motion, it’s a sign that the bearings may need lubrication or replacement. Check for any visible cracks or rust on the axle shaft, which could indicate structural damage.
To maintain the bearings, clean the area thoroughly and apply a suitable lubricant. Make sure the lubricant is designed for high-load conditions to ensure smooth operation. If the bearing is worn out or damaged, remove the old one by loosening the retaining clips or bolts, then install the new bearing in its place. Ensure that it fits tightly to prevent misalignment.
Next, inspect the axles for proper alignment. If an axle appears bent or misaligned, it should be replaced immediately, as this can affect the system’s overall performance. Align the axle correctly before reinstalling to avoid any operational issues.
Regularly check both the bearings and axles for signs of wear, corrosion, or damage. This proactive maintenance will help extend the lifespan of the components and ensure smooth, reliable performance during use.
