To maintain and repair a small engine, it’s critical to first understand the layout and function of its components. Each piece plays a specific role in ensuring smooth operation and longevity. Familiarize yourself with the most common parts to streamline any repair or replacement process.
Start by focusing on the key components such as the carburetor, air filter, ignition system, and fuel pump. These are typically the first parts to examine if performance issues arise. Replacing worn-out components early can prevent more costly repairs later on and keep the machine running at peak efficiency.
Refer to detailed diagrams for a visual guide on part identification and their connections. A clear diagram will save time and ensure the correct reassembly of parts, especially when replacing internal components like the valve spring or piston. When in doubt, consulting the manufacturer’s manual will give you a step-by-step approach to maintenance tasks.
Briggs and Stratton 09P702 Components Breakdown
Start by replacing the air filter regularly to ensure proper airflow and prevent debris from entering the combustion chamber. A clean filter improves engine performance and longevity.
Examine the carburetor for clogs and ensure it’s free of buildup. Replacing the carburetor gaskets helps maintain fuel efficiency and prevent leaks, which could lead to power loss.
Inspect the ignition system, particularly the spark plug. Worn or dirty spark plugs cause misfires and starting issues. Replacing spark plugs annually is a simple fix to maintain reliable ignition.
Pay attention to the fuel pump. Over time, these can wear out and cause fuel delivery issues, leading to engine stalling. Regular inspection and timely replacement of the pump are key to avoiding unnecessary repairs.
Finally, check the valve spring and piston regularly. These internal components need to function correctly to maintain compression and overall engine health. Replacing worn parts at the first sign of trouble can prevent costly damage later on.
How to Identify Key Components in the Briggs and Stratton 09P702 Model
Start by locating the air filter. It is typically situated near the carburetor and is essential for ensuring proper airflow to the combustion chamber. A clean filter guarantees efficient operation and prevents dirt from damaging the internals.
Next, inspect the fuel tank and fuel line. These components are crucial for maintaining steady fuel flow to the carburetor. Look for any cracks or leaks in the fuel line that might lead to fuel loss or contamination.
The spark plug should be checked for wear or corrosion. It is an important part of the ignition system and must be in good condition for proper firing. If the engine has trouble starting or misfires, the spark plug is one of the first parts to check.

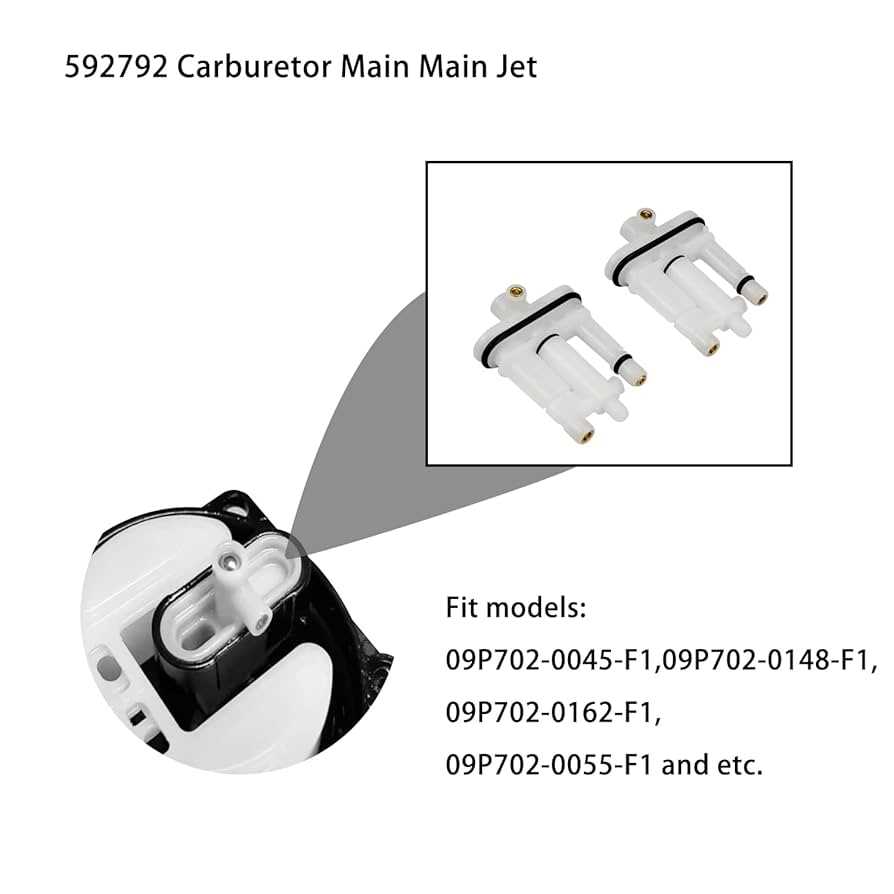

The carburetor is another critical element. It controls the mixture of fuel and air before combustion. If you notice irregular engine performance, it may be due to a clogged or misadjusted carburetor.
Lastly, examine the governor assembly. It helps regulate engine speed by adjusting the throttle based on load. A malfunctioning governor can lead to inconsistent speeds or engine stalling under load.
Step-by-Step Guide for Replacing Common Components in Briggs and Stratton 09P702
To begin, disconnect the spark plug wire to ensure safety before starting any maintenance.
1. Replacing the Air Filter:
- Locate the air filter cover, typically secured with screws.
- Remove the cover and pull out the old filter.
- Insert the new filter, ensuring it fits snugly in place.
- Reattach the cover and tighten the screws securely.
2. Replacing the Fuel Line:
- Locate the fuel line that runs from the tank to the carburetor.
- Using pliers, carefully disconnect the old fuel line from both ends.
- Cut the new fuel line to the appropriate length and attach it to the fuel tank and carburetor.
- Ensure there are no kinks or leaks in the new line before reconnecting the fuel supply.
3. Replacing the Spark Plug:
- Remove the spark plug wire and use a spark plug wrench to remove the old plug.
- Inspect the new spark plug to ensure it matches the specifications.
- Thread the new spark plug into the socket and tighten it using the wrench, but avoid overtightening.
- Reconnect the spark plug wire securely.
4. Cleaning or Replacing the Carburetor:
- Remove the air filter to access the carburetor.
- Disconnect the fuel line from the carburetor.
- Unscrew and remove the carburetor mounting bolts.
- If cleaning, disassemble the carburetor and clean the internal components with carb cleaner.
- If replacing, install the new carburetor by reversing the removal steps, ensuring a tight seal.
5. Adjusting the Governor:
- Locate the governor linkage and ensure it is free from any obstructions.
- Adjust the tension on the governor spring as needed to achieve the correct engine speed.
- Test the engine performance to ensure the governor is functioning properly.
Finish by checking the oil level and ensuring all components are securely reassembled. Reconnect the spark plug wire and perform a final check before starting the engine.
