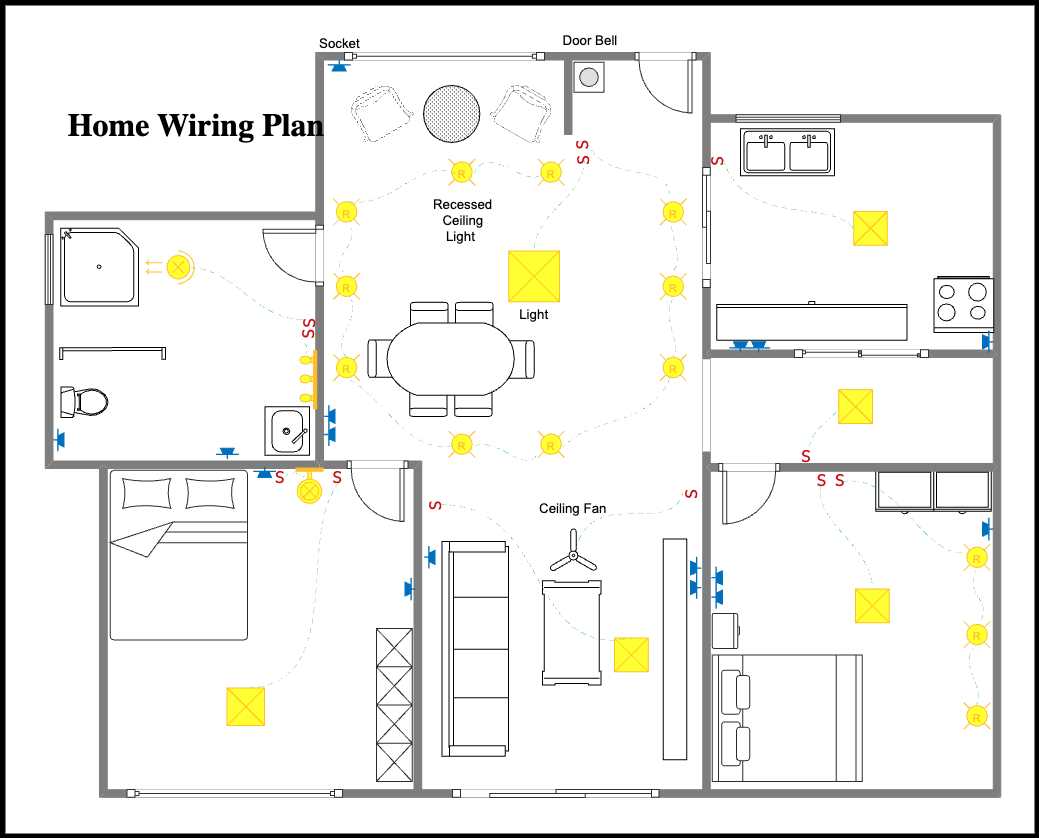

Start by mapping out the placement of outlets and light fixtures before connecting any wires. This will help ensure that power distribution is optimized and that the room’s electrical components are positioned conveniently for use. It’s important to account for the layout of furniture and other items to avoid obstructing switches or outlets.
For the electrical connections, use the appropriate wire gauge based on the current requirements of each device. Thin wires are inadequate for powering multiple devices and can lead to overheating. Choose wire sizes based on the wattage or amperage rating of the devices you’ll be connecting to prevent fire hazards and maintain safety.
When running cables, keep in mind that grounding is a critical safety feature. Ensure all outlets and switches are properly grounded to avoid electrical shocks. Additionally, each outlet should be checked for proper function using a tester before you connect the power. Always double-check all connections to ensure they are tight and properly insulated.
Electrical Setup for Your Room
Start by planning where outlets and fixtures will be placed. Measure distances between key areas to ensure that power distribution remains functional. This will help you avoid unnecessary extensions or the use of additional power strips, keeping the setup clean and efficient.
Next, consider the power requirements of all devices in the room. For standard appliances, using 14-gauge wire should be sufficient, but for more energy-demanding equipment, like air conditioners or large lamps, opt for a heavier gauge to handle the load without overheating.
Grounding is a key safety feature. Ensure each outlet is grounded properly by running a separate ground wire. A loose or ungrounded connection increases the risk of electrical shock or fire, so check all connections before closing up any electrical panels or outlets.
When connecting multiple outlets, you can use a “daisy chain” method, where the wire runs from one outlet to the next. This method is cost-effective but requires careful attention to ensure the circuit is not overloaded. Use a circuit breaker that matches the amperage of the devices being powered.
Switches should be installed with attention to the type of light or appliance they control. If you have multiple switches for different lights, label each switch to ensure that the correct light is turned on when needed. Using a single switch for multiple lights can simplify the setup and reduce the number of switch plates on the wall.
Finally, make sure to test all connections before powering up the circuit. Use a multimeter to check voltage and ensure each outlet and switch is properly functioning. A few moments of testing can save you from having to troubleshoot later. After testing, cover outlets and switches with faceplates and ensure no exposed wires are visible.

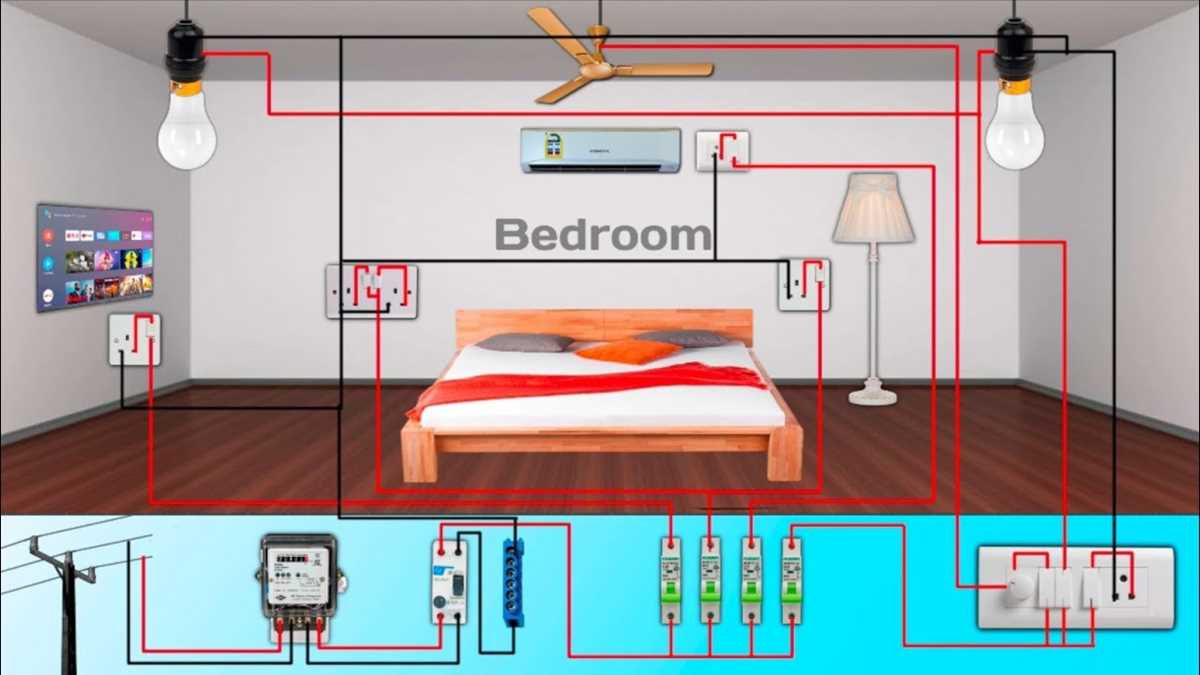

How to Wire Lights and Switches in a Room
To begin, ensure you have the correct materials: electrical boxes, switches, light fixtures, and the appropriate gauge wire for the load. Start by marking where each switch and light will be positioned. This helps you determine the best path for running your wires, minimizing the need for additional outlets or extensions.
When you begin connecting the light fixtures, remember to run the wire from the power source first, through the switch, and then to the light. This allows the switch to control the flow of electricity to the light. Use a 14-gauge wire for most lights, but for high-powered fixtures, upgrade to a 12-gauge wire to avoid overloading the circuit.
Ensure that each light fixture has a secure connection to the wire. If the light uses a metal frame, grounding is necessary to prevent shock. Attach the grounding wire securely to the metal box or grounding screw of the fixture. This prevents any potential for electrical shocks in case of faults.
Install the switches so that they are easily accessible, typically at a height of 48 to 54 inches from the floor. Run the wire from the switch box to the light fixture, ensuring that the wire is not exposed or subject to any physical damage. When connecting the wires to the switch, ensure that the hot wire connects to the terminal screw, while the neutral wire connects directly to the light fixture.
To complete the setup, use the proper connectors and ensure that all wire ends are stripped and connected securely. Make sure no copper wire is exposed outside of the connectors. Tighten the screws firmly but avoid over-tightening, which could damage the wires or connectors.
Finally, test the system. Turn on the breaker and check that all switches and lights function as intended. Use a multimeter to verify that power is properly flowing through the connections. If everything works as expected, cover all boxes with faceplates and double-check that there are no exposed wires. Properly installed switches and light fixtures provide safety and functionality, so careful attention during installation is key.
