Identify the main power terminals before starting any connections. The primary supply lines must match voltage specifications to prevent overheating or electrical faults.
Label each lead according to its function, including safety switch, motor, and ignition transformer. Clear labeling reduces errors and simplifies future maintenance.
Use insulated connectors rated for the current load of the unit. Loose or undersized connectors can cause sparks, inconsistent operation, or damage to components.
Verify continuity and polarity with a multimeter after completing each connection. Ensure that each pathway completes a circuit correctly and that the control switch properly engages the motor and ignition.

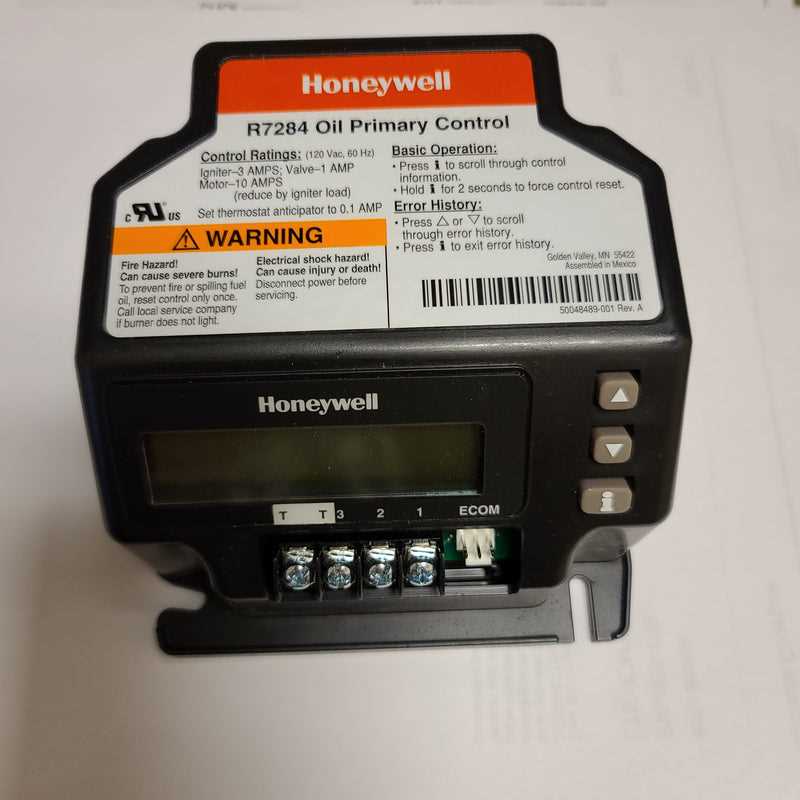

Secure the control module in a stable enclosure to prevent vibration from loosening terminals. Mechanical stability improves reliability and prevents accidental shorts during operation.
Test the system at low power before applying full load. Observe that the motor starts, the ignition engages, and safety cutoffs function as designed without tripping unexpectedly.
Fuel Ignition Unit Connection Guide with Terminal Setup Instructions
Connect the main power leads first and confirm that the voltage matches the unit’s specifications. Attach the motor and transformer lines to the designated terminals, ensuring that polarity is correct to prevent reverse operation or damage to components.
Use properly rated insulated connectors for all control and safety circuits. After completing connections, test each path with a multimeter to verify continuity and correct engagement of switches and relays before powering the system fully.
Identifying Terminals and Understanding Power Connections
Locate the main power terminals first and confirm that each is rated for the system voltage. Mark the input and output points clearly to prevent connecting the motor or ignition transformer incorrectly.
Use a multimeter to test continuity between each terminal before attaching leads. This ensures that the safety switches and control relays are in proper order and prevents accidental short circuits during setup.
Follow manufacturer labels on the terminal block when present. Identify connections for the motor, ignition, and control circuits separately, noting any polarity markings for AC or DC components to avoid damage.
Secure all leads with insulated connectors and keep wires short and organized. Avoid overlapping or crossing high-current paths with sensitive control lines to reduce the risk of interference or accidental contact.
After connecting, verify each path by measuring voltage at the load points and checking that the safety switches respond correctly. Perform a low-power test to confirm that the system engages and disengages without faults before full operation.
