Install the protective switch in the distribution panel by connecting the incoming hot conductor to the device terminal and attaching the outgoing load conductor to the designated output lug. The white neutral from the branch line must land on the terminal built into the protective device, while the short factory lead connects to the panel neutral bar.

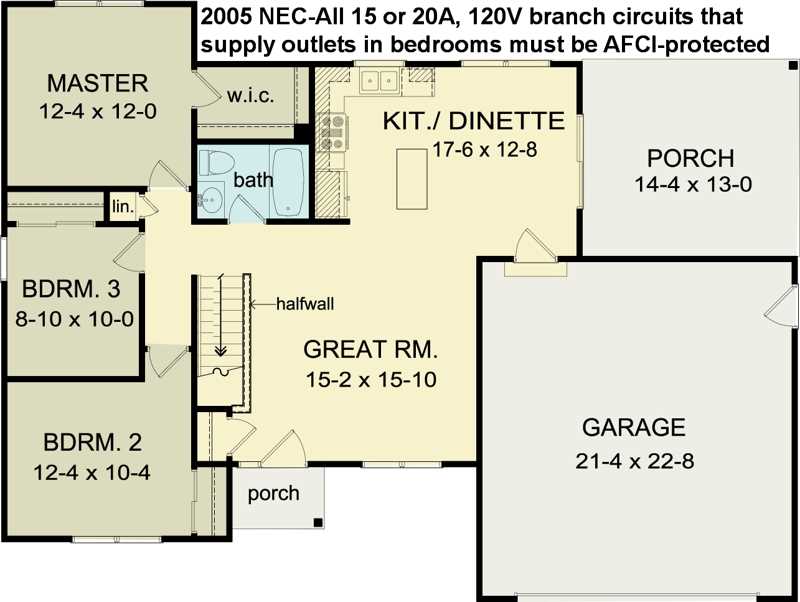

This type of protective switch monitors irregular electrical discharge patterns caused by damaged insulation, loose contacts, or worn extension cords. Residential systems in North America typically operate at 120 V, with branch lines rated at 15 A or 20 A. Bedrooms, living areas, and hallways often require this protection under modern electrical codes.
Use copper conductors sized according to the branch rating. A 15 A line normally uses 14 AWG copper, while a 20 A line requires 12 AWG. Tighten terminal screws to manufacturer torque values, usually between 2.0 and 3.0 Nm. Loose terminations raise resistance and may produce heat that triggers unwanted shutdown.
After installation, energize the panel and press the built-in test button. The protective device should trip instantly, cutting power to the branch line. Restore operation by moving the handle fully to the OFF position and then back to ON. A failure during this test often indicates reversed neutral conductors or an incorrect connection inside the panel.
Arc Fault Circuit Breaker Wiring Diagram with Panel and Neutral Connections
Connect the incoming hot conductor from the service bus to the protection device terminal and attach the outgoing branch conductor to the load lug on the device. The branch neutral must land on the neutral terminal built into the device, while the short white pigtail provided by the manufacturer connects directly to the neutral bar inside the distribution panel.
Follow this connection structure inside the panel:
- Hot conductor from panel bus → input terminal on the protection device
- Outgoing hot conductor to branch line → load terminal
- Neutral from branch line → neutral terminal on the device
- Factory white lead → neutral bar in the panel
This configuration allows the protection unit to monitor both the hot and neutral paths. By comparing current flow through these conductors, the internal electronics detect abnormal discharge patterns caused by damaged insulation, pinched cables, or loose receptacle contacts. Residential lines usually operate at 120 V with ratings of 15 A or 20 A.
Use conductors that match the branch rating and panel specifications:
- 14 AWG copper for 15-amp branch lines
- 12 AWG copper for 20-amp branch lines
- Neutral and hot conductors must remain paired within the same device
- Torque terminal screws to manufacturer values, commonly 18–25 lb-in
After completing installation, restore power and test the protection device using the built-in test button. The handle should move to the trip position immediately, cutting power to the branch line. If the device fails to reset or trips instantly after reset, inspect the neutral routing inside the panel and confirm that the branch neutral is not connected directly to the neutral bar.
Arc Fault Circuit Breaker Wiring Diagram with Line Load and Neutral Pigtail Layout
Attach the incoming hot conductor from the panel bus to the device line terminal and connect the outgoing branch hot conductor to the load terminal. The branch neutral must connect to the neutral terminal on the protective device, while the factory white pigtail links directly to the panel neutral bar.
Line and Load Identification
Correct identification of line and load conductors prevents immediate tripping or loss of protection. The line conductor carries power from the distribution bus, while the load conductor feeds receptacles, lighting outlets, or other branch devices. Many residential panels supply 120 V single-phase power, with branch ratings typically 15 A or 20 A. The internal electronics inside the protective device monitor current flow through both the hot and neutral paths.
Use conductor sizes that match the branch rating. A 15-amp branch commonly uses 14 AWG copper, while a 20-amp branch requires 12 AWG copper. Strip insulation to the length specified by the manufacturer, usually around 10–12 mm, and tighten the terminal screw between 18 and 25 lb-in. Loose connections may produce heat and unwanted trips.
Neutral Pigtail Connection
The short white lead attached to the device must terminate on the panel neutral bar. This pigtail allows the internal sensor to compare current leaving through the hot conductor with current returning through the neutral path. If the branch neutral bypasses the device and lands directly on the panel bar, monitoring becomes inaccurate and the protection unit will trip or fail its self-test.
After completing connections, restore panel power and press the test button on the device. The handle should move to the trip position immediately. Reset by switching fully to OFF and then back to ON. If the handle will not remain in the ON position, inspect the neutral path and confirm that the branch neutral connects only to the device terminal.
