To build a functional digital system, one of the most fundamental building blocks you need to understand is the binary operation where two inputs result in a single output. A well-known example is the behavior of a two-input binary operation where both inputs must be high to produce a high output. This concept is critical in various systems, such as control systems, computer processors, and decision-making circuits.
When designing this type of setup, always start by identifying the two signals or conditions that must be met. For example, in a practical setup, these could be switches or sensors that either provide a “high” (1) or “low” (0) signal. The output, based on the state of both inputs, will either be active or inactive, corresponding to the operational needs of your system.
To implement this function physically, simple components like transistors can be used to achieve the desired input-output relationship. You can also find integrated circuits that implement this function in various configurations for higher reliability and compactness. Understanding the specific requirements of your application will guide you in choosing the right setup and components for your design.
AND Gate Circuit Overview

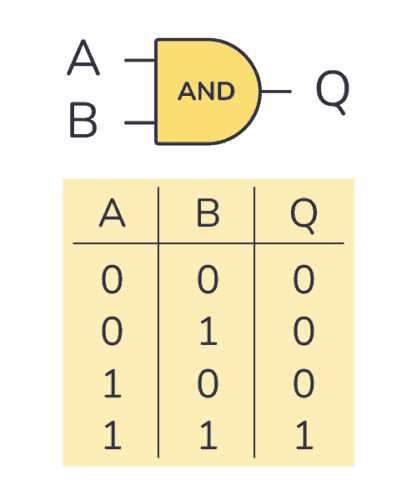

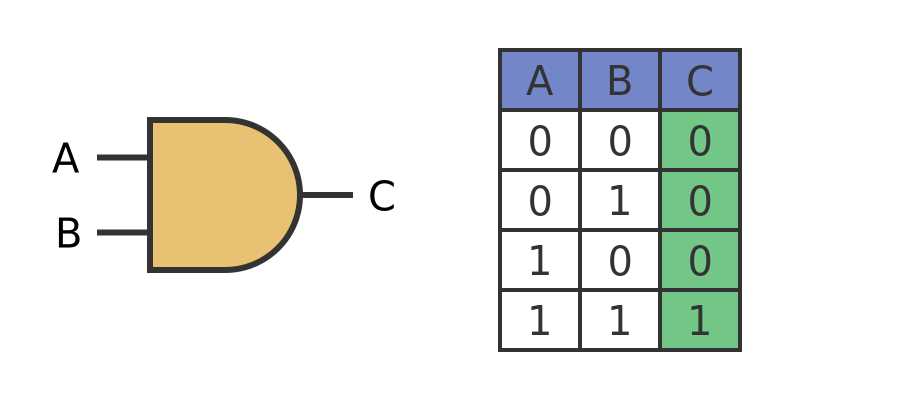

In this type of system, the output is activated only when both inputs are active. This binary relationship is fundamental in various electronic applications, where specific conditions must be met for a process to occur. The behavior of this setup follows a simple rule: the result is “on” only if both conditions are satisfied simultaneously.

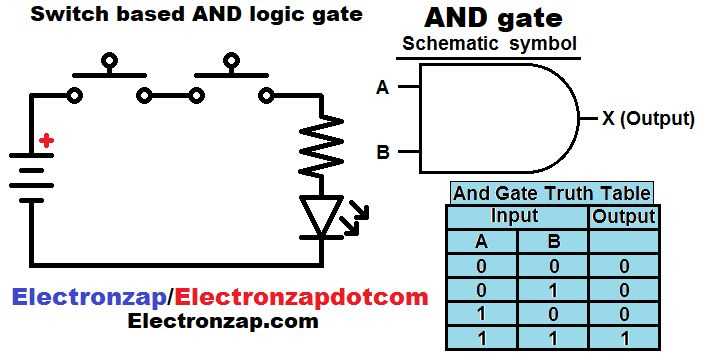

For instance, when using two switches, both must be closed for current to flow. If either switch is open, the path is broken, and the result remains inactive. This is a simple yet crucial configuration that forms the basis for more complex systems, especially in computational and control mechanisms.
To build this structure, you can utilize components like transistors that act as switches. By connecting them in such a way that both must be triggered to allow current to pass, you can create a functioning unit. These components are widely available in the form of integrated circuits (ICs), making them easy to implement in larger systems.
Another common example involves digital systems where multiple conditions need to be checked before activating an output. For instance, in a security system, an alarm might only trigger when both a motion detector and a door sensor detect activity. This ensures that a false alarm is avoided if only one sensor is triggered.
The application of this configuration extends to various fields, from automotive electronics to home automation. For example, in an automated lighting system, two sensors might be used: one for detecting motion and the other for ambient light. Both sensors need to indicate activity before the lights turn on, ensuring energy conservation when no motion is detected or when it’s bright enough outside.
Understanding how the basic components interact allows for efficient troubleshooting and design optimization. If you face issues with an application using this configuration, first check the individual inputs to confirm they are being properly activated. Next, verify the connection that allows the flow of current when both conditions are true.
In summary, the principle behind this setup is straightforward but powerful. By ensuring that multiple inputs must meet certain conditions before an output is produced, reliability is increased, and energy is conserved. This design logic is fundamental to the design of more advanced devices and systems.
In more advanced systems, you may also encounter other variations of this basic principle, such as in multi-input systems, where several conditions must be met. These variations form the basis for creating increasingly sophisticated and secure circuits for a range of applications in digital electronics.
How to Build an AND Gate Circuit with Transistors
Start by gathering the necessary components for building a basic setup: two NPN transistors, resistors, and a power supply. Ensure you have a 5V or 12V DC power source to operate the transistors effectively. Choose resistors with values around 1kΩ for base connections to limit current flow to the transistors.
First, connect the emitter of each transistor to ground. The collectors will serve as the output connection. The base of each transistor should be connected to one of the two input signals through the resistors. This setup ensures that each transistor only conducts when it receives a high signal at the base.
For a working unit, both input signals must be high for the output to be activated. The circuit will only allow current to flow from the power source to the output when both transistors are in an “on” state, meaning both of their base signals are high. When either input signal is low, the corresponding transistor will remain off, breaking the connection and preventing current flow.
Next, wire the output from the collectors of the two transistors together. This ensures that the output will be high only when both transistors conduct. If either transistor does not receive a high signal at the base, the output will stay low. This design is the fundamental principle of the operation, ensuring that both conditions must be satisfied for the result to be positive.
Test the system by applying different combinations of high and low signals to the base of each transistor. With both inputs high, you should see the output at the collectors turn on. If one input is low, the output should remain off, verifying that the transistors are functioning as expected.
By following these steps, you’ve created a functional unit using basic transistor components. This setup can be further modified for different voltage levels or adjusted for specific applications, like signal processing or control systems, where conditional outputs are required. Experimenting with multiple transistor-based setups will enhance your understanding of their behavior in more complex systems.
