Step by Step Assembly of an ADSL Filter Splitter with Clear Line Separation

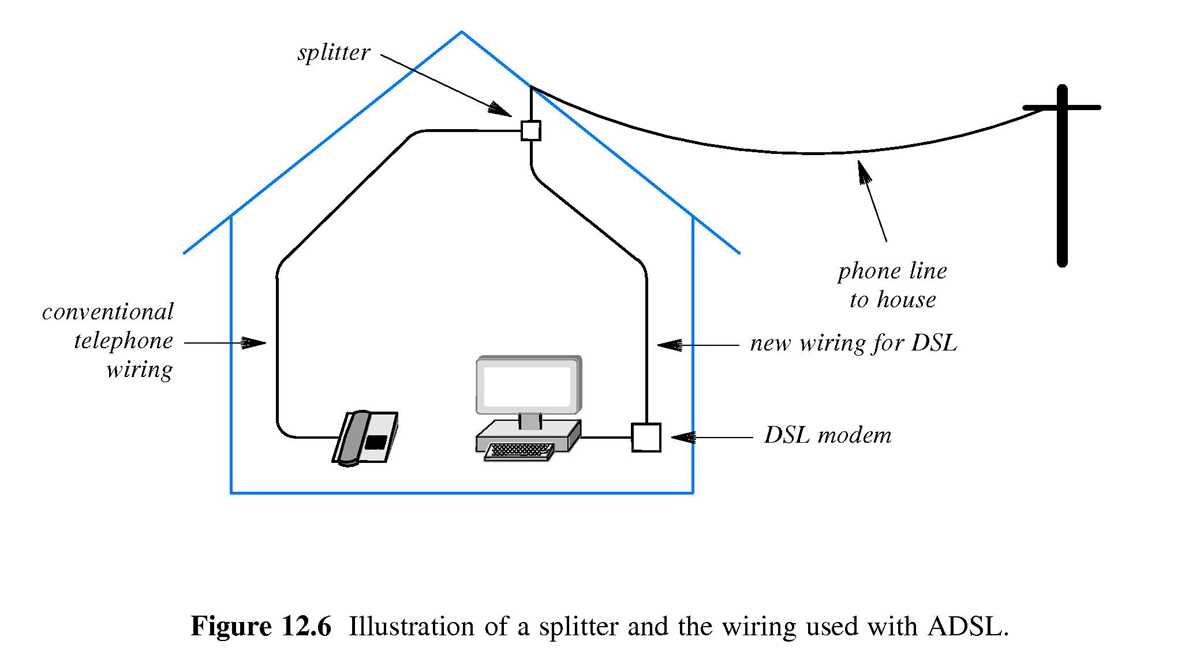

adsl filter splitter circuit diagram

Connect the incoming line directly to the primary module terminals to ensure clean separation between data and voice signals. Proper alignment prevents crosstalk and maintains stable broadband transmission.

Use high-quality resistors and capacitors rated for 1 MHz or higher when assembling the separation unit. This choice minimizes signal loss and avoids interference with connected telephony devices.

Verify polarity and line continuity before integrating devices. Incorrect placement of terminals can cause call disruptions or degraded internet speed, so label each wire and test voltage levels carefully before final installation.

Keep the assembly compact and shielded to reduce electromagnetic interference from nearby electronics. Metal enclosures or grounded shielding tape improve overall signal integrity in multi-device setups.

ADSL Filter Splitter Setup and Connection Guide

Attach the main line directly to the module input terminals to separate voice and data paths effectively. Ensure each terminal is securely tightened to avoid intermittent connections that can degrade broadband speed.

Route the telephone and modem lines independently after the separation unit. Use short, labeled cables to maintain signal clarity and prevent interference from other devices in close proximity.

Test each output before final installation. Measure the voltage and continuity to verify the voice line is stable and the broadband path maintains consistent speed. Adjust connections as needed to prevent disruptions during daily use.

Identifying Input and Output Lines on the Splitter

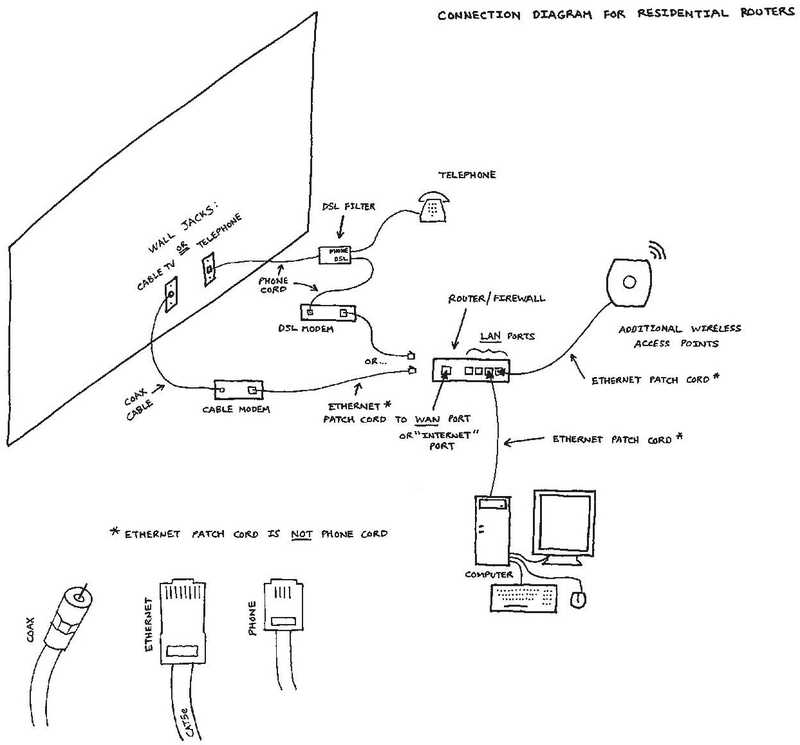

adsl filter splitter circuit diagram

Connect the main line to the designated input port to ensure that both voice and data signals are correctly separated. Verify that the cable is fully inserted and that the contacts align with the internal terminals for optimal transmission.

Label each outgoing line immediately after the separation unit. Mark one for telephone devices and the other for the modem or router. Clear labeling reduces confusion during future troubleshooting or adjustments.

Measure continuity on the voice path using a multimeter to confirm that the line reaches your telephone without interference. A short test before final mounting can prevent signal drops and ringing issues.

Check the broadband output using a speed test or signal meter. Ensure that the line maintains stable voltage levels and is free from crosstalk or external interference from nearby electronic devices.

Inspect connectors for corrosion or wear. Even slight oxidation can degrade performance on both voice and data paths. Replace any terminals showing signs of rust or loose contact to maintain consistent connectivity.

Route the lines separately to avoid physical interference. Keep the telephone cable away from high-current devices and the modem cable isolated from fluorescent lights or other sources of electromagnetic interference.

Perform a final functional test on all endpoints. Pick up the telephone to confirm a clear dial tone and run a broadband speed check to verify uninterrupted data transmission. Adjust connections or replace cables as necessary to secure reliable operation.
