Always turn off the main circuit before handling any electrical components. Use a multimeter to verify zero voltage at the terminals before making adjustments. Label each conductor to avoid cross connections and reduce the risk of short circuits.
Follow the color coding for hot, neutral, and ground lines carefully. Red and black wires typically carry the current, while white or gray wires are neutral, and green or bare copper wires provide grounding. Ensuring these paths are correct prevents equipment damage and potential fire hazards.
Maintain proper spacing between live contacts and enclosure walls. Use insulated connectors and mounting screws rated for the amperage of your system. Secure all cables with strain reliefs to prevent loosening due to vibration or thermal expansion.
Verify continuity and proper phase alignment after installation. Check for tight connections and absence of corrosion at terminals. Document the layout for future maintenance or upgrades, ensuring each component is easily identifiable and accessible.
AC Disconnect Layout and Connection Guidelines
Always verify power is off at the main breaker before accessing terminals. Use a voltage tester to confirm zero current, and wear insulated gloves to reduce the risk of shock.
Identify each conductor by color and function.
- Black or red: live conductors
- White or gray: neutral lines
- Green or bare copper: ground path
Label cables to prevent misconnection during installation.
Mount components on a stable surface using screws rated for electrical enclosures. Ensure at least ½ inch clearance around live contacts to prevent accidental shorts or arcing.
Use terminal connectors rated for the system amperage. Crimp connections firmly and check for exposed strands. Loose contacts can create heat buildup and reduce equipment lifespan.
After assembly, test continuity and polarity with a multimeter.
- Check each phase alignment
- Verify grounding continuity
- Ensure neutral paths are uninterrupted
Document the layout for future reference.
Regularly inspect for corrosion, discoloration, or loosening of screws. Schedule maintenance every six months and replace worn parts immediately. Proper installation improves performance and minimizes hazards.

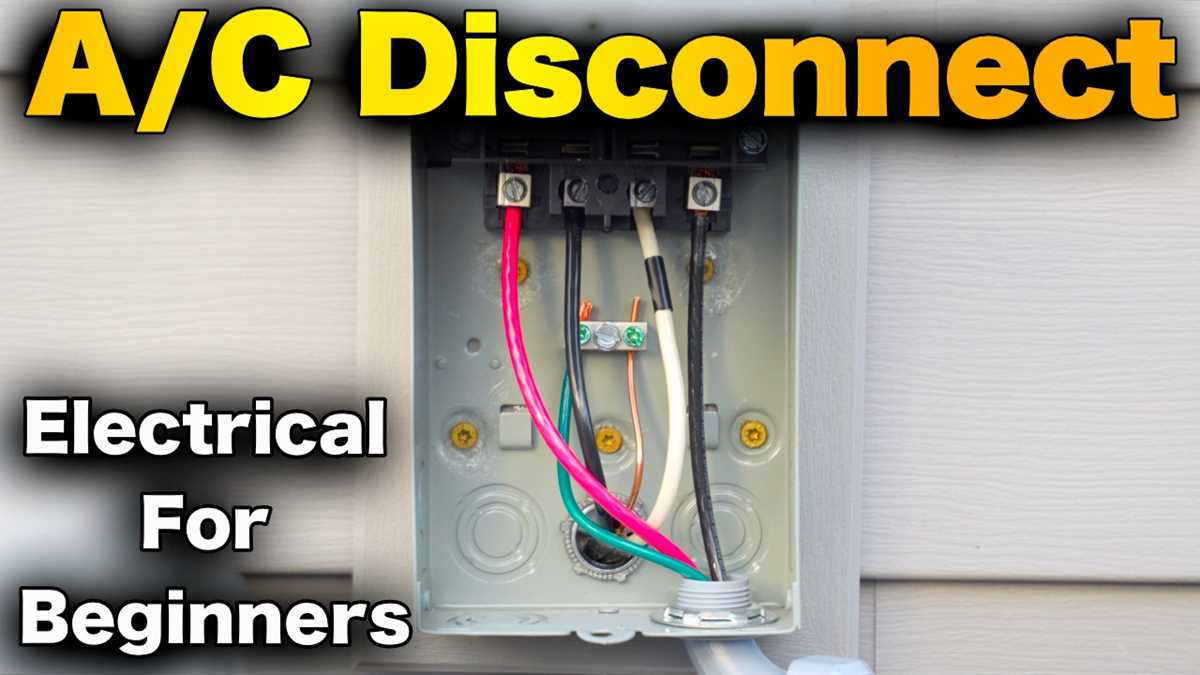

Identifying AC Disconnect Components and Terminals
Confirm the main breaker is off before inspecting any electrical parts. Use a non-contact voltage tester to ensure no current flows through the unit before touching terminals or conductors.
Familiarize yourself with the main elements of the system. Line terminals bring power in from the breaker, while load terminals carry current to the HVAC or other connected equipment. Each set is usually marked and color-coded for quick identification.
Grounding points are often green or bare copper screws, located near the enclosure base. Secure the ground wire firmly to maintain a continuous path to reduce shock hazards. Check that all screws are tight and free of corrosion.
Additional components may include fuses, lugs, and safety switches. Inspect each for wear or damage and ensure connections match the amperage rating of the system. Proper identification prevents misconnection and enhances operational safety.
