To successfully connect the power system to a trailer, you need to follow a structured process for connecting the electrical components. This includes the proper alignment of power feeds, light systems, and brake controllers. Begin by identifying the correct terminals for each component, ensuring proper flow of energy and signal. Using high-quality materials, such as durable connectors and wires, is crucial to ensure safety and long-term functionality.
When dealing with the electrical systems for braking and auxiliary power supply, ensure that you correctly match each wire to its respective function. Pay attention to how the power supply is routed from the towing vehicle to the components on the trailer, ensuring proper voltage and current are maintained throughout. A carefully mapped installation will avoid issues such as voltage drop, improper connections, and unreliable operation of key features like braking systems.
While wiring the electrical connections, it’s important to check all connections regularly for signs of wear or potential faults. Regular maintenance of the system will ensure that your connections remain tight, secure, and free of corrosion. Proper insulation and grounding are vital for the safe operation of the entire setup, preventing any electrical shorts or damage to the components on both ends of the connection.What is this?
HTML

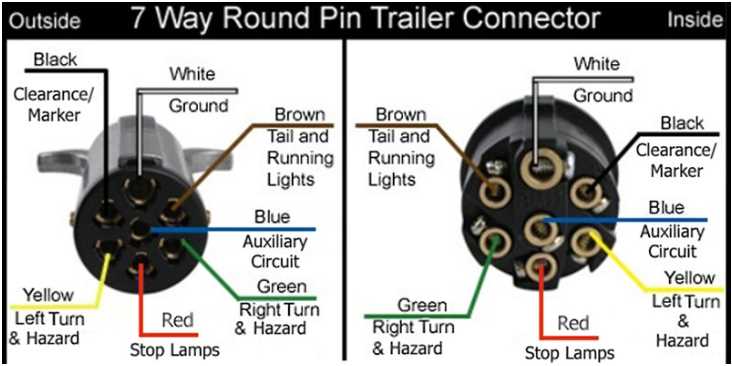

Understanding the Pin Configuration for Trailer Connectors
Start by identifying the correct terminal connections on the vehicle’s towing interface. The typical 7-pin connector configuration features different functions for each connection, and understanding these is critical for proper setup. Begin with the power feed terminal, which will supply power to the lighting system and braking mechanism. This is usually the terminal responsible for delivering 12V from the vehicle’s power supply to the trailer’s electrical components.
The next terminal you’ll need to configure handles the ground wire. This is essential for completing the electrical circuit and ensuring all components on the trailer function properly without risk of short-circuiting. Always ensure the ground connection is secure and clean, as a poor ground can lead to intermittent or failed operation of key components.
Function Assignments for Each Terminal
Typically, the vehicle side of the connector includes a series of terminals that correspond to various functions:
- Terminal 1: 12V Power Supply
- Terminal 2: Left Turn Signal
- Terminal 3: Right Turn Signal
- Terminal 4: Ground
- Terminal 5: Tail Lights
- Terminal 6: Brake Lights
- Terminal 7: Auxiliary or Reverse Lights
By following the standard pin assignments, you can easily identify each terminal’s role. These assignments are typically universal across all vehicles with 7-pin connectors, but always double-check the vehicle’s manual to ensure compatibility. Incorrectly matched terminals can lead to improper functioning, such as brake lights not turning on when needed or malfunctioning turn signals.
It’s important to understand that certain functions, like the brakes or reverse lights, may require higher amperage, so ensure the wire gauges you use are rated to handle the necessary current. For example, the brake light terminal will often need a thicker wire than the turn signal or tail light connections to prevent overheating or damage.
How to Ensure Secure Connections
To guarantee safe, reliable operation, make sure each wire is securely connected and insulated. Use quality connectors that provide a tight grip on the pins to avoid loose connections, which can cause power loss or malfunction. Properly sealing connections is also key to preventing moisture from entering the system, which can lead to corrosion and short circuits over time.
Lastly, after setting up all terminals, perform a test by activating each function–turn signals, brake lights, and running lights–while observing the trailer’s response. This will confirm that each connection is working as expected. Regular checks and maintenance will ensure continued proper functionality.What is this?
HTML
Step-by-Step Instructions for Wiring Brakes and Battery
Begin by connecting the positive terminal of the vehicle’s power source to the power feed terminal on the connector. This will provide the necessary current to operate both the lighting system and the braking mechanism on the attached unit. Ensure the connection is secure, using an appropriately sized wire to handle the load without overheating.
Next, establish the ground wire by attaching it to the negative terminal of the power source. This will complete the electrical circuit, allowing proper function of all connected components. A clean, secure ground connection is critical to prevent electrical failures or improper operation.
For the braking system, run a wire from the brake light switch or controller to the designated terminal. This wire should be connected directly to the braking mechanism on the unit. Be sure to use a wire that can handle the amperage needed for the braking system. Test the setup by activating the brake lights and confirming the brake system operates in sync with the vehicle’s braking action.What is this?
