To properly assemble the power system, begin by identifying the key components, including the battery, controller, motor, and throttle. These elements must be connected in a specific order to ensure functionality. The battery provides the necessary voltage, while the controller regulates the power flow to the motor based on user input from the throttle.
First, ensure that the battery is connected to the controller using the correct terminals. The positive terminal of the battery should connect to the corresponding positive input on the controller. Similarly, the negative terminal should link to the negative input. Next, attach the motor’s wiring to the controller, ensuring the motor wires match the motor terminals on the controller to guarantee proper movement direction.
Additionally, the throttle needs to be wired to the controller, allowing for control over the speed. Proper attention should be given to the color-coding and pinout configurations, as incorrect wiring can result in malfunction or damage to components. After completing these steps, it’s crucial to test each connection to confirm everything is securely in place before turning the system on.

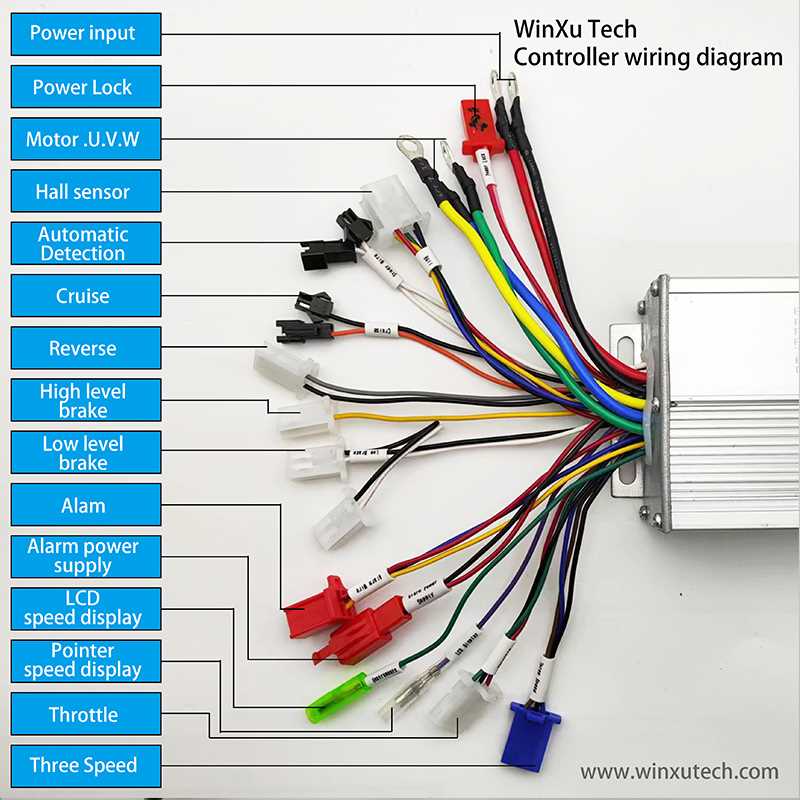

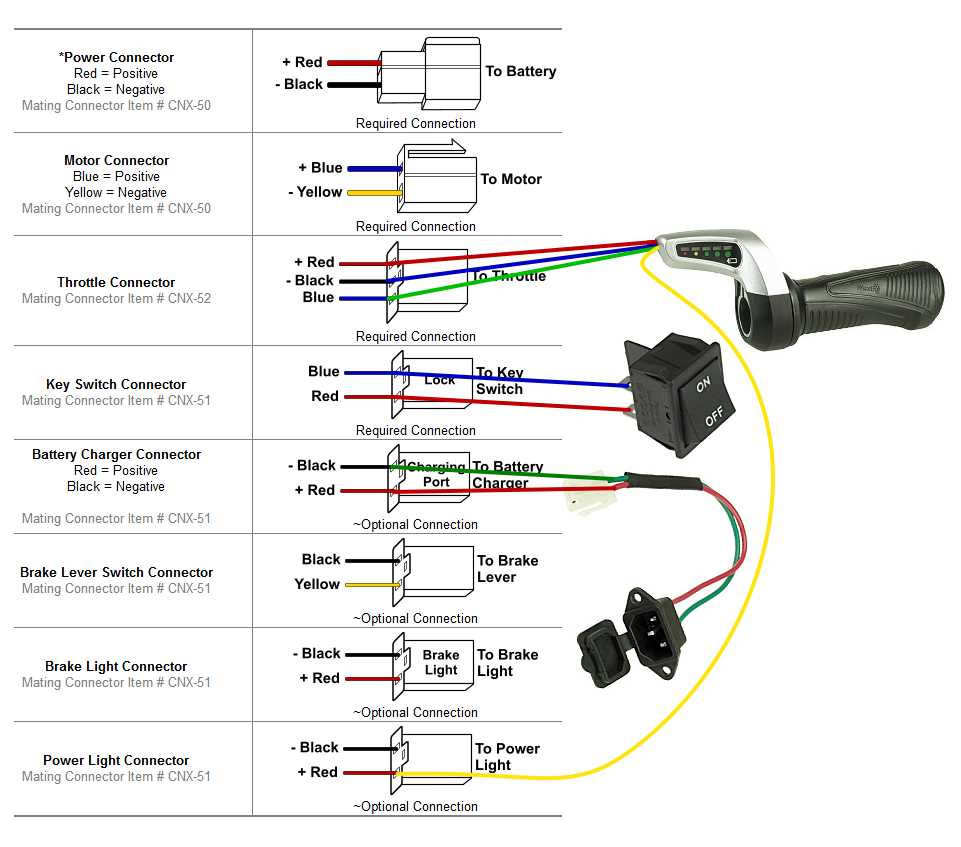

48V Electric Scooter Wiring Diagram
Start by identifying the key parts: the battery, motor, controller, throttle, and brake system. Each component plays a distinct role in the overall operation of the system, and proper connections are crucial for reliable performance.
First, connect the battery’s positive terminal to the controller’s input terminal. The negative terminal should then be connected to the controller’s ground terminal. This ensures that the controller receives the required power to regulate the system’s functions effectively.
Connecting the Motor
Next, connect the motor to the controller, paying close attention to the motor’s wire configuration. Typically, the motor will have three wires that correspond to three terminals on the controller. It’s important to match the wires correctly to avoid malfunction or incorrect movement direction. Test the motor after connection to confirm its proper functioning.
Throttle and Brake Connections
The throttle connects to the controller, allowing the rider to control the speed. The wiring for the throttle usually includes a signal wire and a ground wire. These must be connected to the corresponding terminals on the controller. Check the throttle response after connection to ensure smooth control over the speed.
In addition to the throttle, the brake system must also be wired to the controller. Depending on the type of brake, it may involve a simple switch or a more complex system. This connection ensures that when the brakes are applied, the motor power is cut off, preventing the vehicle from moving.
Inspect the connections closely to ensure there are no loose wires or exposed areas that could cause a short. Using heat shrink tubing or electrical tape to secure connections will provide additional protection against wear and tear, especially in outdoor environments.
Finally, test the system by turning on the power and verifying each component. Check the motor’s responsiveness to the throttle and ensure that the brake system functions properly. A fully functional system should respond smoothly, and any issues should be addressed immediately by inspecting the connections and troubleshooting.
Regular maintenance of the wiring and connections is important to prevent any electrical failures. Ensure that the components are securely attached and periodically check the wiring for signs of wear or corrosion. Proper care will extend the life of the system and keep it running efficiently.
Step-by-Step Guide to Connecting a 48V Electric Scooter
Start by connecting the power source to the controller. Attach the positive wire from the battery to the positive input terminal on the controller, and the negative wire to the negative terminal. Make sure both connections are tight and secure to prevent any power loss.
Motor Connection
Next, connect the motor to the controller. The motor typically has three wires–usually color-coded–that must be connected to the controller’s matching terminals. Double-check the wiring diagram to ensure the correct placement. After connecting, rotate the motor by hand to verify the movement direction before testing the system.
Throttle and Brake Connections
The throttle and brake systems need to be connected next. The throttle typically has two wires–one for the power signal and another for grounding. Attach these to the corresponding terminals on the controller. For the brake system, if using electronic brakes, connect the brake wire to the controller’s input terminal to ensure the motor stops when the brake is engaged.
Once the power, motor, throttle, and brake connections are made, double-check for any exposed wires or loose connections. Secure each connection with heat shrink tubing or electrical tape for added protection, especially around moving parts where wear and tear are common.
Finally, test the setup by turning on the power and gradually testing the throttle. Ensure the motor responds smoothly, and the brake system works correctly. If everything operates as expected, you’ve successfully connected the system. If any issue arises, retrace your steps and verify each connection for accuracy and stability.
