Connect the main energy units in a series configuration to maintain consistent power flow across the system. Ensure each module’s polarity aligns precisely with the next to avoid performance drops or potential short circuits. Using high-quality terminals with secure fasteners reduces the risk of voltage loss and overheating during prolonged operation.
Incorporate a master disconnect switch near the power source for immediate isolation. This improves safety during maintenance or component replacement and prevents accidental current spikes that could damage control electronics. Label each connection clearly to streamline troubleshooting and reduce diagnostic time.
Route the positive and negative leads separately along rigid paths to minimize interference and mechanical stress. Keep wires away from moving parts and heat-producing elements. Employ color-coded insulation or protective sheathing for quick identification of high-amperage paths, ensuring consistent performance under load.
Integrate fuses or circuit breakers at strategic points to safeguard individual modules and the controller. Match the rating to the maximum current each segment can handle. Regularly inspect for corrosion or loose contacts, as even minor resistance increases can lead to significant efficiency loss and premature component wear.
Check balance across all battery units before sealing the system. Uneven charge levels can trigger voltage sag or imbalance alerts, reducing operational range. Use a monitoring device to track individual cell output, and adjust connections as needed to maintain uniform energy distribution.

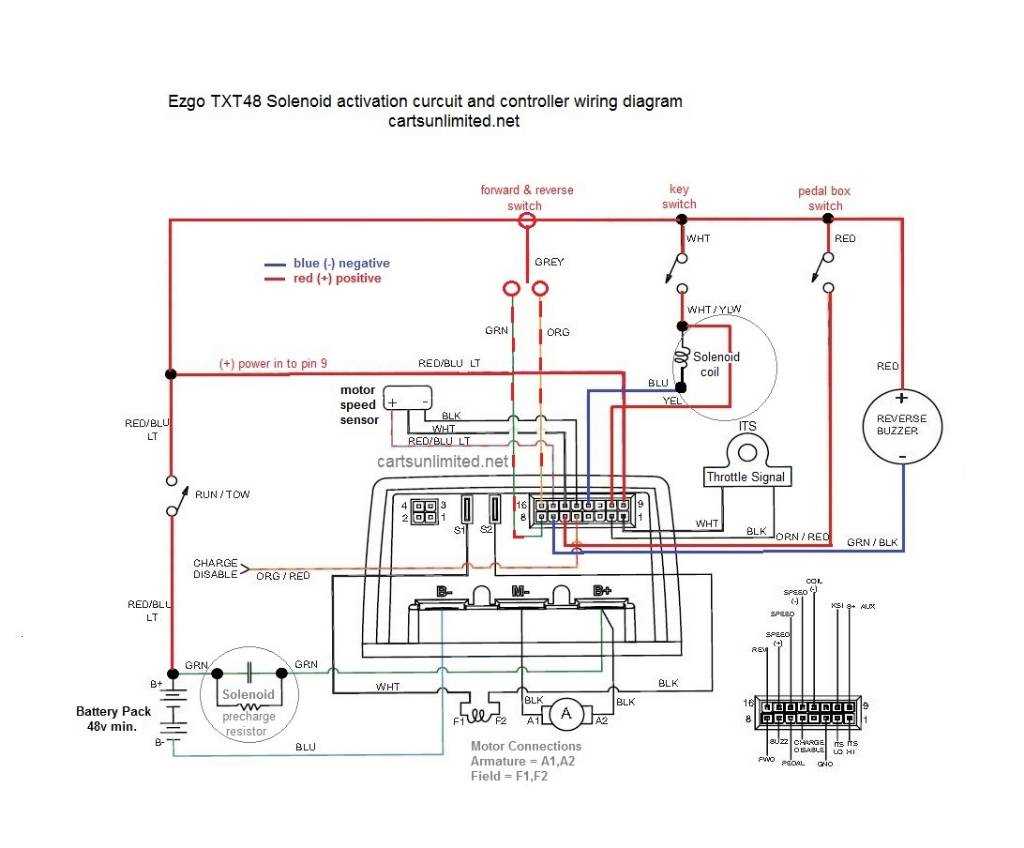

48 Volt Golf Cart Wiring Diagram
Connect the battery set in series to achieve a total of 48 units. Ensure each cell is tightly secured and terminals are free of corrosion before attaching the main leads. Use heavy-gauge cables rated for 50+ amperes to avoid overheating.

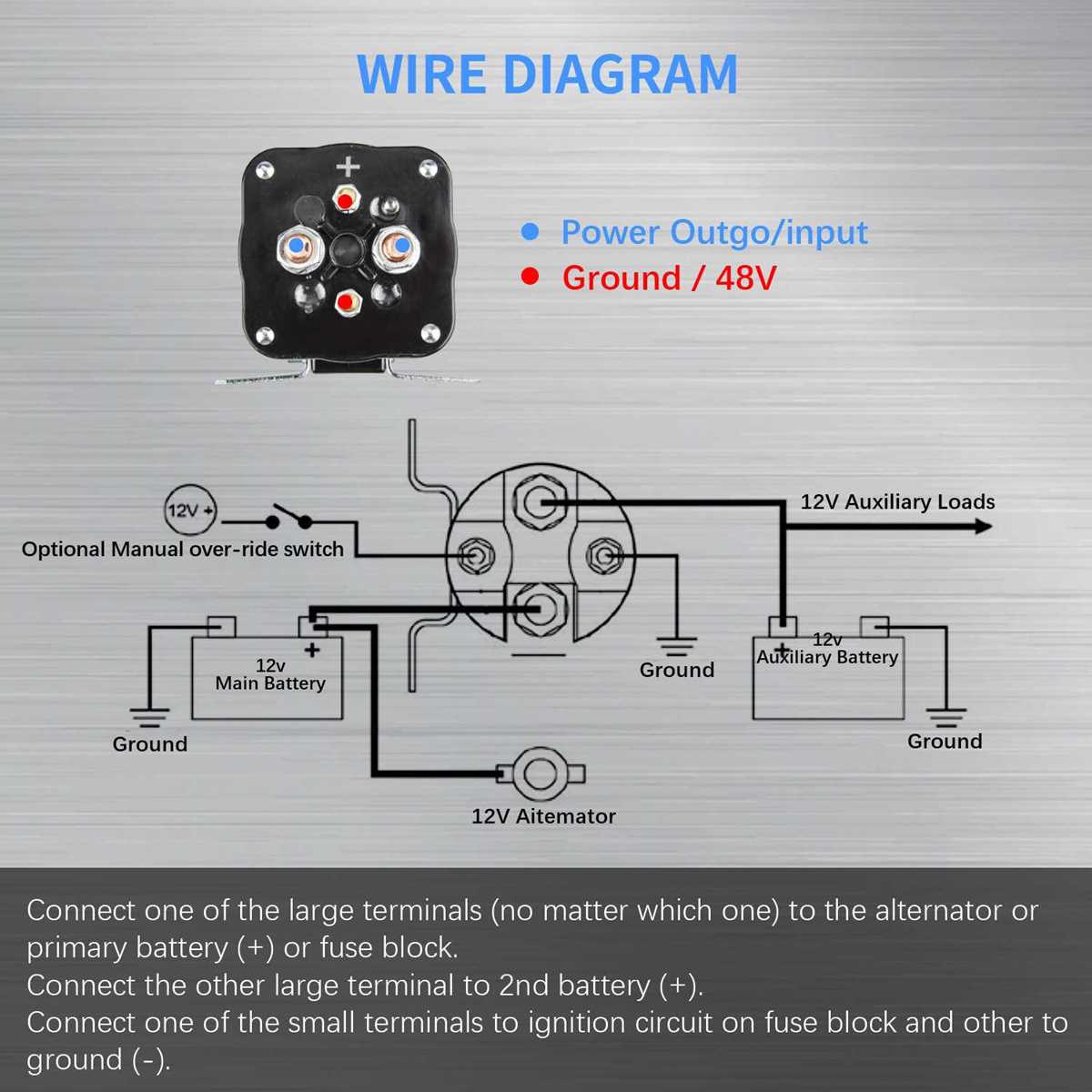

The controller should be positioned near the main frame junction, with positive and negative connections clearly marked. Double-check the solenoid orientation: the large terminals link to the battery bank, while the smaller trigger wires must match the throttle switch output.
Motors require parallel links from the controller to maintain consistent rotation speed. Avoid crossing the polarity, as reversing the main leads can permanently damage the brushes. Include fuses at each branch:
- 40A for auxiliary systems
- 150A for the main motor feed
- 10A for lights and indicators
Throttle and safety interlocks must be wired in series to the controller trigger. If installing a forward/reverse switch, connect the reversal terminals exactly as indicated by the manufacturer, or the unit may lock under load.
Check all terminal torque values: battery posts 8–10 Nm, motor lugs 12–15 Nm. After assembly, measure continuity and resistance across each connection. A reading above 0.05 ohms indicates a loose or corroded link, which can cause heat buildup or intermittent performance.
Connecting 48V Batteries and Motor Controller
Begin by linking four 12-unit energy cells in series, ensuring the positive terminal of one connects directly to the negative of the next. Check each connection for tightness and absence of corrosion to prevent resistance buildup and heat generation. Use insulated lugs and torque them to 8–10 lb-ft for secure contact.
Route the main power lines from the battery bank to the motor control unit using heavy-gauge cables, ideally 4 AWG or thicker, to handle peak draw without voltage drop. Keep the positive and negative leads separated by at least 2 inches along the entire run to reduce electromagnetic interference and accidental shorts.
Safety Switch and Fuses
Install a master cutoff switch inline with the positive lead before the control module. This switch must be rated above 60 amperes continuous and be easily accessible. Add a fuse of 60–80 amps close to the battery pack to protect the system against sudden surges, ensuring both ends are securely fastened to prevent arcing.
Before energizing the system, verify the control unit ground is connected to the battery negative with a short, sturdy cable. Confirm that all battery terminals are clean and the series connections match the correct polarity. Test voltage across the bank using a multimeter; a reading of approximately 48 units indicates readiness for operation.
