4 Wire Wiper Motor Wiring Diagram With Power Ground Park and Speed Connections

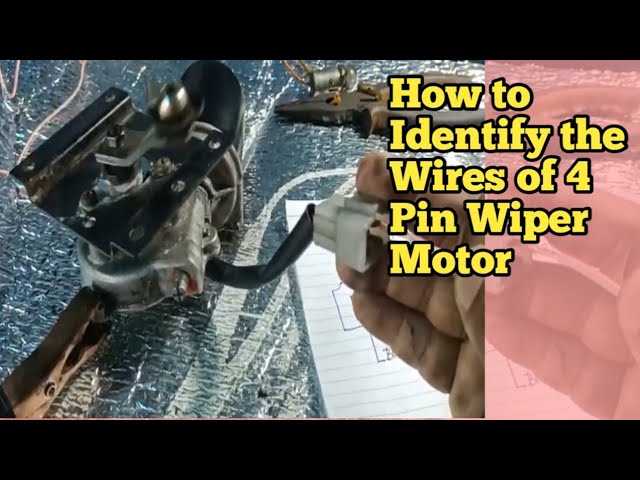

4 wire wiper motor wiring diagram

Connect the power lead from the 12-volt supply to the main input terminal and attach the ground line to the vehicle chassis. A four-conductor windshield sweep drive uses separate lines for power, ground, park position feedback, and speed control. Matching each conductor to the correct terminal prevents continuous rotation or failure to return to the resting position.

This type of drive unit normally appears in automotive front glass cleaning systems. Inside the housing, a small electric actuator rotates a gear mechanism that moves the linkage arms across the glass surface. The internal park switch sends a signal through one conductor that keeps the mechanism running until the blades reach the base position after the dashboard control is turned off.

Color coding varies by manufacturer, though many systems use black for ground, red for battery power, blue or green for speed control, and white or yellow for the park contact. Checking the connector layout before attaching each conductor prevents short paths or reversed polarity that could damage the internal switch assembly.

Testing the harness requires a multimeter and a 12-volt supply. Apply voltage to the power input and observe movement while switching the speed control line between active and inactive states. Continuity between the park contact and ground should appear only when the mechanism reaches its resting position, confirming correct internal switch operation.

4 Wire Wiper Motor Wiring Diagram With Power Ground Park and Speed Connections

Attach the 12-volt supply lead to the main input terminal and connect the ground conductor to a clean chassis point. A four-conductor windshield sweep drive uses separate lines for power feed, ground return, park position signal, and speed selection. The park contact inside the housing keeps the rotating assembly moving until the blades reach the lower resting position after the dashboard switch is turned off.

The speed control path usually runs from the dashboard selector to the drive unit through a dedicated conductor. When voltage reaches this terminal, the internal brush arrangement switches to a higher rotation rate. Without this signal the assembly operates at low speed. Check continuity between the speed terminal and the control switch using a multimeter; resistance close to zero indicates a proper connection along that path.

The park feedback line connects to a small cam-operated contact inside the gearbox. As the linkage completes a sweep cycle, the cam closes the contact and keeps current flowing until the resting point is reached. Voltage should remain present on the power input during this final rotation phase. If the blades stop mid-glass, inspect the park terminal, connector pins, and ground point for corrosion or loose contact.

4 Wire Wiper Motor Pinout Power Ground Park Switch and Low High Speed Terminals

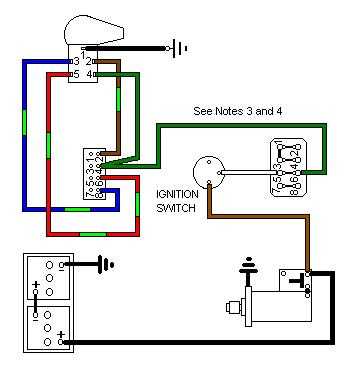

4 wire wiper motor wiring diagram

Identify each terminal on the four-conductor windshield sweep drive before connecting the harness. Most units include five functional points: battery supply, chassis return, park contact, low-speed input, and high-speed input. Use a multimeter to confirm terminal roles by checking continuity between contacts while rotating the shaft manually.

Typical connector pin functions:

  • B+ – constant 12-volt supply from the fuse box
  • GND – chassis return connected to vehicle body
  • PARK – feedback contact that keeps rotation active until the blades reach the base position
  • LOW – reduced rotation rate selected by the dashboard switch
  • HIGH – direct supply path for faster sweep speed

Correct connection sequence prevents uncontrolled movement or failure to stop at the lower edge of the glass. Attach the battery supply line to the B+ terminal through a fused circuit rated between 15 and 20 amps. The chassis return should connect to a clean metal surface with minimal resistance.

Operation through the dashboard selector normally follows this order:

  1. Switch OFF removes power from speed inputs
  2. Internal park contact keeps the drive unit rotating
  3. Cam inside the gearbox reaches the resting position
  4. Park contact opens and stops rotation

If low speed works but high speed does not, inspect the HIGH terminal and the selector switch contact. If the blades stop in random positions, check the PARK terminal continuity and inspect the cam contact inside the gear housing.
