Connect each line according to its function: two active conductors, a neutral, and a protective ground. Match the color coding to the terminals to prevent short circuits and ensure stable operation.
Use a multimeter to verify continuity before energizing the outlet. Confirm that the ground path is intact and that no contacts are loose, as even minor faults can cause overheating or appliance damage.
Position the cord securely so that it does not bend sharply or rest against sharp edges. Tighten the terminal screws firmly while avoiding over-torquing, which can strip the connectors and reduce conductivity.
Double-check the connection sequence by tracing each conductor from the supply source to the appliance terminals. Accurate alignment of hot, neutral, and ground ensures safe current flow and compliance with electrical codes.
Inspect after installation by running a low-power test cycle. Watch for unusual sounds, sparks, or overheating at the contact points. Correct any anomalies immediately before full operation.
4 Wire Stove Plug Connection Instructions

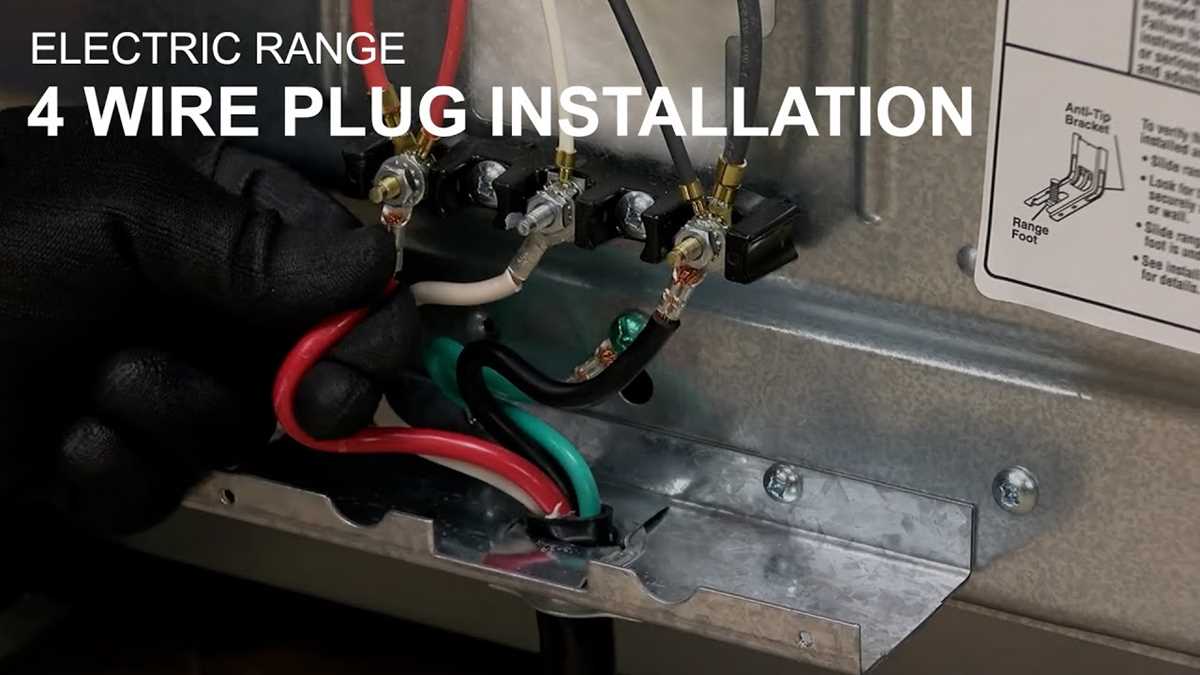

Match each conductor to its correct terminal by identifying the hot, neutral, and grounding lines. Use color codes carefully: typically black and red for hot, white for neutral, and green or bare copper for ground. Secure each conductor under its screw with a firm clockwise turn to maintain solid contact.
Route the cord to avoid tension and sharp bends. Ensure it passes through the strain relief clamp without pinching. This prevents damage to insulation and reduces the risk of overheating when the appliance is in use. Leave a small loop to allow minor movement without stressing the connections.
After securing the terminals, verify continuity and polarity with a multimeter. Check that both hot lines carry proper voltage, the neutral completes the circuit, and the ground path is uninterrupted. Conduct a low-power test cycle before full operation to confirm stability and safety of the connection.
Identifying Conductor Functions and Color Codes
Confirm each line’s role before making connections. Typically, two conductors carry current, one completes the circuit, and one provides grounding protection. Accurate identification prevents short circuits and appliance damage.
Follow standard color coding for safety:
- Black and Red: Active lines delivering 240 volts.
- White: Neutral path returning current to the panel.
- Green or bare copper: Ground for safety and fault protection.
Use a multimeter to verify continuity and polarity. Trace each conductor from the source to its terminal, ensuring no breaks or improper connections. Even a single reversed line can lead to malfunction or create shock hazards, so careful measurement and labeling are critical.
