Connect the hot and neutral leads directly to the marked terminals to ensure the device responds correctly to electrical faults. Confirm that the incoming feed is de-energized before touching any components.
Attach the grounding conductor firmly to the green screw to maintain a reliable path for stray currents. Loose connections can trigger nuisance trips or prevent proper fault detection.
Separate the supply and load circuits carefully to prevent backfeeding and maintain protection for downstream receptacles. Label each line clearly to avoid confusion during installation or future maintenance.
After completing connections, test the unit using a dedicated push-button tester or a multimeter capable of simulating fault conditions. Verify that the device interrupts current immediately and resets without hesitation.
4 Conductor Device Installation
Connect the hot feed directly to the designated terminal and ensure the neutral return matches the corresponding slot. Secure each conductor with a flathead screwdriver and confirm no strands are loose. Improper attachment can prevent the device from tripping correctly, leading to potential shock hazards.
Follow these steps for safe integration:
- Identify incoming and outgoing circuits clearly.
- Attach the ground to the mounting screw or bus bar.
- Separate control and load circuits to avoid interference.
- Verify connections with a circuit tester before restoring power.
- Press the test button to simulate a fault and confirm immediate cutoff.
For complex setups, label each line with tape and a permanent marker. Documenting the layout ensures quick troubleshooting and prevents errors during future upgrades or replacements.
Identifying Line and Load Conductors for Safe Installation
Test each circuit before making connections to determine which conductors supply power from the panel. Use a voltage tester to confirm live and neutral leads without energizing the branch. Mark each source clearly to avoid reversing connections during installation.

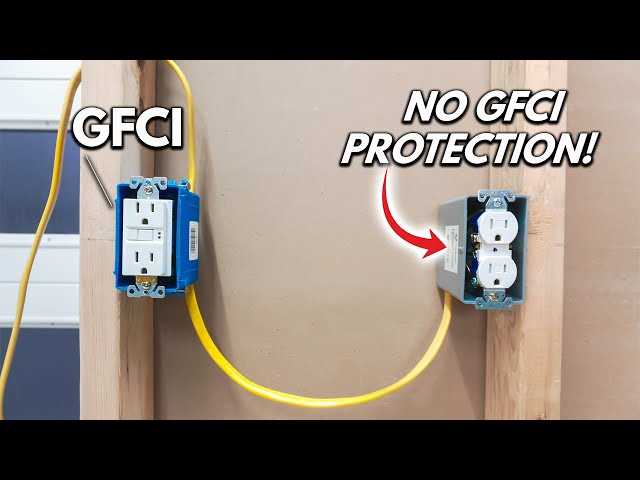

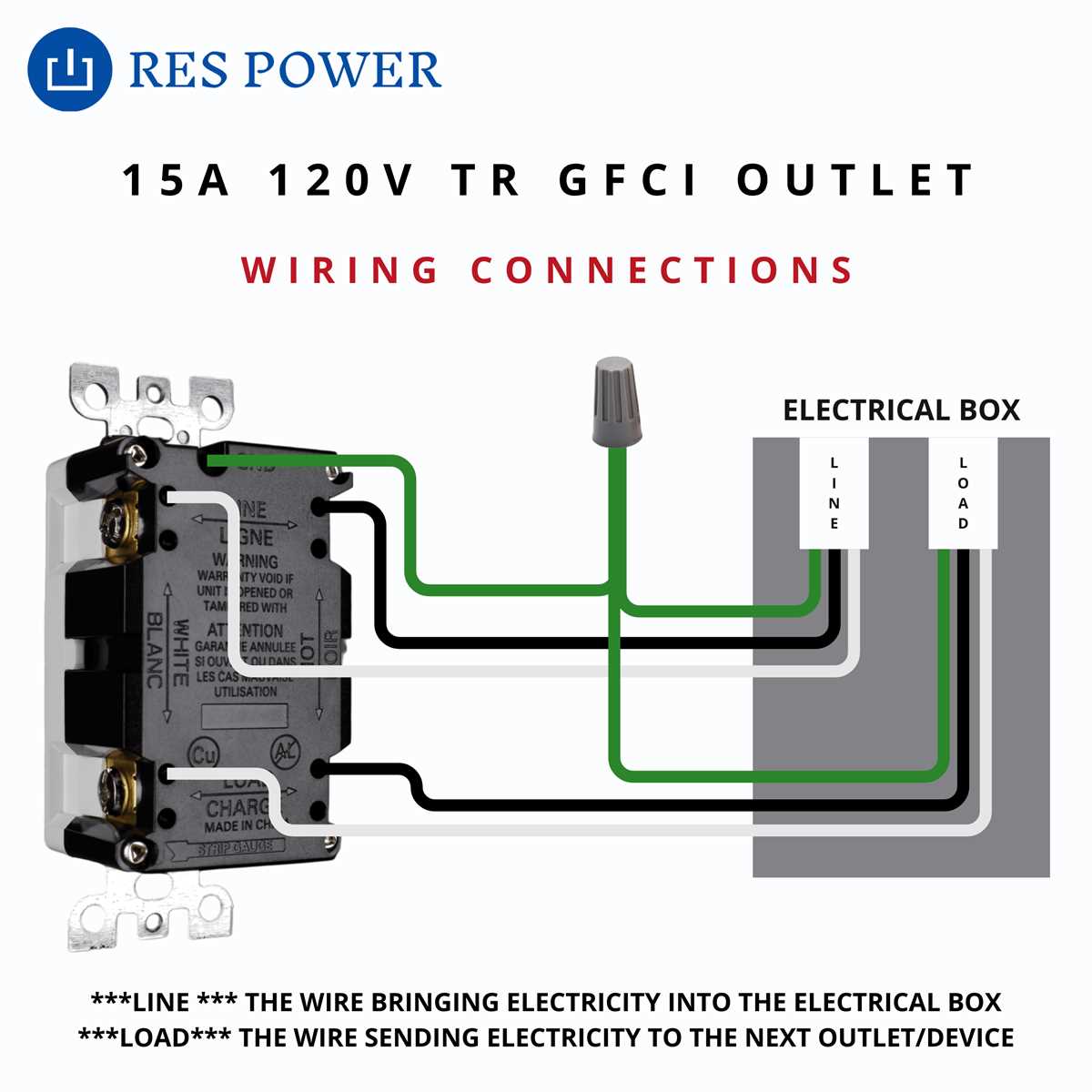

Separate incoming and outgoing paths in the enclosure. Incoming feeds should connect to terminals labeled for supply, while the downstream circuit attaches to the load side. Mixing these paths can prevent the device from cutting off current during a fault.
Inspect color coding and physical layout of the strands. Black or red conductors typically indicate hot feeds, and white represents neutral returns. Bare or green conductors must attach to the grounding point for shock protection.
Use a continuity tester to verify downstream connections before securing screws. This ensures that receptacles further along the branch receive proper protection and that no shorts exist between lines.
Document each connection with labels or colored tape. Labeling reduces errors when future maintenance or upgrades are needed and provides a visual reference for anyone inspecting the installation later.
After securing the conductors, engage the test mechanism on the device. Confirm that the trip occurs immediately when simulated to verify that the line and load paths are correctly identified and the system responds as expected under fault conditions.
