Connect the four leads from the outdoor cooling unit propeller drive according to their function: common, start, run, and power supply. Most HVAC units use a permanent split capacitor design, where one lead connects to the capacitor, another to the contactor, and the remaining conductors complete the circuit returning to the power line.
Typical color patterns help identify each conductor. In many AC units, brown goes to the capacitor terminal, brown with white stripe links to the opposite capacitor side, black receives line voltage from the contactor, and white connects to the common return. Always confirm with the unit label because manufacturers sometimes swap color assignments.
The propeller drive inside the outdoor heat exchanger cabinet usually operates on 208–230 volts AC. Incorrect lead placement can cause reverse rotation, overheating, or immediate shutdown by the overload protector. Use insulated terminals and ensure each connector sits firmly on the capacitor or relay tab.
Before restoring power, measure resistance between the conductors using a multimeter. The lowest reading usually appears between common and run leads, while a higher reading appears between common and start. This quick test confirms that the windings remain intact and ready for operation once connected.
4 Wire Condenser Fan Motor Wiring Diagram With Capacitor and Terminal Connections
Connect the brown lead from the outdoor propeller drive to the capacitor terminal labeled FAN. This terminal sits on the dual run capacitor used in most residential air-conditioning units. The brown conductor carries the start winding connection that allows the rotor to begin turning.
Attach the brown lead with a white stripe to the opposite capacitor terminal marked C (common). This link completes the start circuit between the run capacitor and the internal winding set of the drive assembly.
The black conductor supplies line voltage. Route it to the output side of the contactor where 208–230 V appears once the thermostat activates cooling. This connection energizes the outdoor propeller drive at the same moment as the compressor.
The white conductor connects to the common return side of the power circuit. Many HVAC units terminate this lead at the contactor terminal shared with other neutral returns or directly to the common capacitor tab.

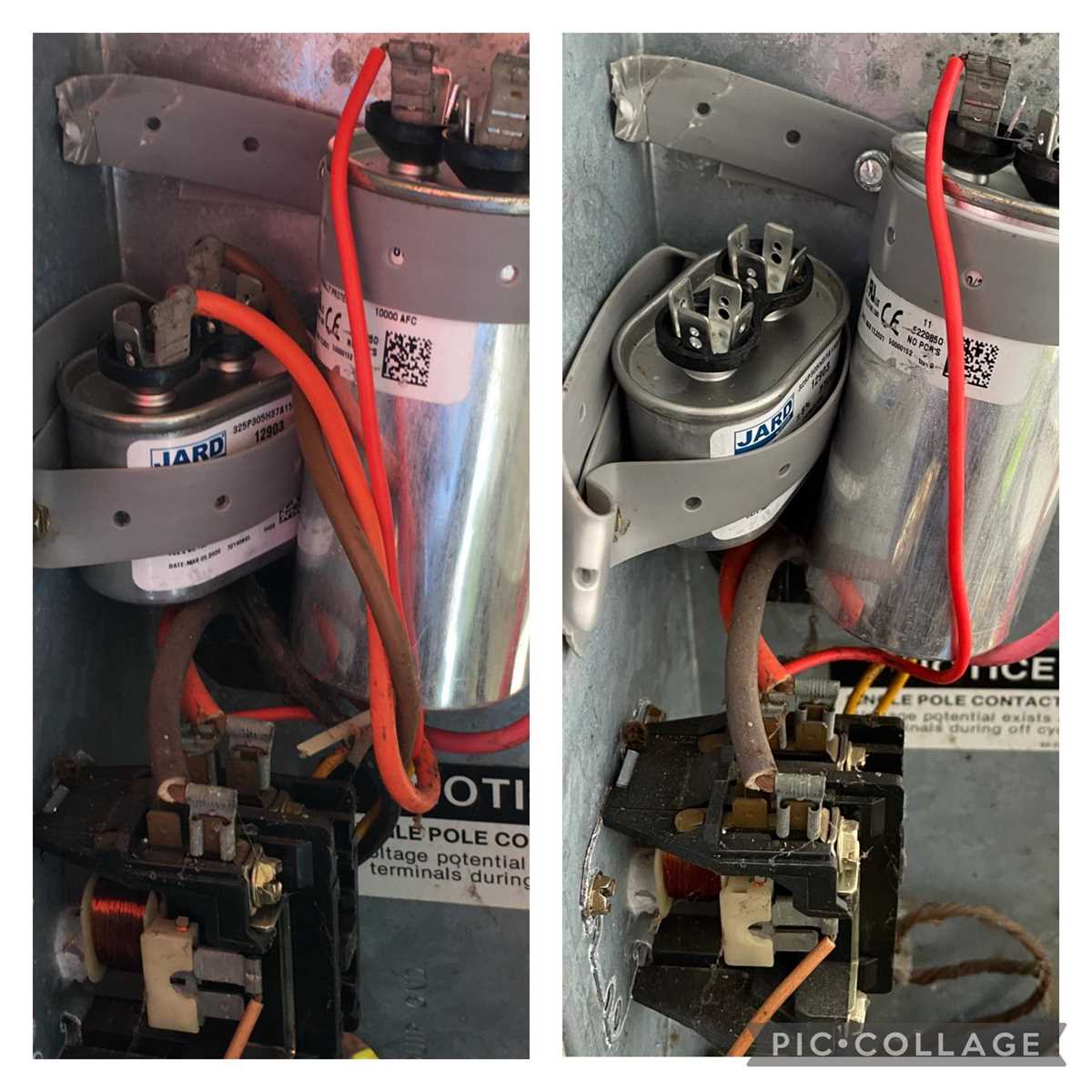

Typical terminal layout in a residential AC outdoor unit
The capacitor usually contains three tabs labeled C, FAN, and HERM. The propeller drive connects only to the FAN and C tabs. The compressor connects to HERM and C. Mixing these connections can damage the drive assembly or cause incorrect rotation.
Capacitor rating selection
Use the microfarad value printed on the equipment label. Many outdoor units require 5 µF, 7.5 µF, or 10 µF for the propeller drive. Voltage rating should match or exceed the original component, commonly 370 V or 440 V AC.
After completing connections, restore power and observe blade rotation through the top grille. Air must move upward through the coil and out of the cabinet. Reverse airflow indicates swapped start connections or an incorrect replacement drive.
Color Code Identification and Function of Each Wire in a 4 Wire Condenser Fan Motor
Identify each lead by its color before connecting anything. Most outdoor cooling units use a standard four-lead configuration where each conductor corresponds to a specific winding or power path inside the propeller drive.
Common color assignments used in HVAC outdoor units
- Black – line voltage from the contactor
- White – common return path
- Brown – capacitor connection for start winding
- Brown with white stripe – opposite capacitor terminal
The black lead carries the 208–230 V supply once the contactor closes. This connection energizes the run winding inside the drive assembly and allows the rotor to maintain rotation while the compressor operates.
The white conductor acts as the common return path. It usually terminates on the same electrical point shared by other neutral or common leads inside the outdoor cabinet.
The plain brown lead connects to the capacitor terminal marked FAN. This link forms part of the start winding circuit that creates the phase shift needed for the rotor to begin spinning.
The brown lead with a white stripe attaches to the capacitor terminal labeled C. Together with the plain brown conductor, it completes the capacitor circuit used during startup and normal operation.
Quick verification using a multimeter
- Measure resistance between the white lead and black lead.
- Check resistance between white and brown.
- Compare readings to identify run and start windings.
- The highest resistance normally appears between start and run conductors.
Always confirm color assignments using the label attached to the drive housing. Manufacturers occasionally alter color schemes, especially on universal replacement units used in HVAC service work.
