Ensure correct identification of each terminal before making any connections to prevent short circuits or motor failure. The four leads are typically color coded: red, black, yellow, and blue, corresponding to start, run, and common circuits. Use a multimeter to verify continuity and capacitance ratings before installation.
Trim insulation carefully to expose sufficient conductor length without exceeding recommended limits. Insert each conductor fully into the terminal slot and secure firmly using appropriate connectors to maintain consistent contact under vibration.
Check motor specifications for voltage and capacitance values. Incorrect matching can reduce torque, cause overheating, or damage windings. Ensure the selected component meets or exceeds the motor’s rated microfarads and voltage tolerance.
Perform initial testing by briefly energizing the motor under no-load conditions. Observe the rotation direction, noise, and temperature. Adjust connections if the motor fails to start smoothly or draws excessive current, following safety precautions to avoid shock hazards.
Identifying Terminals and Color Codes on a 4 Lead AC Motor Component

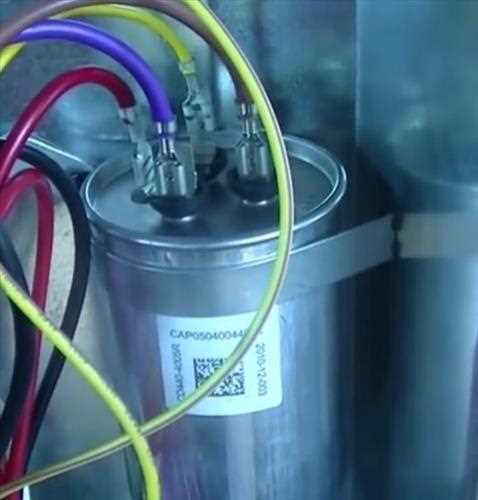

Begin by examining the top of the component for printed markings. Each terminal is usually labeled: “C” for common, “HERM” for compressor, “FAN” for fan motor, and “H” or “S” for start. Correct identification is critical to prevent misconnection and ensure optimal motor operation.
Match conductor colors to terminal functions. Standard color codes often follow this pattern:
| Color | Terminal Function |
|---|---|
| Black | Common |
| Red | Compressor/Start |
| Blue | Fan/Run |
| Yellow | Optional start or auxiliary |
Verify values printed on the housing such as microfarads and voltage rating. Ensure the component matches the motor specifications to prevent overheating or reduced efficiency. Any mismatch may lead to early failure.
Inspect terminals for corrosion or looseness before installation. Clean contacts and tighten connections to maintain consistent electrical continuity. A loose lead can result in motor humming, failure to start, or erratic operation.
Document terminal locations and colors with a photo or sketch before disconnecting any leads. This provides a reliable reference for reconnection and reduces the risk of errors during maintenance or replacement tasks.

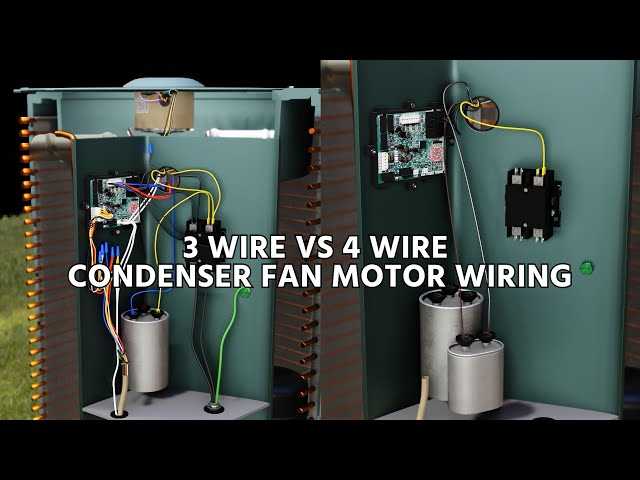

Step-by-Step Connection of AC Motor Component to 4 Lead Electrical Unit
Identify each terminal on the motor assembly and the component housing. Typically, markings indicate “C” for common, “FAN” for fan, “HERM” for compressor, and “S” for start. Confirming labels prevents misalignment that could impair startup and operation.
Separate the leads by function using color coding: black usually represents common, red for compressor or start, blue for fan, and yellow for auxiliary connections. Keep each lead organized to simplify the installation sequence.
Attach the common lead first. Connect the black conductor to the terminal labeled “C”. Ensure the connection is firm and the contact point is free of oxidation or debris to maintain stable current flow.
Connect the compressor or start terminal next. The red conductor should be secured to “HERM” or “S” according to the motor design. A loose connection here may prevent the motor from generating sufficient torque at startup.
Fasten the fan or run lead to the “FAN” terminal. This ensures the secondary winding receives proper voltage and current, maintaining balanced rotation and avoiding overheating during continuous operation.
Optional auxiliary leads such as yellow can be connected to additional start or phase terminals if the motor requires dual-function support. Verify voltage ratings and microfarad specifications to avoid overloading the circuit.
Inspect all connections visually and manually for tightness. Minor looseness can cause intermittent failures, humming noises, or reduced efficiency. Secure leads using suitable terminal connectors and ensure no bare conductors are exposed.
Perform a trial power-up after all connections are made. Observe startup behavior and motor operation. If the motor fails to start, recheck terminal assignments, lead integrity, and component ratings before attempting repeated operation.
Testing Function and Troubleshooting Common Connection Issues
Verify continuity and capacitance using a multimeter. Measure between the common, start, and run terminals to ensure the component meets the rated microfarad and ohm values. Deviations indicate potential failure or incorrect installation.
Observe motor startup behavior. If the motor hums without rotation or fails to reach operating speed, inspect each lead connection. Misassigned terminals often cause insufficient torque or overheating of the windings.
Step-by-Step Troubleshooting
- Check terminal labels against the motor specification.
- Confirm conductor colors match recommended assignments.
- Test for loose or corroded contacts that may impede current flow.
- Ensure no short circuits exist between start and run sections.
- Replace faulty components if measured capacitance is outside 5% of the rated value.
Perform a functional load test by running the motor under normal operating conditions. Monitor for unusual vibrations, noises, or temperature rise at the component terminals. Any anomalies suggest an adjustment or component replacement is required.
Document all readings for future maintenance. Keeping track of measured capacitance, terminal continuity, and voltage drop can help identify trends leading to premature component wear and allow preventive corrections before failure occurs.
