Always start by turning off the main breaker before handling any electrical connections. Confirm that the power lines are de-energized using a reliable voltage tester to prevent hazards.
Label each conductor based on its color and function to avoid confusion during assembly. Typically, three colored leads represent the phases and a green or yellow-green lead serves as the grounding path.
Follow precise torque specifications when securing terminals to maintain a stable contact and reduce the risk of overheating. Over-tightening can damage the contacts, while under-tightening can cause arcing.
Check continuity and phase sequence after completing connections using a multimeter or phase rotation tester. Correct sequence ensures that motors and industrial equipment operate safely and smoothly.

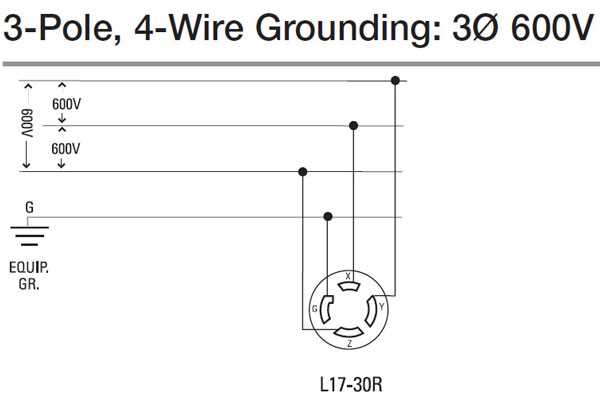

4 Wire 3 Phase Connections Explained
Begin by identifying each conductor based on color coding. Standard practice assigns brown, black, and gray to the three active lines, while green-yellow marks the grounding lead. Accurate identification prevents incorrect connections that could damage equipment.
Secure each terminal with proper torque to maintain stable electrical contact. Use a calibrated screwdriver or torque wrench to tighten clamps to the manufacturer’s specifications, typically between 2.5 and 3.0 Nm for small industrial connectors.
Verify phase rotation and continuity before energizing the circuit. A phase rotation tester or multimeter confirms that motors will run in the correct direction and that no short circuits exist between conductors.
Regular inspection and maintenance reduce failures. Check for discoloration, loose contacts, or corrosion periodically. Replace any worn components promptly to prevent overheating, arcing, or equipment downtime.
Identifying Each Conductor and Its Function in a 3 Phase Connector
Always label each lead before connecting. Assign colors according to standard practice: brown, black, and gray for the active phases, green-yellow for the safety ground. Misidentification can lead to equipment failure or electrical hazards.
Phase A, Phase B, and Phase C serve distinct roles. Each carries an alternating current with a 120-degree offset, providing balanced power to motors and heavy machinery. Maintaining correct order prevents reverse rotation or operational issues.
- Phase A: Often brown, first in the rotation sequence.
- Phase B: Typically black, second in rotation.
- Phase C: Usually gray, completes the sequence.
The protective conductor ensures safety. The green-yellow lead connects to the grounding system, directing fault currents safely to the earth and reducing the risk of electric shock.
Use a multimeter to confirm each path. Measure continuity and insulation resistance to detect any unintended connections. Faulty leads should be replaced immediately to maintain system integrity.
Check the alignment of phases before energizing equipment. Use a phase rotation tester to verify the correct sequence. Motors connected in the wrong order may run backward, causing mechanical strain or damage.
- Inspect color codes for wear or fading.
- Verify all terminals are securely fastened.
- Ensure the protective lead is connected to the chassis or earth bar.
- Confirm no contact between active paths and ground before energizing.
Periodic inspection is recommended. Look for signs of overheating, corrosion, or loose connections. Preventive checks reduce downtime and maintain safe operation over time.
