Identify each wire before making any connections. Typically, two hot wires carry 120 volts each, one neutral completes the return path, and the green or bare wire serves as the ground. Confirm their function with a voltage tester.
Secure connections at the terminal block using the correct screws for each lead. Tighten firmly but avoid stripping the threads, as loose connections can cause arcing or intermittent power issues.
Route wires to prevent crossing or pinching inside the appliance cavity. Keeping them organized reduces the risk of short circuits and allows for easier inspection in the future.
Test the system before full operation. Use a multimeter to check voltage between hot wires and between each hot and neutral or ground. Proper readings confirm that each lead is correctly attached and grounded for safe use.
Four Wire Clothes Appliance Connection
Start by identifying each lead using a voltage tester. Two hot wires deliver 120 volts each, the neutral completes the circuit, and the green or bare wire ensures proper grounding. Confirming these before attachment prevents electrical hazards.
Attach the hot wires to the terminal block at separate lugs. Ensure screws are tight without stripping threads, as loose connections can cause sparking or inconsistent operation. Test each lead for firm attachment before proceeding.
Connect the neutral wire to its designated terminal. This connection completes the return path for electricity. Avoid crossing it with hot or ground leads to prevent shorts and maintain clear circuit paths inside the appliance.

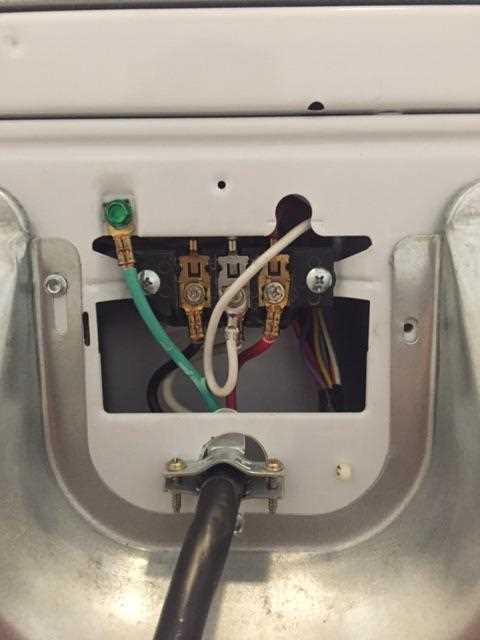

Secure the grounding lead to the green screw on the appliance chassis. This provides a direct path to the earth and protects against shock in case of a fault. Verify continuity from the ground wire to the frame with a multimeter before closing the access panel.
After all leads are attached, test voltage across the hot wires and between hot and neutral or ground. Proper readings confirm that each lead is correctly positioned and that the appliance is ready for safe operation without risk of electrical issues.

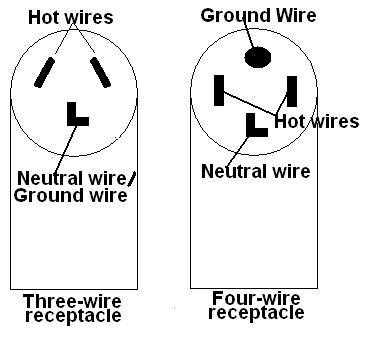

Identifying Each Wire and Its Function
Use a voltage tester to distinguish hot leads. These wires usually carry 120 volts each and are often colored red and black. Confirming their function prevents incorrect connections that could damage the appliance or create safety hazards.
The neutral wire completes the electrical circuit. It is typically white and must connect directly to the designated terminal to ensure proper current return. Avoid swapping it with hot or ground leads to maintain safe operation.
Locate the grounding wire, usually green or bare copper. This lead provides a direct path to the appliance frame and protects against electric shock. Verify continuity to the chassis before closing the access panel.
Check for color codes and labeling along each lead. Some installations may use alternative colors, so tracing each wire from the power source to the terminal block is necessary to confirm function.
Inspect the insulation on each lead. Damaged or frayed insulation can cause shorts between hot, neutral, or ground wires. Replace any compromised wire before making connections.
Measure voltage between hot wires and between hot and neutral or ground to verify correct identification. Expected readings are 240 volts across hot wires and 120 volts from hot to neutral or ground.
Mark each lead clearly with tape or a label if color codes are ambiguous. This prevents confusion during assembly and simplifies troubleshooting in the future.
Double-check that all leads are free from tension or sharp bends. Secure wires to prevent movement inside the appliance cavity, reducing the risk of abrasion or accidental disconnection during operation.
