Match each lead to its corresponding function to ensure lights and signals operate correctly. Use color codes: white for ground, brown for tail lights, yellow for left turn, and green for right turn.
Inspect the receptacle and cord ends for corrosion or bent contacts before installation. Clean terminals with a wire brush and apply dielectric grease to prevent oxidation and maintain conductivity.
Secure connections firmly with screws or clamps to avoid loose contacts during towing. Loose leads can cause flickering lights, intermittent signals, or complete circuit failure.
Test the system with a multimeter or a test lamp after connecting all leads. Activate turn signals, brake lights, and running lights individually to verify correct operation.
Use protective covers on the connector when not in use to prevent dirt, moisture, and debris from entering. Regular inspections extend the lifespan of the connector and maintain safe operation on the road.
4 Conductor Connector Setup

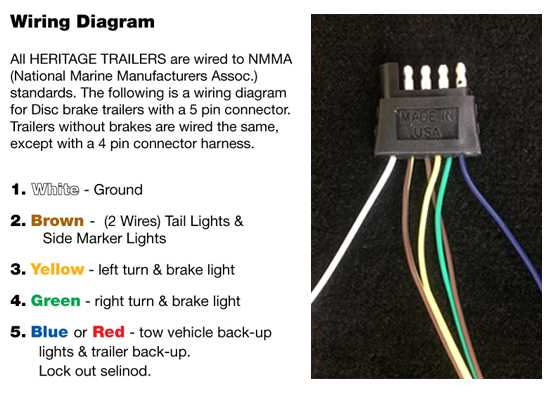

Match each conductor to its specific function for proper signal and lighting operation. Standard color codes are white for ground, brown for running lights, yellow for left turn, and green for right turn. Secure each lead with a screw or clamp to prevent intermittent connections during movement.
Test all circuits before use to verify correct operation. Use a multimeter or a test lamp to confirm running lights, brake lights, and turn signals respond correctly. Apply dielectric grease to terminals to reduce corrosion and extend the service life of the connector.
Identifying Each Conductor and Its Function
Assign each lead according to standard colors to prevent signal errors. White serves as the ground connection, brown powers running or tail lights, yellow activates left turn signals, and green handles right turn indicators.
Double-check connections with a multimeter before finalizing. Incorrect placement can cause lights to fail, turn signals to blink incorrectly, or create short circuits that may damage the connector or the towing vehicle’s electrical system.
Label and secure each lead after verification. Use clamps or screws to hold terminals firmly and apply a thin layer of dielectric grease to prevent corrosion and maintain consistent conductivity during wet or dusty conditions.
