Confirm power is off at the breaker before handling any terminals. Testing with a voltage detector ensures safe handling of the conductors and prevents short circuits.
Label each conductor using color-coded tags or numbers to distinguish the traveler paths from the common feed. This step reduces confusion during installation and prevents incorrect connections that could cause flickering or non-responsive operation.
Install the control units at consistent heights in each room, leaving about 12 inches from the floor to the handle for easy access. Ensure the mounting boxes are flush with the wall and fasteners are tightened to avoid movement that can loosen terminals over time.
Test each circuit after connection by engaging each handle in all positions. Verify that power flows correctly and that the voltage drop across terminals does not exceed 0.2 volts, ensuring reliable operation across multiple points.
3 Position Control Guide for Home Circuits
Start by identifying the common terminal on each unit. This terminal carries the main feed and must be connected to the line conductor to ensure proper current flow through the traveler paths.
Use the following steps to connect the traveler conductors safely:
- Strip insulation to 1/2 inch and attach terminals with secure crimping.
- Label each traveler with numbered tags to avoid confusion between the upper and lower units.
- Ensure conductors are routed without tight bends to reduce stress on connections.
- Verify all screws are torqued between 40–60 inch-pounds to maintain stable contact.
Check continuity using a multimeter by toggling each handle in both positions. The reading should show a closed circuit when the path is engaged and open when disengaged, confirming proper connection.
Test the complete installation by energizing the circuit and operating each handle in all positions. Observe that all controlled points respond correctly, and inspect for any loose terminals or intermittent connections that could affect reliability.

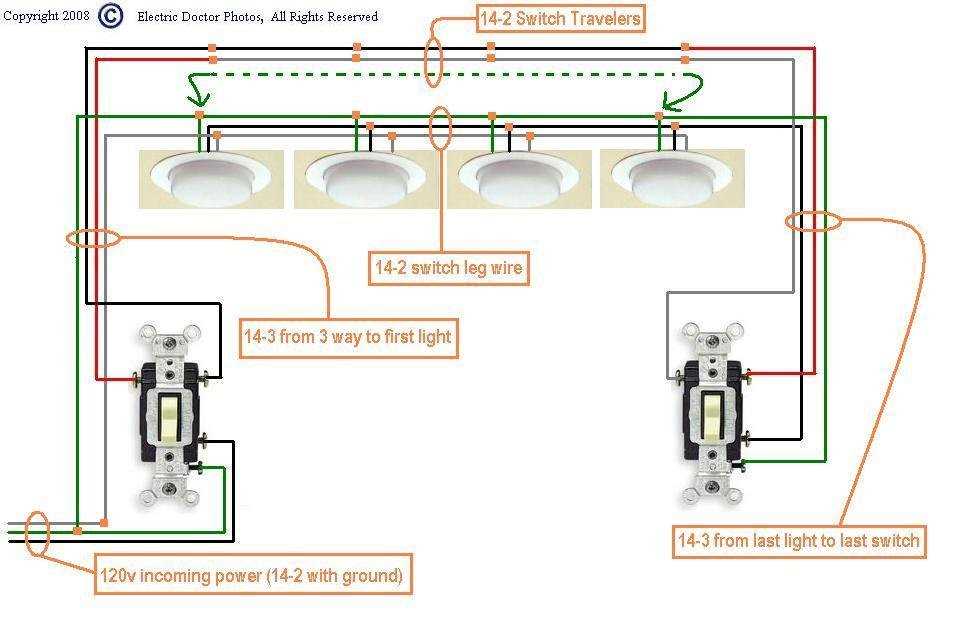

Identifying Terminals and Traveler Connections
Label the common terminal on each control unit before making any connections. This terminal handles the main current and determines how the traveler paths engage, so accurate identification is critical for proper operation.
Inspect the smaller terminals that carry the alternate paths. These are usually positioned opposite the common post and accept thinner conductors. Use a continuity tester to confirm which terminals correspond to each control point before final attachment.
Use insulated tags or colored sleeves to mark each traveler conductor. Maintain consistent labeling across all units to prevent reversing connections, which can cause flickering or failure to operate from one or more points.
Verify engagement by manually toggling each handle and measuring continuity between the common and traveler terminals. Each path should show a closed circuit when activated and an open circuit when off, ensuring accurate identification and reliable operation.
