To ensure safety and functionality when connecting a three-wire electrical outlet, it’s important to follow a clear process for correctly identifying and attaching each wire. The setup involves a live (hot), neutral, and ground wire that must be positioned in their proper places within the outlet. Mistakes during this step can lead to electrical hazards such as short circuits or shocks. Start by ensuring that the power is completely turned off at the breaker panel before proceeding with any work.
The live wire typically connects to the brass screw, the neutral wire to the silver screw, and the ground wire to the green screw. Always double-check that the wires are securely attached, with no exposed metal that could cause short circuits. For the ground wire, it is especially important to ensure a solid connection as it provides a direct path for electricity in the event of a fault, reducing the risk of electrical shock.
During installation, pay attention to the orientation of the outlet. The correct alignment ensures that the ground wire is properly attached, which is vital for the overall safety of the electrical circuit. It is also recommended to inspect the wires for wear or damage before use. Replacing old or frayed wires will help maintain a secure and reliable connection.
3 Prong Wiring Diagram Guide
Ensure that the power is completely off before beginning any electrical work. This can be verified by testing the circuit with a voltage tester. Working with live electrical circuits is dangerous, so safety should be your top priority.

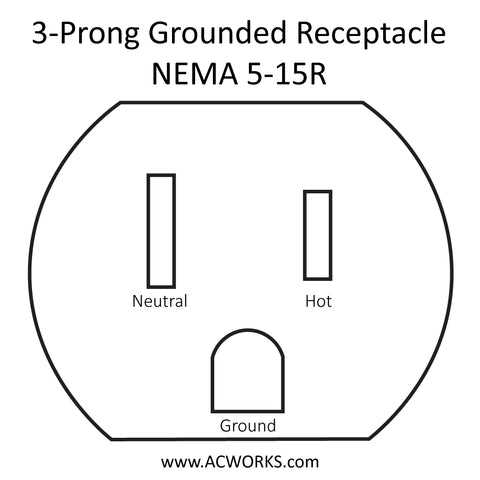

The setup for a standard three-wire electrical outlet involves three distinct connections. The first is the hot wire, typically black or red, which carries the electrical current. The second is the neutral wire, usually white, that completes the circuit. Finally, the ground wire, usually green or bare copper, is responsible for providing a safe path to the ground in case of electrical faults.
Start by attaching the hot wire to the brass terminal. This is the most important connection, as it supplies the electricity to your devices. Make sure the wire is tightly secured to the terminal without any loose strands that could cause short circuits or electrical sparks.
Next, connect the neutral wire to the silver terminal. This completes the circuit by providing a return path for the current. The connection should be firm and without any exposed metal to prevent short circuits.
For the ground connection, attach the ground wire to the green terminal. The ground wire plays a critical role in protecting you and your equipment from electrical shock by directing any stray electricity safely to the ground.
After making all the connections, double-check that each wire is securely fastened and that no bare wire is exposed. Any exposed wiring can lead to shorts or even fires. It’s also important to check that the outlet is properly aligned with the wall box to ensure that it sits flush and securely.
Finally, turn the power back on and test the outlet with a voltage tester. If everything is connected correctly, the outlet should be functional and safe to use. If there is any doubt, it’s always best to consult a licensed electrician to ensure the job is done safely and to code.
Understanding the Components of a 3 Prong Plug and Socket
The first component to consider is the live wire, typically marked in black or red. This wire carries the electrical current from the power source to your device. It is connected to the brass terminal in the outlet or plug, and any loose connection here can cause sparks or a potential electrical hazard.
The second wire, the neutral wire, is usually white. It provides the return path for the current. The neutral connection should always be attached to the silver screw on the outlet or plug, ensuring that the circuit remains complete when the current flows through the device and back to the source.
The ground wire, typically green or bare, serves as a safety measure. This wire is connected to the green terminal. It directs excess current safely to the ground in case of a fault, protecting both the device and the user from electrical shocks or fires.
Finally, the socket or plug itself has specific terminals for each wire. Properly attaching each wire to its corresponding terminal is crucial for the safety and functionality of the device. When installing or replacing a three-wire system, always ensure the connections are tight and secure to avoid any issues during operation.
