Ensure correct orientation of each conductor before making any connections. Identify the hot, neutral, and ground lines using a multimeter to avoid short circuits or overloads. Label each lead clearly for repeatable installations.
Use insulated terminals and torque screws to secure connections. A loose contact can generate heat and cause malfunction. Confirm that the connector body seats firmly in the receptacle, preventing accidental disconnection during operation.
Test the assembled unit under low load initially. Measure voltage continuity across all paths and verify the connector supports the rated amperage. For repeated setups, maintain a reference chart of conductor positions to streamline future installations.
3 Conductor Locking Connector Connection and Setup
Align each terminal with the corresponding slot in the mating socket before tightening. Verify the hot, neutral, and ground paths using a continuity tester. Use a torque driver on terminal screws to prevent loose connections that could generate heat or intermittent contact.
For consistent performance, check that the assembly sits flush and the body rotates freely into the engagement position. Use a multimeter to confirm proper voltage delivery under low load. Maintain a checklist of terminal positions and labeling to streamline repeated installations and avoid misconnection errors.
Identifying Each Conductor and Its Function
Begin by labeling each line according to voltage and polarity. The live lead typically carries current from the source and should be marked clearly. Confirm its path with a multimeter to prevent misconnection that can damage connected devices or create shock hazards.
The neutral line returns current to the panel and must maintain continuity without resistance. Test continuity from the source to the end point to ensure no breaks or corrosion are present, which could cause erratic operation or overheating under load.
Ground conductors provide a safety path and must be securely bonded. Inspect for proper termination and continuity back to the chassis or ground bus. Loose connections can bypass safety systems and allow stray voltage to appear on enclosures.

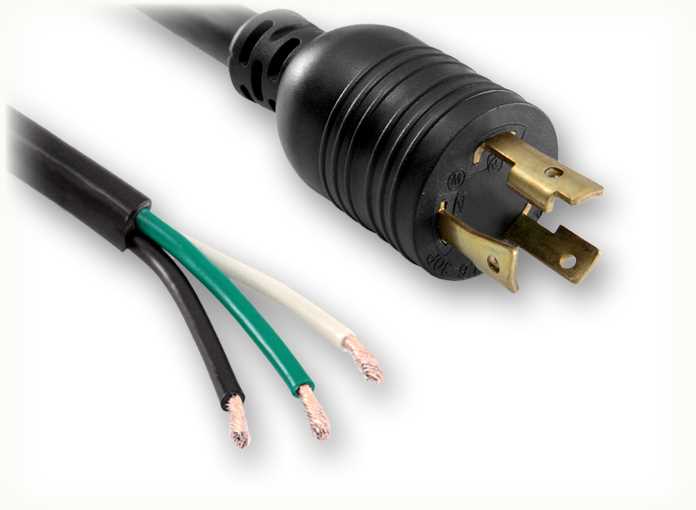

Color coding simplifies identification during repeated installations. Common standards assign black or red for live, white for neutral, and green or bare copper for ground. Using these markers prevents cross-connection and improves troubleshooting efficiency when inspecting the setup in the field.
After installation, verify each conductor under operational load. Use a clamp meter or voltage tester to ensure live and neutral deliver expected voltage while the ground maintains zero potential relative to earth. Regular inspection reduces the risk of shorts, overheating, and service interruptions.
