Connect the hot wire to the brass-colored terminal to ensure proper current flow to devices. This prevents reverse polarity that can damage sensitive electronics.
Attach the neutral wire to the silver-colored terminal and confirm it matches the incoming neutral from your circuit panel. A secure connection reduces the risk of sparks and intermittent operation.
Ground the green or bare conductor to the designated terminal to protect against electrical faults. Proper grounding redirects stray current safely and prevents shocks.
Use a screwdriver to tighten all terminal screws firmly but avoid over-tightening which can strip threads or damage connectors. Check that no insulation is pinched under screws.
Test the receptacle before full load with a voltage tester or multimeter. Ensure all connections provide stable voltage and continuity to prevent overheating and appliance malfunction.

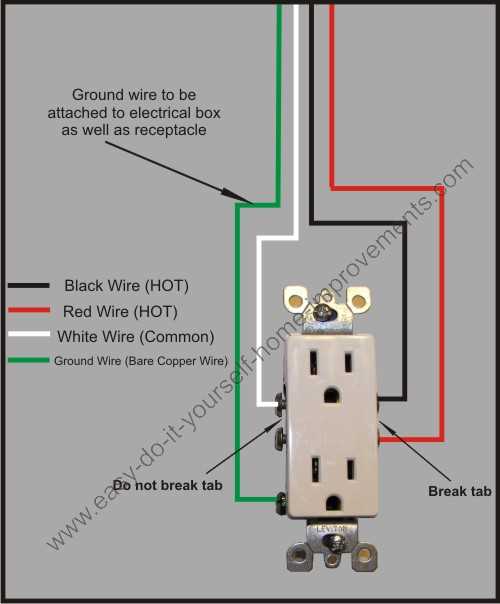

3 Terminal Receptacle Connections
Connect the live conductor to the brass terminal and ensure the wire is fully inserted under the screw before tightening. This maintains proper current flow and prevents overheating or arcing during use.
Attach the neutral conductor to the silver terminal and the ground to the green terminal. Double-check that all screws are secure and that no insulation is trapped beneath them. Testing with a multimeter after installation confirms continuity and safe operation for all connected devices.
Identifying Hot Neutral and Ground Terminals
Locate the brass-colored terminal for the live conductor. This terminal carries the current from the power source and must connect to the hot wire to ensure devices operate correctly.
Identify the silver-colored terminal for the return conductor. Connecting the neutral wire here completes the circuit and stabilizes voltage across the receptacle.
Find the green-colored terminal for grounding. This connection redirects any stray current safely to the ground, preventing shocks and protecting sensitive electronics.
Use clear labeling or a voltage tester to confirm each terminal before making connections. Brass is always hot, silver is neutral, and green is ground in standard configurations.
Check screw orientation and wire insertion to ensure full contact. Loose connections on any terminal can cause sparks or intermittent power delivery.
After securing each conductor, test with a continuity meter to verify proper flow and grounding. Correct identification and secure attachment of all three terminals prevent electrical hazards and maintain stable operation.
